JOINT PROTECTORS: TPL and TP.
(only for pools of 132 cm)

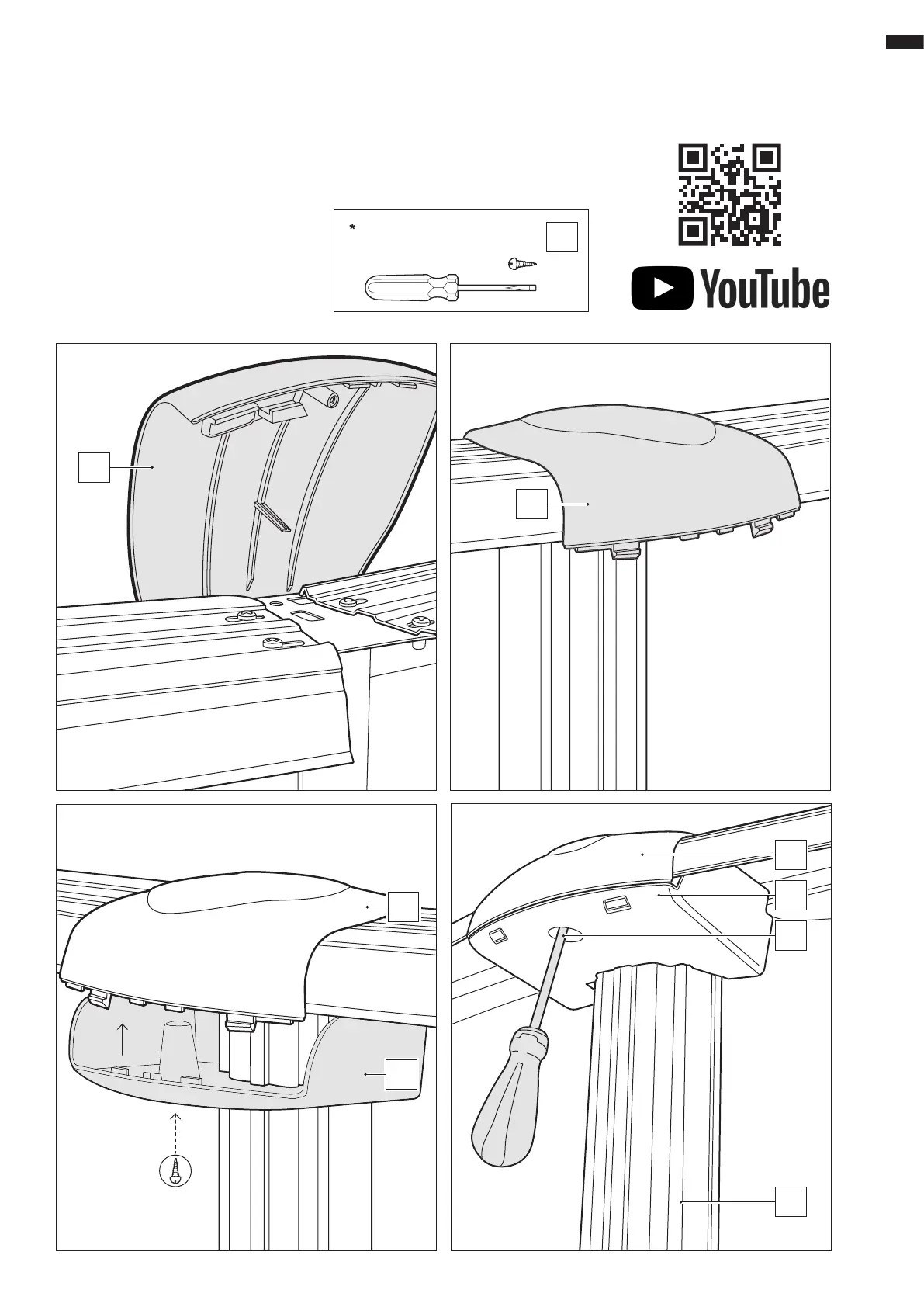

These pieces are to be fitted joining and protect-
ing the trim pieces. Joint protectors are made up
of 2 elements: Strim Piece protector (TPL) and
Vertical Section protector (TP). First, the back
side of TPL has to be fixed to the back side of
the 2 strim pieces. Then, it has to be tightened
to the front side of the pool, fixing the TPL verge
to the PU1 hole. Now, fix TP to TPL by the lower
side using a screw T1 to join them. This process
is to be repeated for all the joint protectors. AT-
TENTION: TP notch has to be removed to fix PV2
in the straight areas of the pool.
