4.18
K
TA
O
C
A
A
M
S
TS
J
M
Z
1º 10º 3º
8º
6º
5º
7º
4º 9º 2º
TS
S
15 cm
J
4 cm
K
M
Z
EN
installation

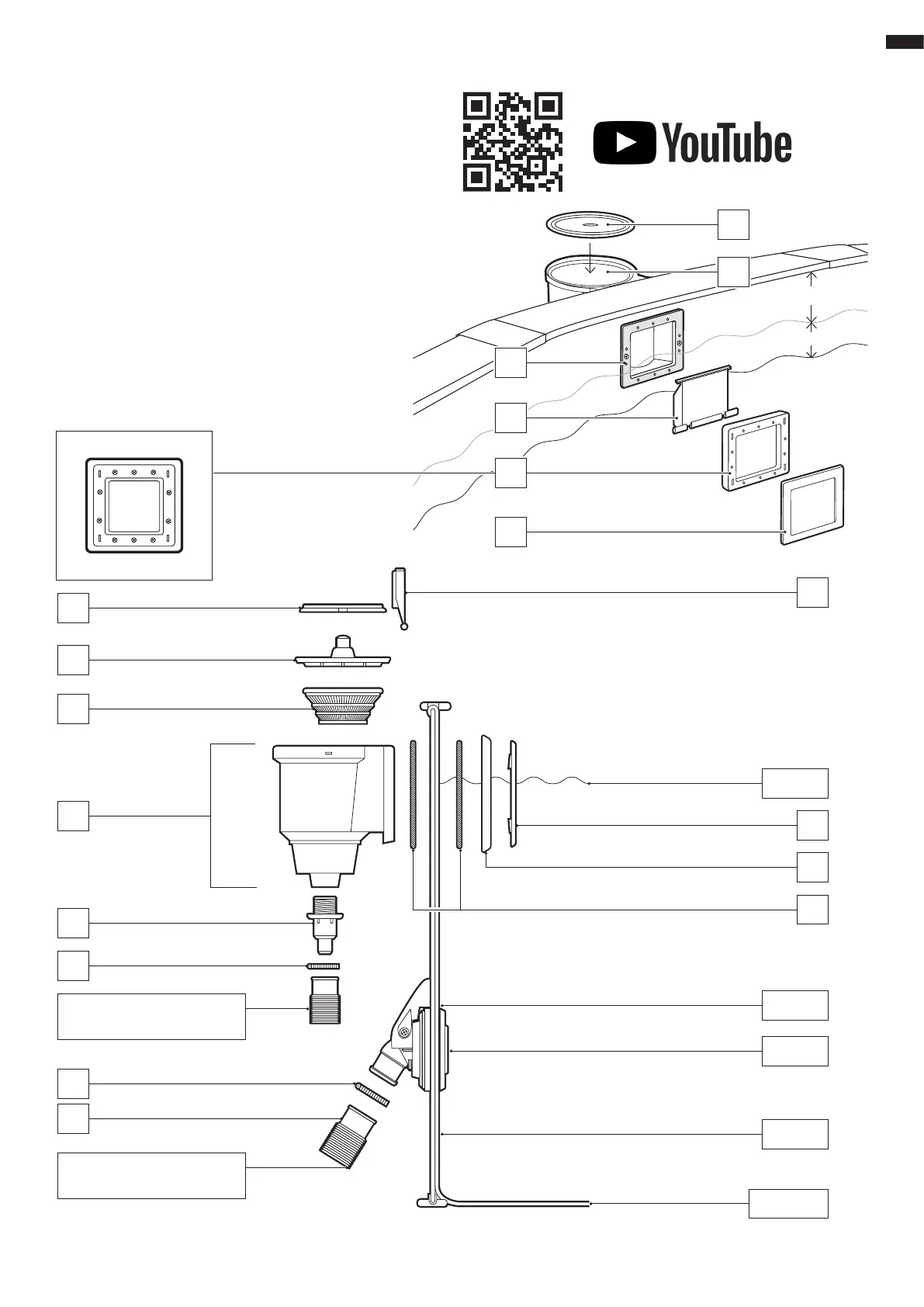

FITTING THE SKIMMER
FRAME (M):
Ensure that all holes are lined
up properly (seal to wall plate
perforation to skimmer).
Screw 10 remaining screws
loosely through the frame to
check that the fit is correct.
Then tighten the screws a lit-
tle more one by one in the or-
der indicated. Finally, tighten
them fully in the same order.
LAST DETAILS: Pressure fit
the trim part of the skimmer
frame (Z). To finish, introduce
the flap (K) through the rec-
tangular gap (delicately press
the two ends and fit the pro-
trusions). Place the basket
(O) into the skimmer and the
skimmer body cover (TS).
FINISH FILLING THE POOL
UP TO HALFWAY UP THE
SIMMER DOOR, (10-15 cm be-
low the pool edge) SO WATER
ENTERS INTO IT AND FILLS
THE FILTERING SYSTEM.
WATER
JOINT
LINER PVC
GRILLE
SHEET
FILTER INLET PIPE
FILTER INLET PIPE
27
