GRE Lavender - SKIMMER

104
EN

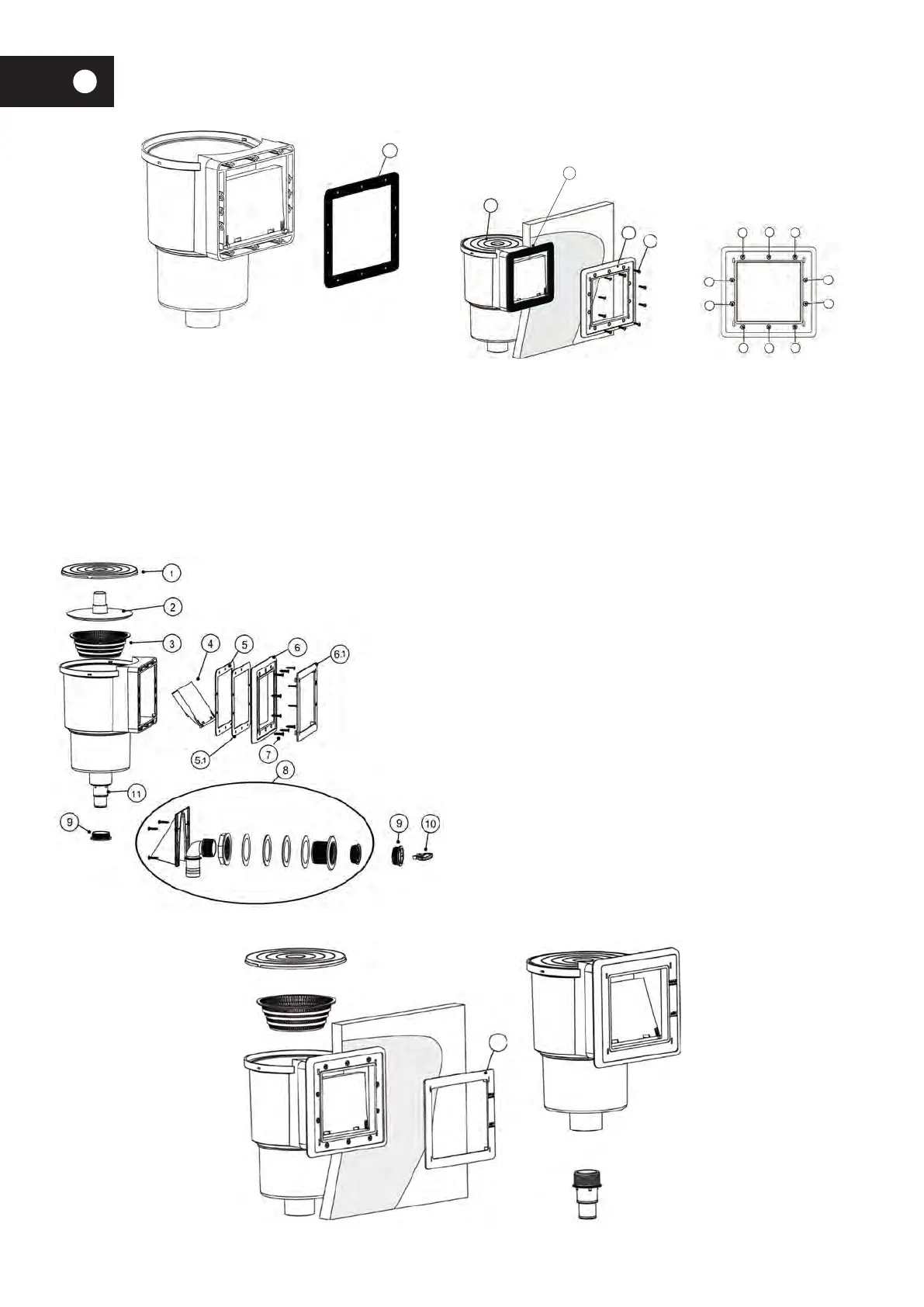

SKIMMER
• Before continuing, make sure that the skimmer flap is well positioned.
• Mark the position of the fixing screws on the liner with a felt-tip pen.
• (B) Position the second square flat seal (5.1) and the flange (6) against the liner, aligning the holes with the position marks of the screws.
• Fix the flange (6) on the liner with 10 screws (7) starting at the bottom(C). The pressure of fixing points on the liner should be constant, (fixing in cross
• Screw slightly at first to make sure they fit properly, then fully tighten them, following the order indicated in (C)
• Press on the trim cover No. 6.1, taking care to place the level mark in the correct position (D).
• Use Teflon to bolt the hose adapter (11) to the lower hole of the skimmer body, and then connect the suction hose and tighten with a clamp. (E)
• Cut the liner with a cutter from the inside of the skimmer.
• Now you should install the filter.
1- Skimmer cover
2- Suction cover
3- Basket
4- Gate unit
5- Adhesive joint
6- Flange 6.1- with trim cover
7- Bag of screws (2 DIN 7981 4,2X16 and 10DIN 7983 4,8X25)
8- Retum valve
9- Winter storage plug
10- Key
11- Hose adapter
5
A B C
9
8
6
4
2 1 3
5
7
10
1
6
7
5.1
6.1
D E
