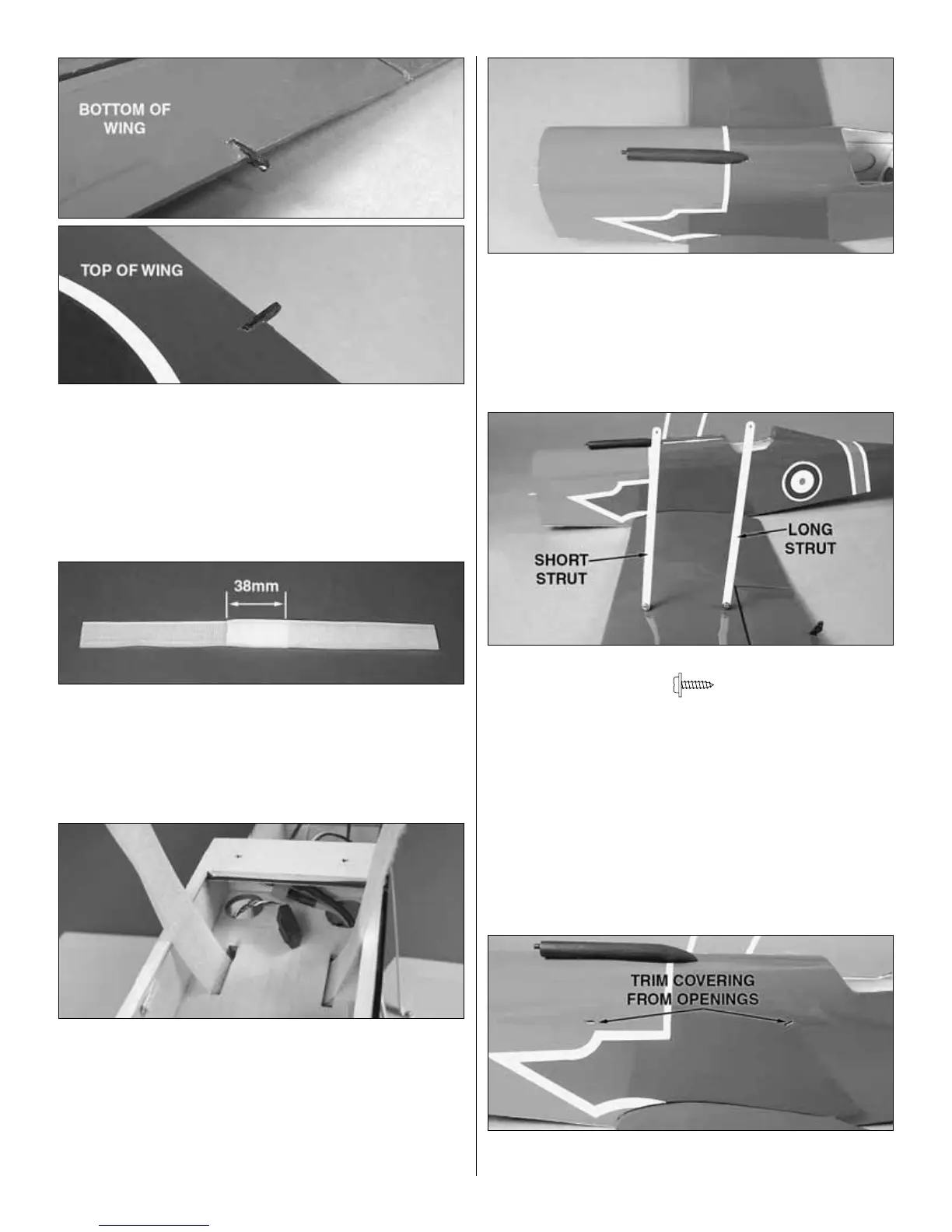

❏ 3.Trim the covering from over the four slots at the aft edge
of the ailerons on the top and bottom wing. Insert a straight
control horn in each slot. The control horn should be
centered on the TE of the aileron. Secure the control horns
with thin CA.
❏ 4. Take the two pieces of hook and loop material and
overlap them by 38mm.
❏ 5. Route the hook and loop material through one of the
slots in the battery compartment and back out the other slot.
❏ 6. Bolt the bottom wing back on the fuselage. Make sure
the ailerons servos are plugged into the receiver.
❏ 7. Use CA to glue the machine gun to the top of the fuselage.
❏ 8.The S.E.5a EP ARF comes with two long and two short
outer wing struts. Attach the short struts to the forward strut
mounts of the bottom wing using 2 x 8mm self-tapping
washer head screws. Attach the long struts to the aft strut
mounts. Do not tighten the wing struts completely.
❏ 9. Trim the covering from over the openings for the
cabanes, on both sides of the fuselage.
13
