U-Match Series DC Inverter Service Manual
50

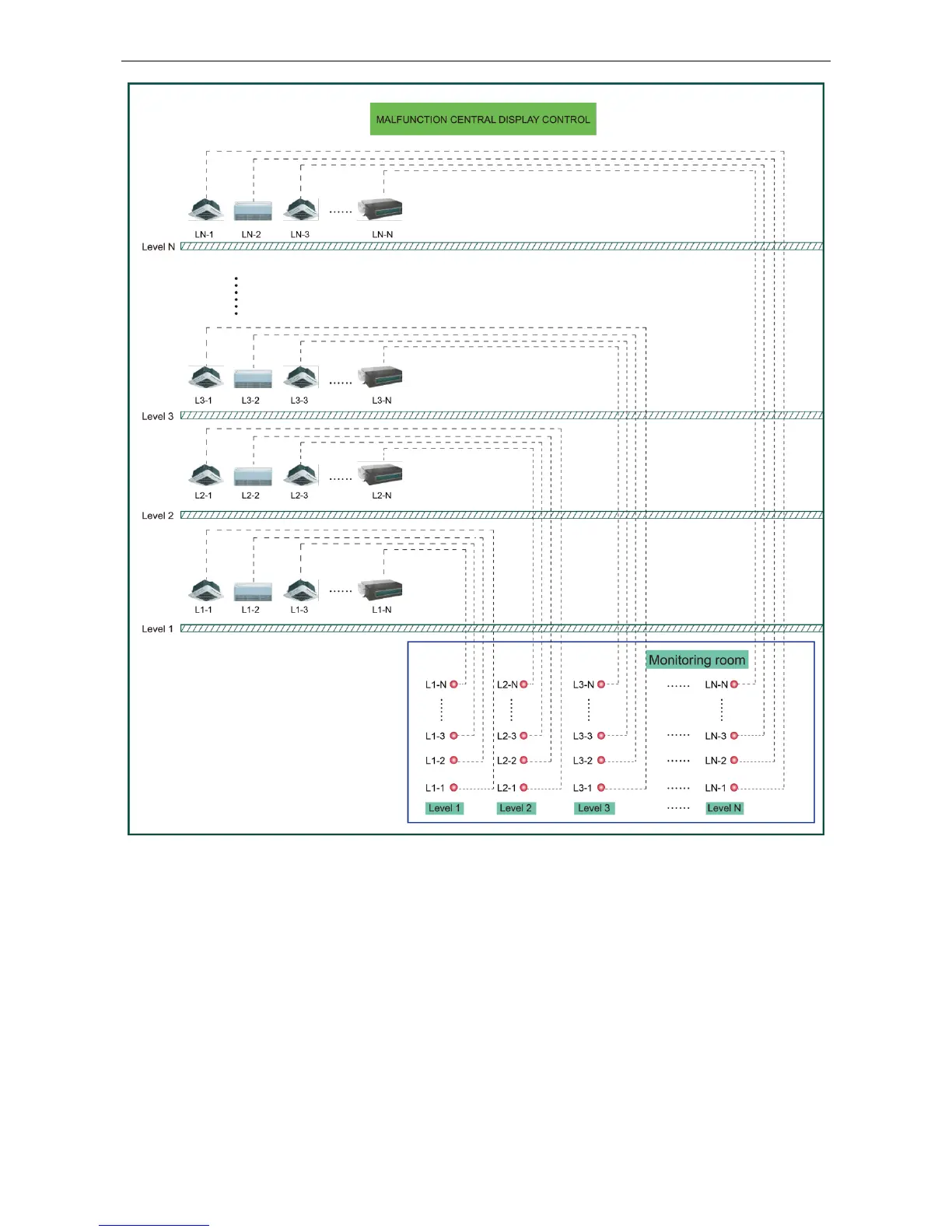

Figure 2-7-15 Malfunction output
(3) Setting method:
Do not need to set this function
Notes:
①
The interface voltage should be 220V AC intense current;
②
If malfunction light is connected, please make sure its power is not too big (it should be within
10W), otherwise, the relay on mainboard will be burnt.
