Gree GMV5 Series Service Manual

GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
308
Power input
Gateway
Running
Alarm Power
Address
Function
296mm
177mm
56mm
98.5mm

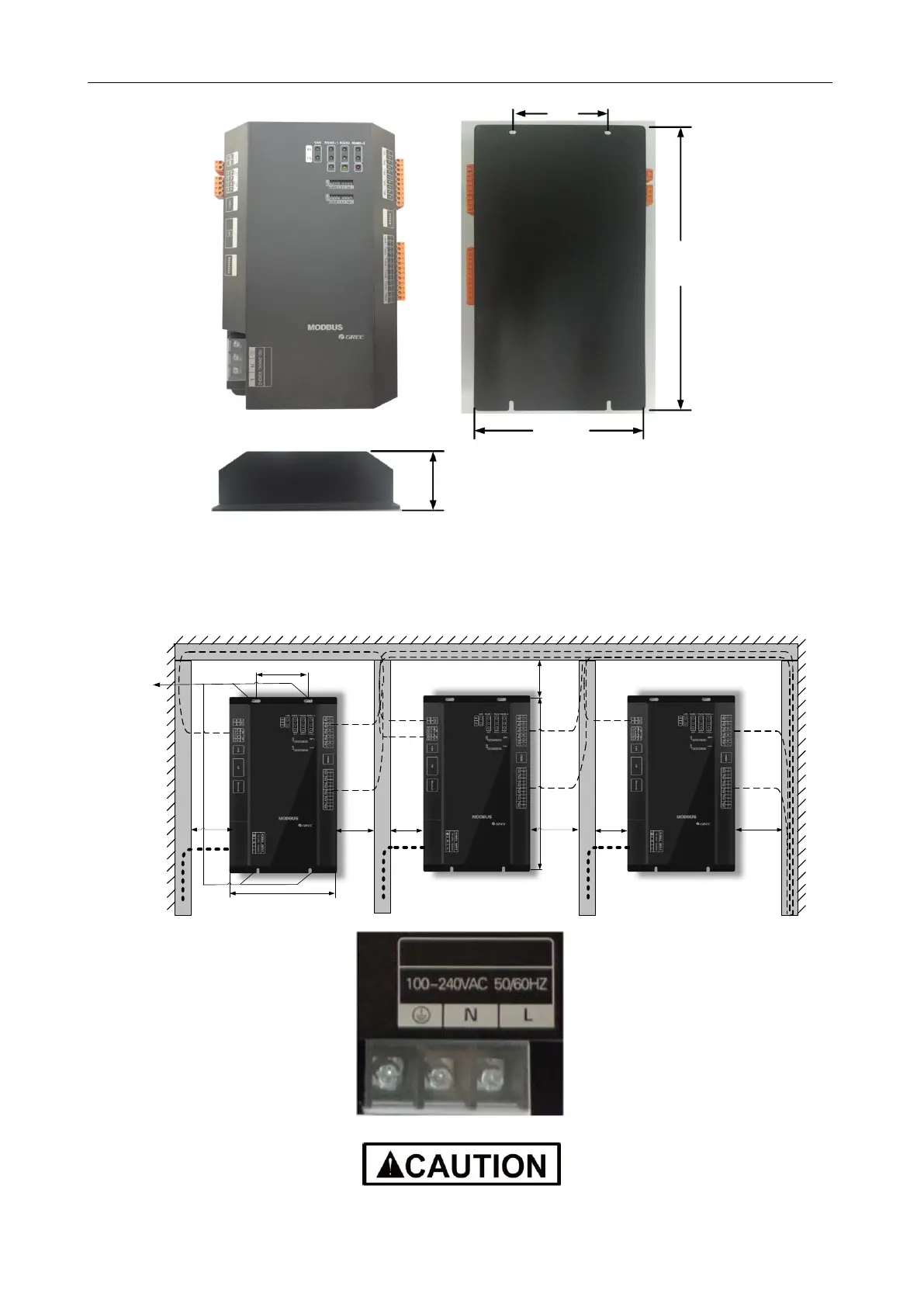

Length x Width x Height: 296 x 177 x 56 (mm) /11-5/8 x 7 x 2-1/4(inch)
The Modbus gateway should be located inside the electric cabinet, hung up with the front side
facing upwards and fixed with four bolts. See the following figure for the required clearance (only for
reference).
Fixed with
four bolts
296mm
177mm
Hung up with
the front side
facing upward
120mm 120mm 120mm
120mm
50mm
Cable trough
120mm 120mm
Cable trough
98.5mm
Electric cabinet
Gateway
Gateway
Gateway
Power input
