45
Maintenance
Service Manual
In order to improve cooling efciency,the heat discharge pipe should be as short as pssible and at withouthout curve to ensure smooth
heat discharge.
●The length of the heat discharge pipe is less than 1m. It is recommended to use it with shortest length.
●When installing,heat discharge pipe should be as at as possible. Don’t prolong the pipe or connect it with other heat discharge pipe.

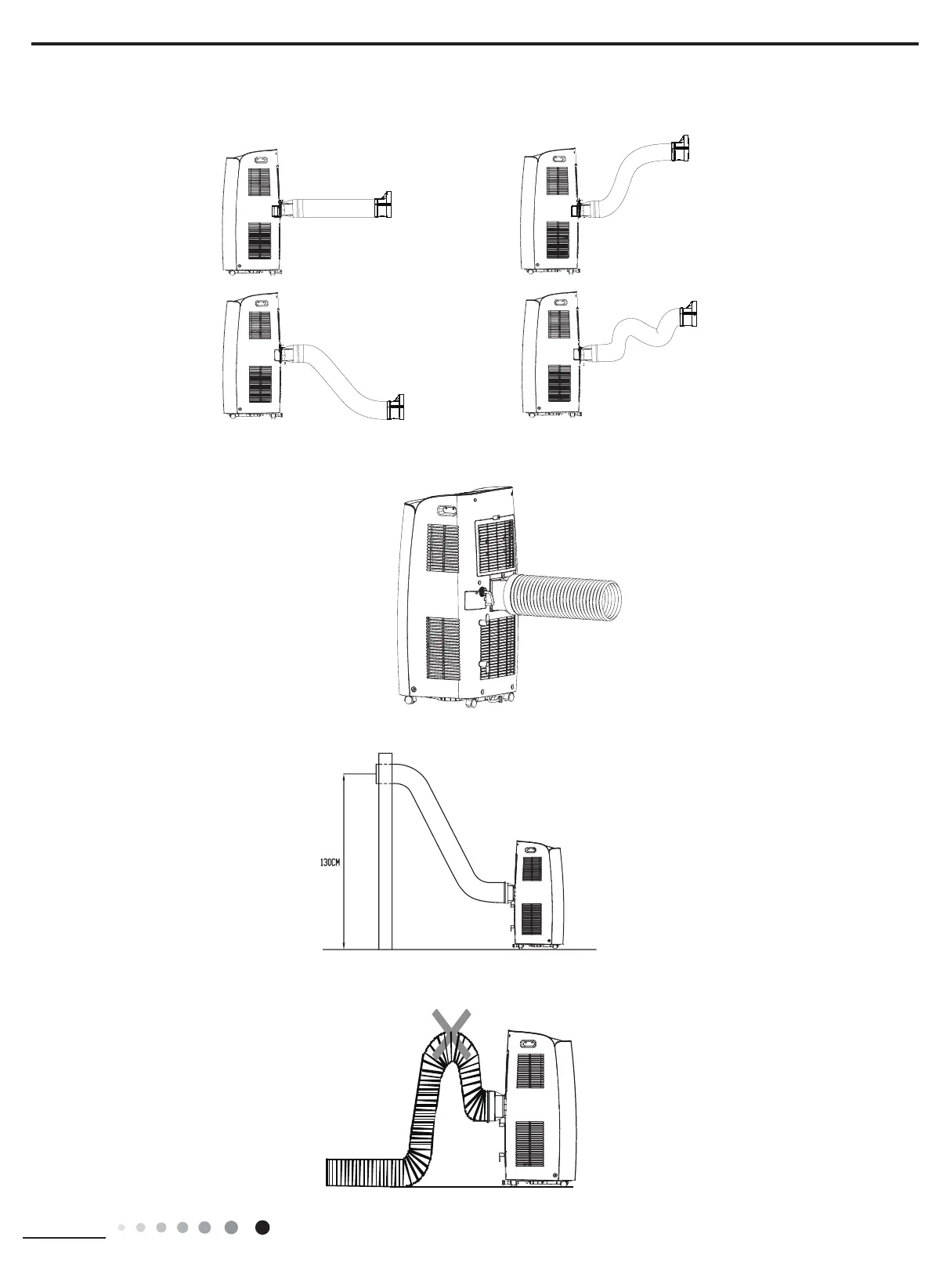

● Correct installation is as shown in gure (Whhe installing it on wall ,height of hall should not be over 130cm from oor).
● Wrong installation is shown in following gure (If the pipe is bent too much,it would easily cause malfunction.)
Note of Installingheat discharge pipe
correct correct
correct
wrong
correct correct
correct
wrong
