Installation of drainage hose
31

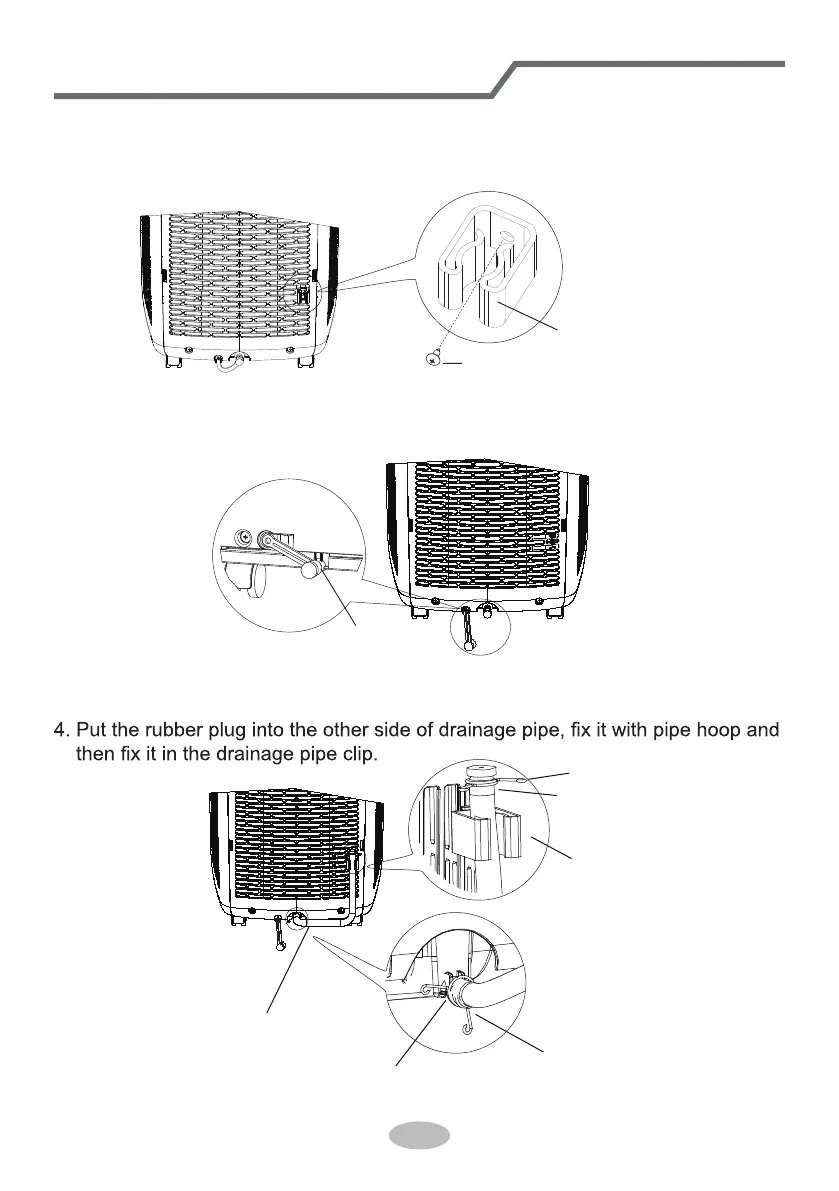

● Install of drainage hose(as shown in following figure):
2. Remove the rubber plug at drainage port.
1. Fix the drainage pipe clip on the right of rear side plate near drainage port with
a screw.
3. Put the drainage pipe into drainage port and screw it up, and then bind it with
pipe hoop.
drainage port
drainage pipe clip
screw
drainage port
pipe hoop
pipe hoop
rubber plug
drainage pipe clip
drainage pipe
