Gree GRS-CQ6.0Pd/NhH-E - Installation and Wiring

Air-to-water Heat Pump Split Versati
11
SPLIT TYPE

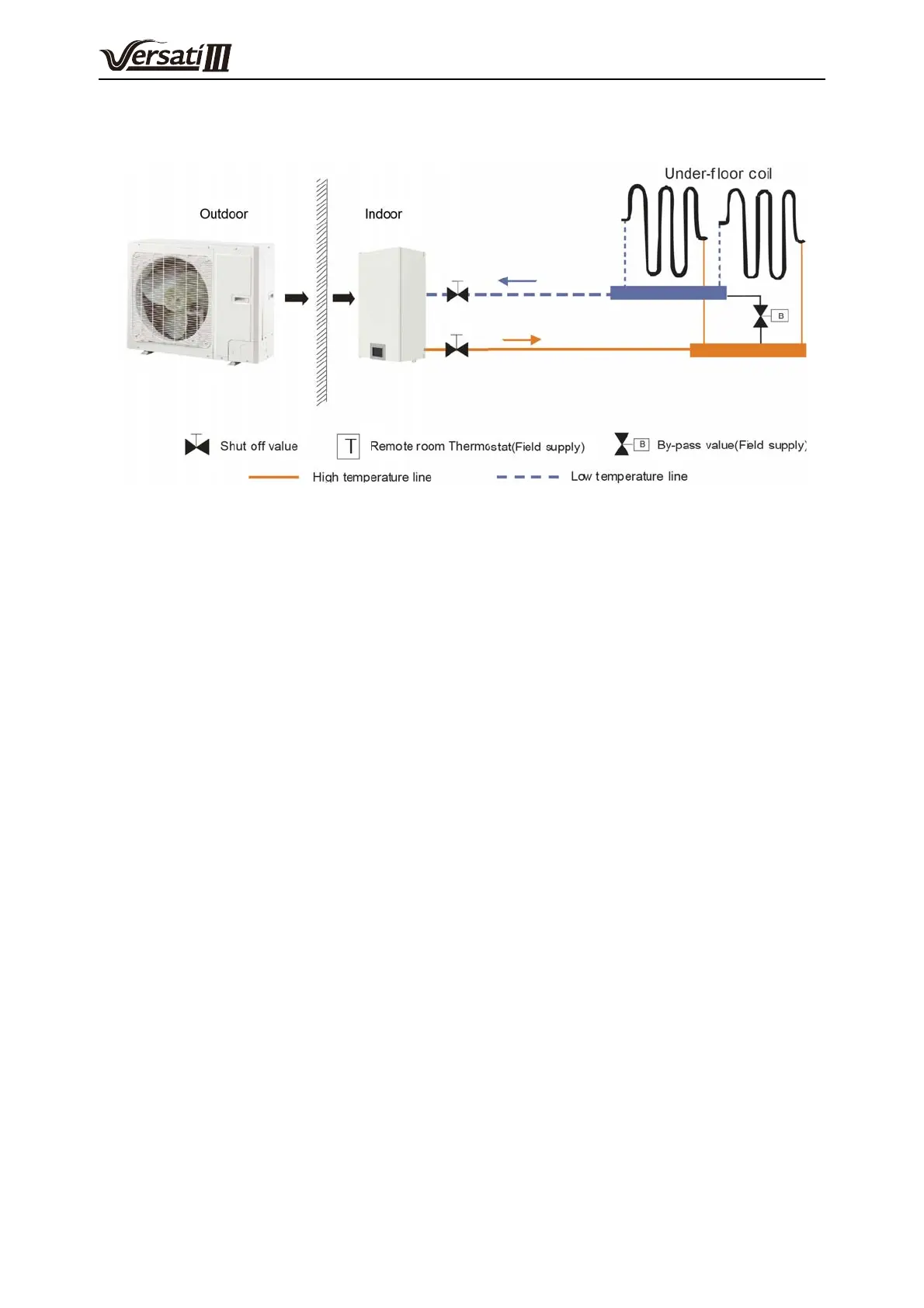

4. Installation Example

Notes
(a) 
(b) 
(c) The bypass valve must be installed to secure enough water flow rate, and should be installed at the
collector.
