DC Inverter U-match Series Duct Type Unit
35

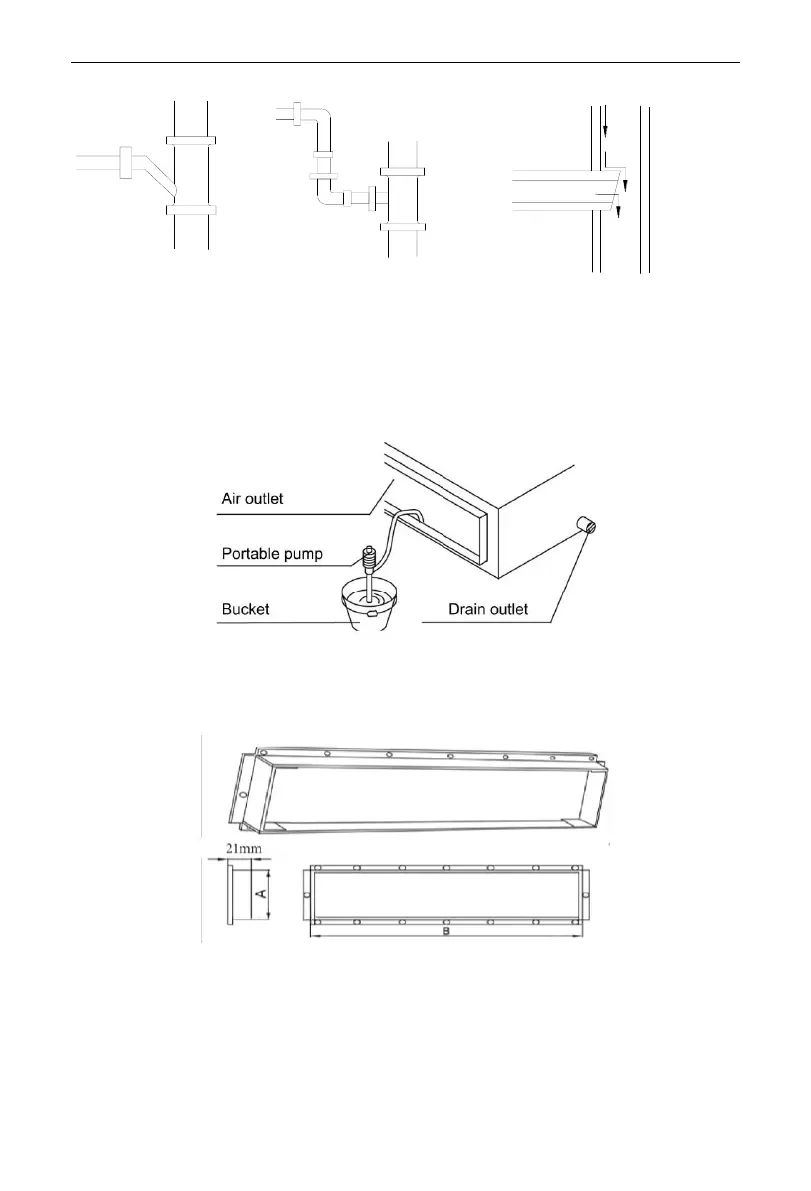

3-way connection of
Drainage pipe joint
Connection of drain elbow
Connection of horizontal pipe
3.2.6.4 Check Drainage
After piping work is finished, check if drainage flows smoothly.
As shown in the figure, add approximately 1liter of water slowly into the drain
pan and check drainage flow during COOL running.
3.2.7 Installation of the Duct
3.2.7.1 Dimensions of the Supply Air Outlet/Return Air Inlet
Supply Air Outlet
