to tighten up the terminal screw.

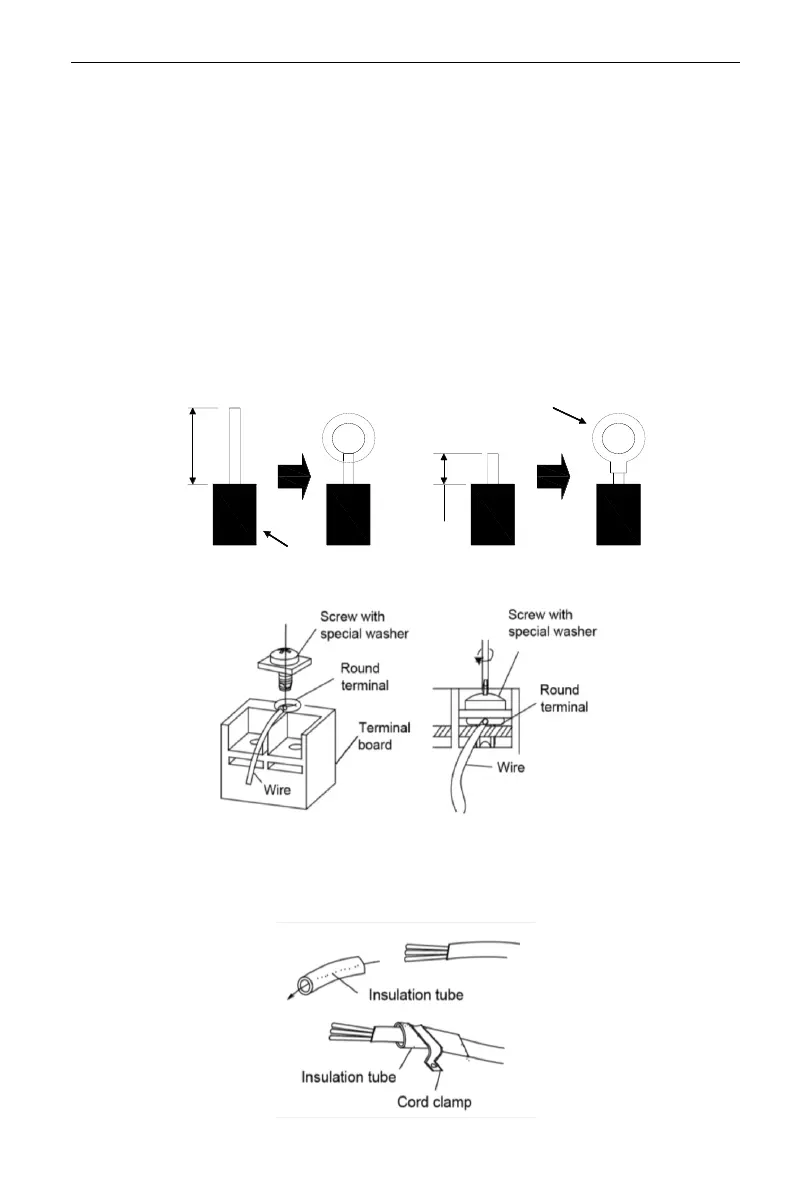

(2) For strand wires (as shown below):
1) Use wire cutters to cut off the wire end and then peel away about 10mm of
the insulation layer.
2) Use a screwdriver to unscrew the terminal screw on the terminal board.
3) Use a round terminal fastener or clamp to fix the round terminal firmly on
the peeled wire end.
4) Locate the round terminal conduit. Use a screwdriver to replace it and
tighten up the terminal screw (as shown below).
(3) How to connect the connection wire and power cord.
Lead the connection wire and power cord through the insulation tube. Then fix
the wires with wire clamps (as shown in the following figure.)
