Gree GUD35P/A-T - Page 49

DC Inverter U-match Series Duct Type Unit
45
GUD140PH/A-T+GUD140W/NhA-T, GUD140PHS/A-T+GUD140W/NhA-T

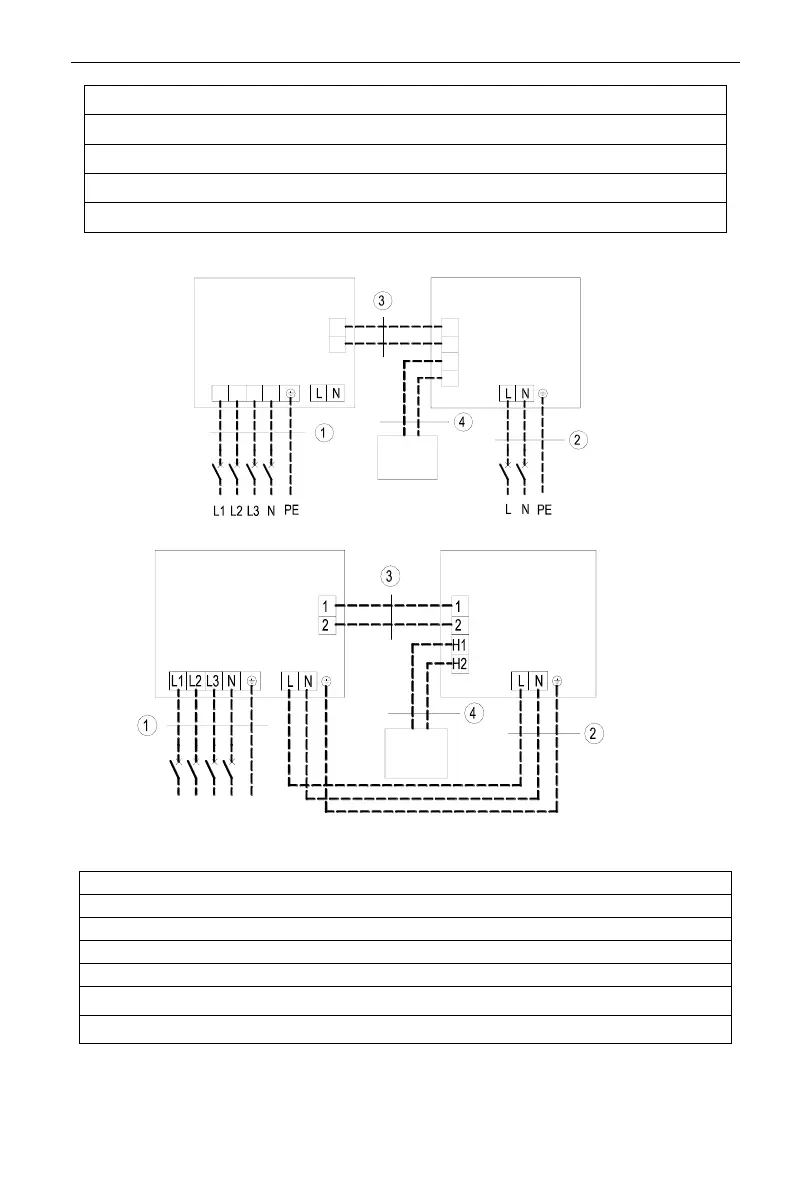

①. Power cord 3×6.0mm²
②. Power cord 3×1.0mm²
③. Communication Cords 2×0.75mm²
④. Communication Cords 2×0.75mm²
Three-phase unit: GUD100W/NhA-X, GUD125W/NhA-X, GUD140W/NhA-X.
Power:380V-415V 3N ~ 50Hz/60Hz
Outdoor Unit
Indoor Unit
Wired
Controller
Power:220V-240V~ 50Hz/208V-230V ~60Hz
L2
L1 L3
N
2
1
2
1
H1
H2
breaker
breaker
Power:380V-415V 3N ~ 50Hz/60Hz
Outdoor Unit
Indoor Unit
Wired
Controller
Power:220V-240V~50Hz/208V-230V~60Hz
breaker
L1
L2
L3
N
PE
GUD100PH/A-T+GUD100W/NhA-X, GUD100PHS/A-T+GUD100W/NhA-X
GUD125PH/A-T+GUD125W/NhA-X, GUD125PHS/A-T+GUD125W/NhA-X
GUD140PH/A-T+GUD140W/NhA-X, GUD140PHS/A-T+GUD140W/NhA-X
①. Power cord 5×1.5mm²
②. Power cord 3×1.0mm²
③. Communication Cords 2×0.75mm²
④. Communication Cords 2×0.75mm²
