Note: Before removing the condenser, make sure there is no refrigerant in the pipeline and power is cut off.

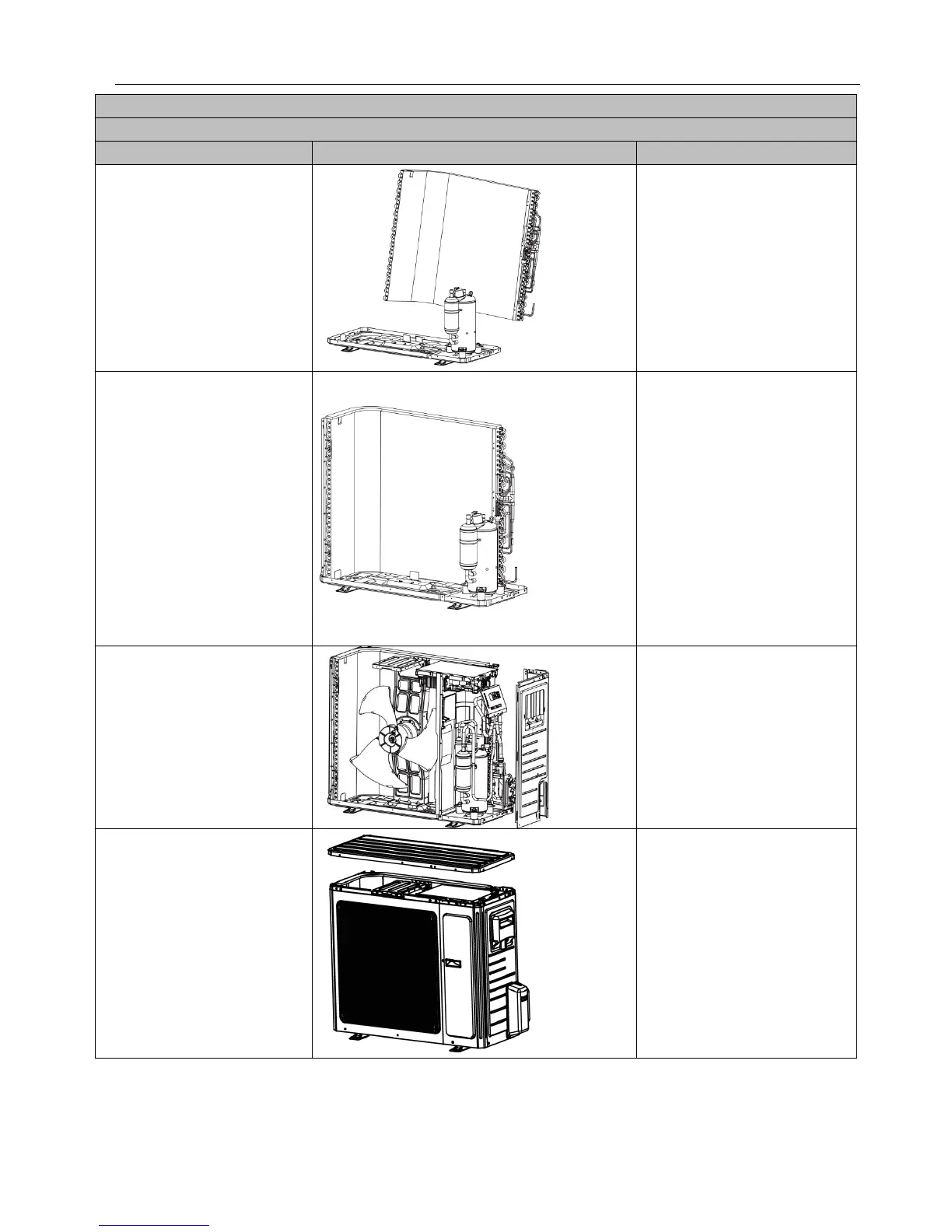

5. Take out the condenser.
●Loosen the securing screws of
condenser support. Take off the
plate type heat exchanger and the
support as a whole.
6. Install the new condenser.
●Secure the screws of condenser
and support. Then fix them
together on the chassis.
●Install the condenser by referring
to the positions of entering and
leaving pipes. Weld the connection
pipes.
●Nitrogen welding: the pressure of
nitrogen is 0.5±0.1kgf/ c ㎡
(relative pressure). Note: When
welding the pipes, do not let the
flame burn the other components.
7. Secure the electric box and
arrange the wires according to the
requirement.
●Put the electric box in place and
tighten up the screws of electric
box.
●Arrange and secure the wires as
original.
8. Check and open the upper and
side panels.
●Check whether each component
and connection wire is well
connected.
●If everything is OK, place back
the upper, left and right side
panels.
