69
Ɣ

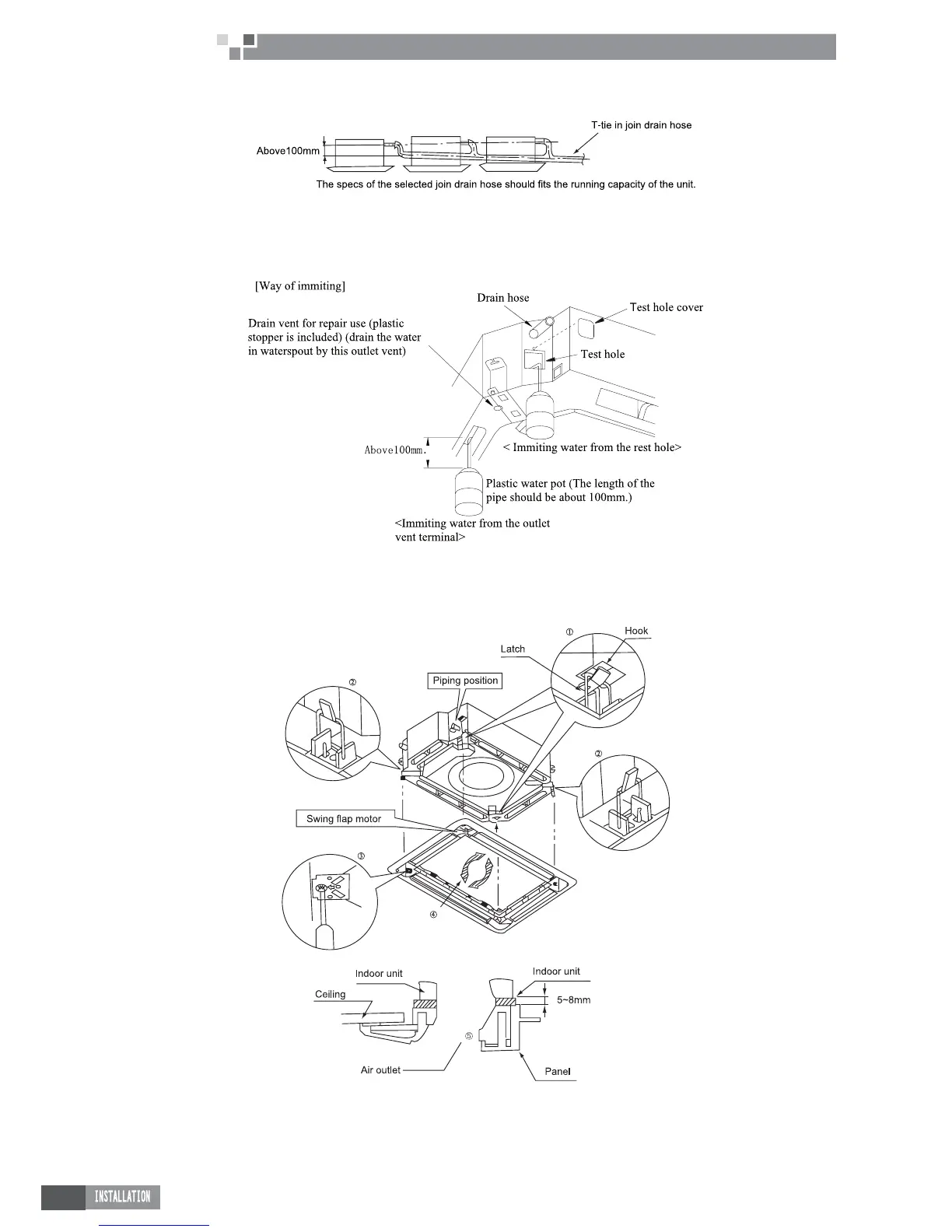

Please install the drain hose according to the following process if several drain hoses join together.
(As shown in Figure 1-3-11)
Ɣ
Check the smoothness of drain after installation.
Ɣ
Check the drain state by immiting 600cc water slowly from the outlet vent or test hole. (As shown in
Figure 1-3-12)
Ɣ
Check the drain in the state of refrigerating after installation of the electric circuit.
Figure 1-3-12
1.3.7 Installation of panel
a. Set the panel to the indoor unit body by matching the position of the swing flap motor of the
decoration panel to the piping position of the panel to the piping position of the indoor unit as shown in Figure
1-3-13.
Figure 1-3-13
Ɣ
+DQJWKHODWFKZKLFKLVORFDWHGRQWKHRSSRVLWHVLGHRIWKHVZLQJÀDSPRWRURQWKHSDQHOWHPSRUDULO\
to the book of the indoor unit. (2 Positions)
Ɣ
Temporarily hang the remaining 2 latches to the hooks on the sides of the indoor unit.(Be careful not
