DC Inverter U-match Series Cassette Type Unit
11

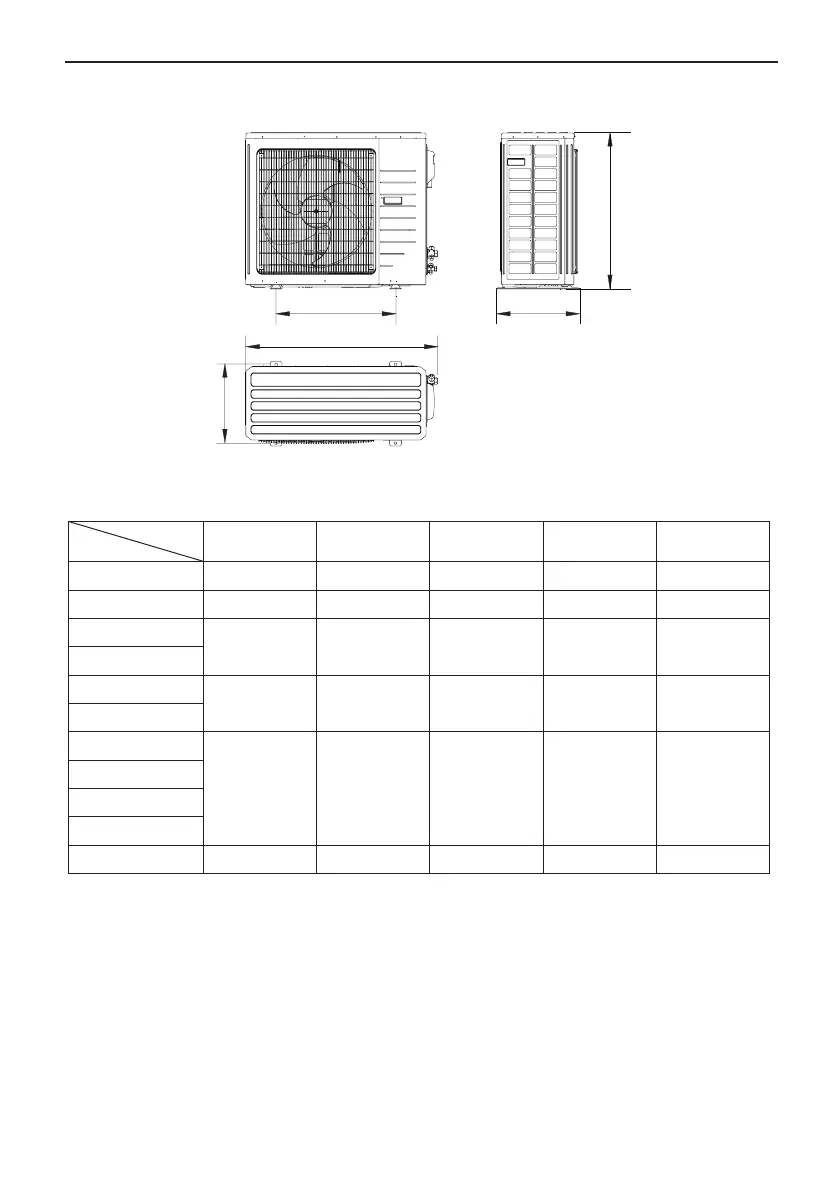

4.2.1 Outdoor unit dimension
D
A
B
C
E
Fig.10
Table 8 Unit: mm
Item
Model
A B C D E
GUHD12NK3FO 848 320 540 540 286
GUHD18NK3FO 955 396 700 560 360
GUHD24NK3FO
980 427 790 610 395
GUHD30NK3FO
GUHD36NK3FO
1107 440 1100 631 400
GUHD36NM3FO
GUHD42NM3FO
958
412 1349 572 376
GUHD42NK3FO
GUHD48NK3FO
GUHD48NM3FO
GUHD60NM3FO 1085 427 1365 620 395
4.2.2 Condensate Drainage of the Outdoor Unit(Only for the heat pump unit) (Fig.11)
(1). It is required to install a drain pipe for the outdoor unit to drain out the condensate water
during heating operation. (only for the heat pump unit)
(2). When installing the drain pipe, apart from the drain pipe mounting hole, all other holes
should be plugged so as to avoid water leakage. (only for the heat pump unit)
(3). Installation Method: Insert the pipe joint into the hole φ25 located at the base plate of the
unit and then connect the drain pipe to the pipe joint.
