DC Inverter U-match Series Cassette Type Unit
13
CAUTION!
.
To prevent breaking of the pipe, avoid sharp bends. Bend the pipe with a radius of curvature of 150
mm or over.
.
If the pipe is bent repeatedly at the same place, it will break.
4.3.3 Connecting the Pipe at the Indoor Unit Side
Detach the caps and plugs from the pipes.
CAUTION!
.
Be sure to apply the pipe against the port on the indoor unit correctly. If the centering is improper,
the flare nut cannot be tightened smoothly. If the flare nut is forced to turn, the threads will be
damaged.
.
Do not remove the are nut until the connection pipe is to be connected so as to prevent dust and
impurities from coming into the pipe system.
When connecting the pipe to the unit or removing it from the unit, please do use both the
spanner and the torque wrench.(Fig.15)
When connecting, smear both inside and outside of the are nut with refrigeration oil, screw it
hand tight and then tighten it with the spanner.
Refer to Table 9 to check if the wrench has been tightened properly (too tight would mangle the
nut and lead to leakage).
Examine the connection pipe to see if it leaks, then take the treatment of heat insulation, as
shown in the Fig.15.
Use the medium-sized sponge to insulate the coupler of the gas pipe.

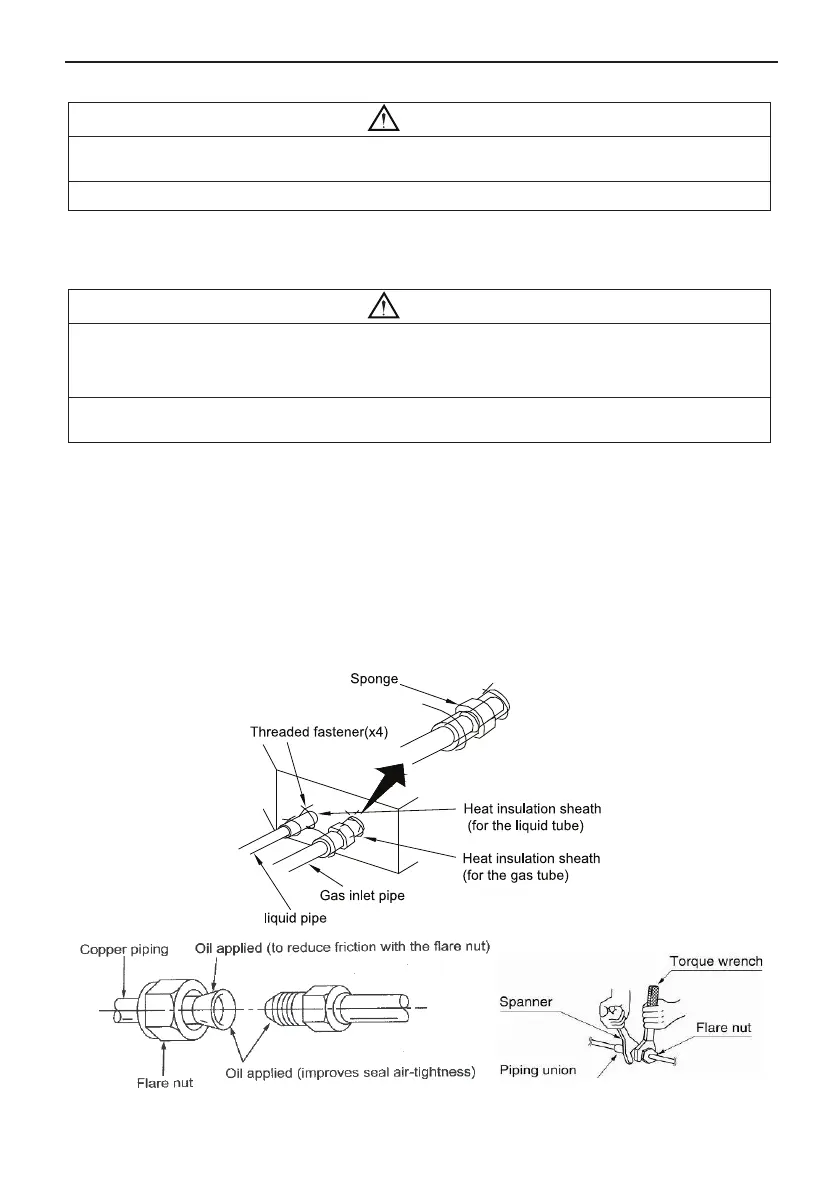

Fig.15
