Gree GUHD12NK3FO Manual

DC Inverter U-match Series Cassette Type Unit
25

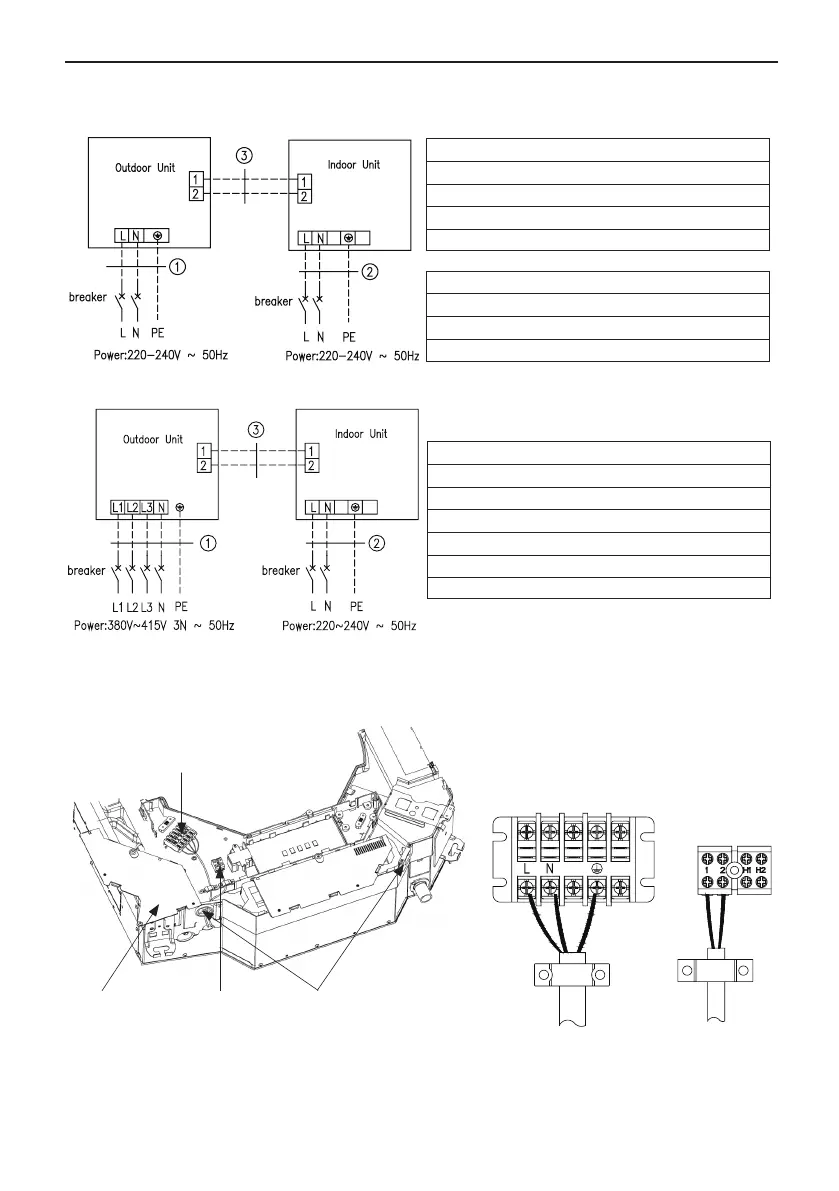

Single-phase units(36K~48K)
GUHD36NK3FO+GKH36K3FI
GUHD42NK3FO+GKH42K3FI
① .
Power cord 3×2.5mm
2
(H07RN-F)
② .
Power cord 3×1.0mm
2
(H05RN-F)
③ .
Communication Cords 2×0.75mm
2
(H05RN-F)
GUHD48NK3FO+GKH48K3FI
① .
Power cord 3×6.0mm
2
(H07RN-F)
② .
Power cord 3×1.0mm
2
(H05RN-F)
③ .
Communication Cords 2×0.75mm
2
(H05RN-F)
Three-phase units
GUHD36NM3FO+GKH36K3FI
GUHD42NM3FO+GKH42K3FI
GUHD48NM3FO+GKH48K3FI
GUHD60NM3FO+GKH60K3FI
① .
Power cord 5×1.5mm
2
(H07RN-F)
② .
Power cord 3×1.0mm
2
(H05RN-F)
③ .
Communication Cords 2×0.75mm
2
(H05RN-F)
Fig.42
(5). Electric wiring of indoor unit side
Remove the electric box cover from the electric box sub-assy and then connect the wire.
Power supply
terminal board
Electric
box cover
Communication
terminal board
Seal here
to avoid leakage
Fig.43
