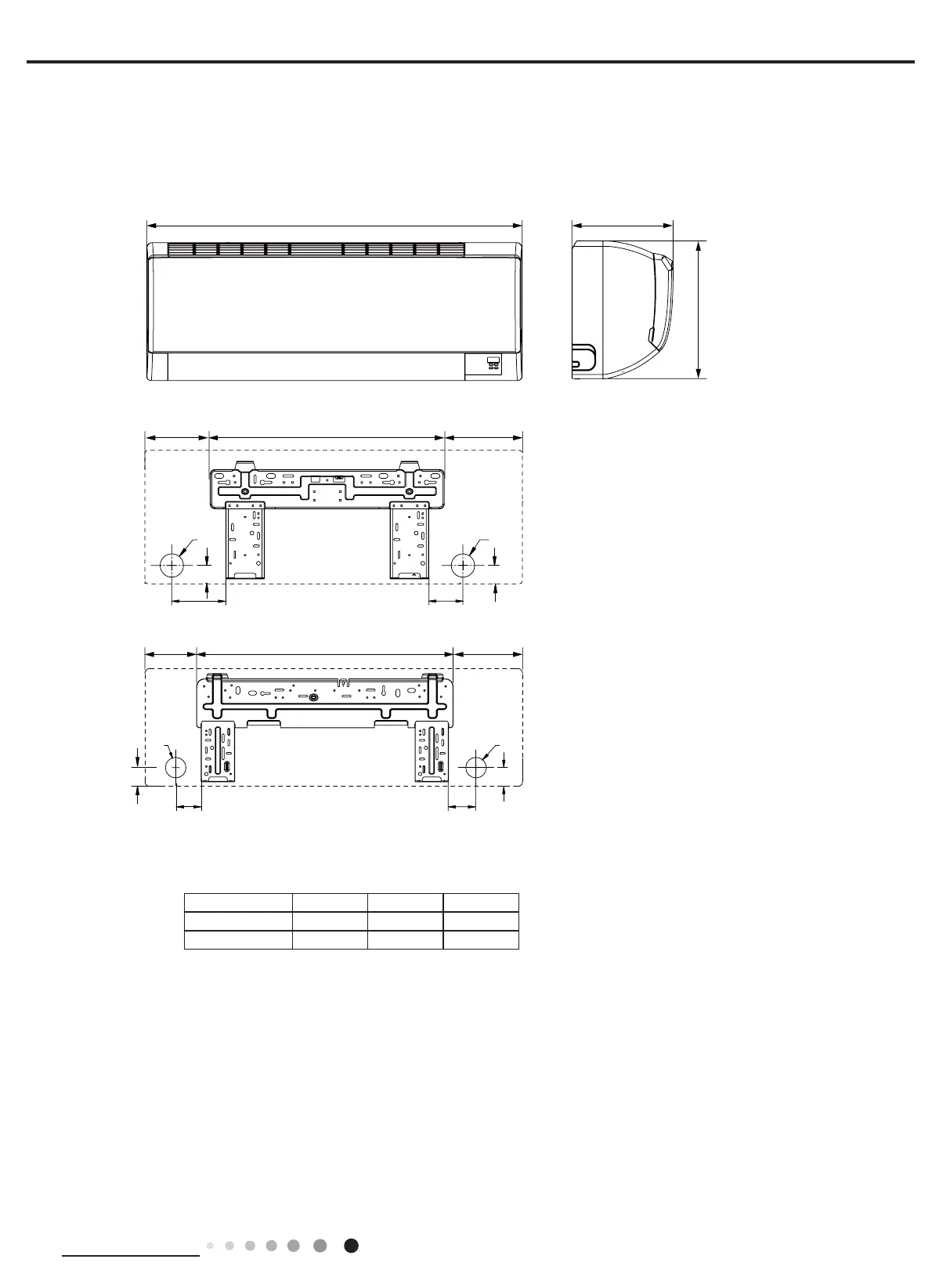

3. Outline Dimension Diagram
3.1 Indoor Unit
Φ70
Φ70
70
90
45
45
40
Φ55
Φ55
Φ55
Φ55
40
41.3
41.3
71
161
54
54.5
120.5 548.5
W
D
H
103
149 542 176
130 685 193
Φ70
Φ70
70
90
4545
40
Φ55
Φ55
Φ55
Φ55
40
41.3
41.3
71
161
54
54.5
120.5 548.5
W
D
H
103
149 542 176
130 685 193
unit:mm
24K Unit
18K Unit
Models W H D
18K 867 305 215
24K 1008 319 221
