Removal Procedure
56

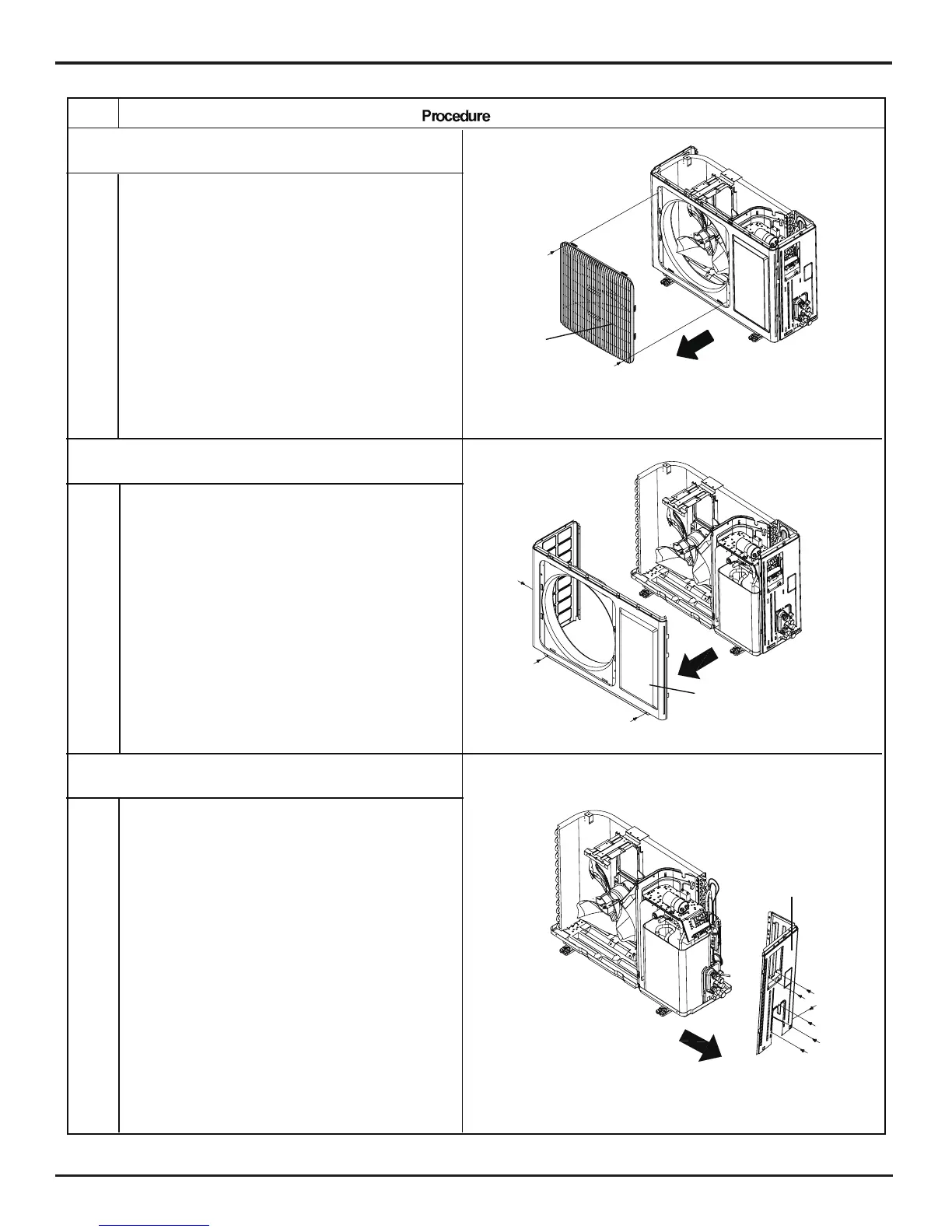

4. Remove front grille
Remove connection screws between the front grille
and the front panel. Then remove the front grille.
5. Remove front panel
Remove connection screws connecting the front
panel with the chassis and the motor support and
then remove the front panel.
6. Remove right side plate
Remove connection screws connecting the right
side plate with the valve support and the
electric box. Then remove the right side plate.
Steps
front grill
front panel
right side plate
