Installation and Maintenance
Service Manual
Step Procedure

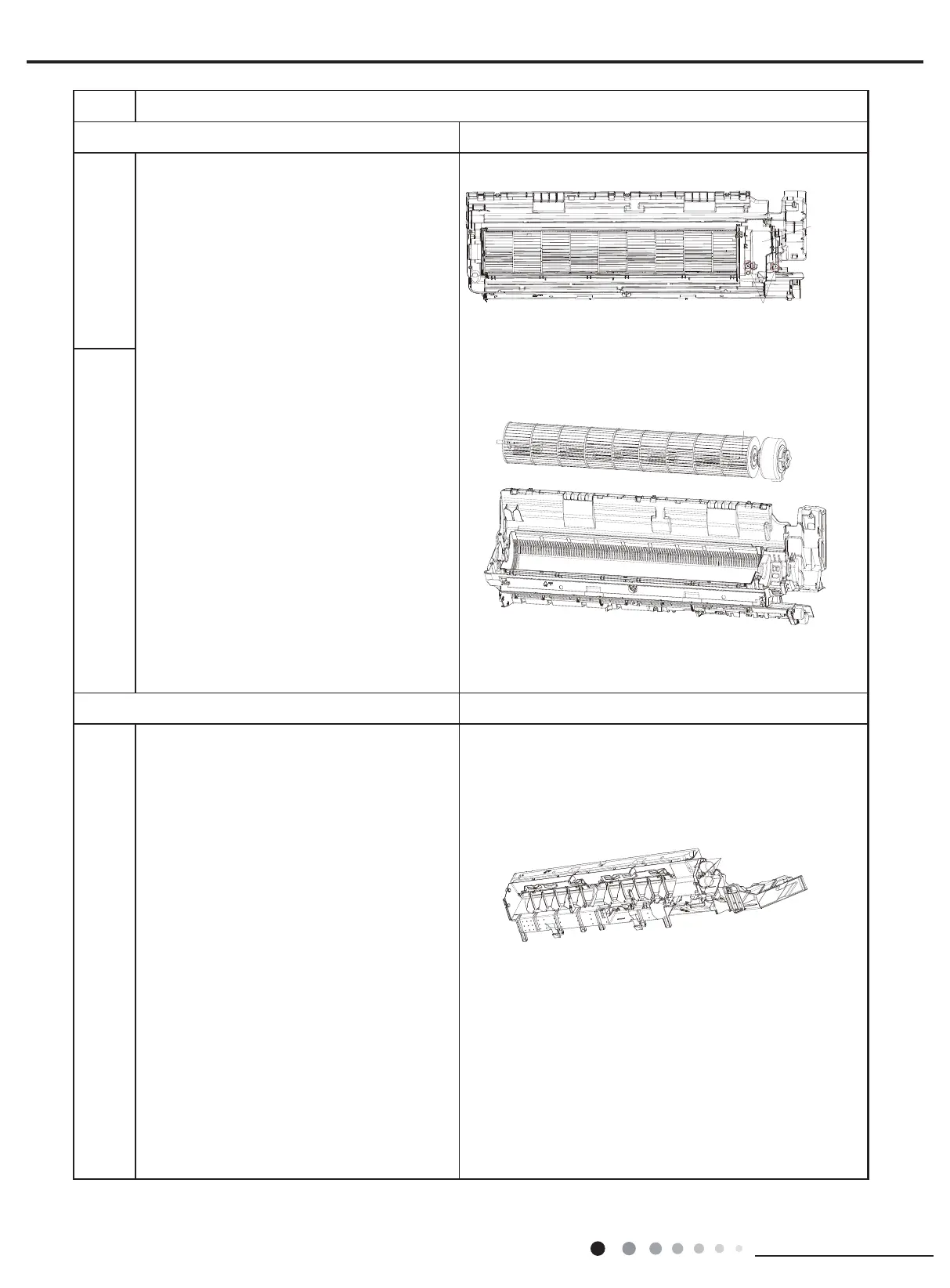

8. Remove motor and cross ow fan
a Remove 3 screws fixing motor clamp and then
remove the motor clamp.
Loose the screws (2-3 circles) used for xing the
cross ow fan, pull right to pull out the motor.
b
9. Remove swing motor
Screw off the screws that are locking the swing
motor and take the motor off.
Screws
Screws
Motor
Press
Plate
Screw
