108
Installation and Maintenance
Service Manual

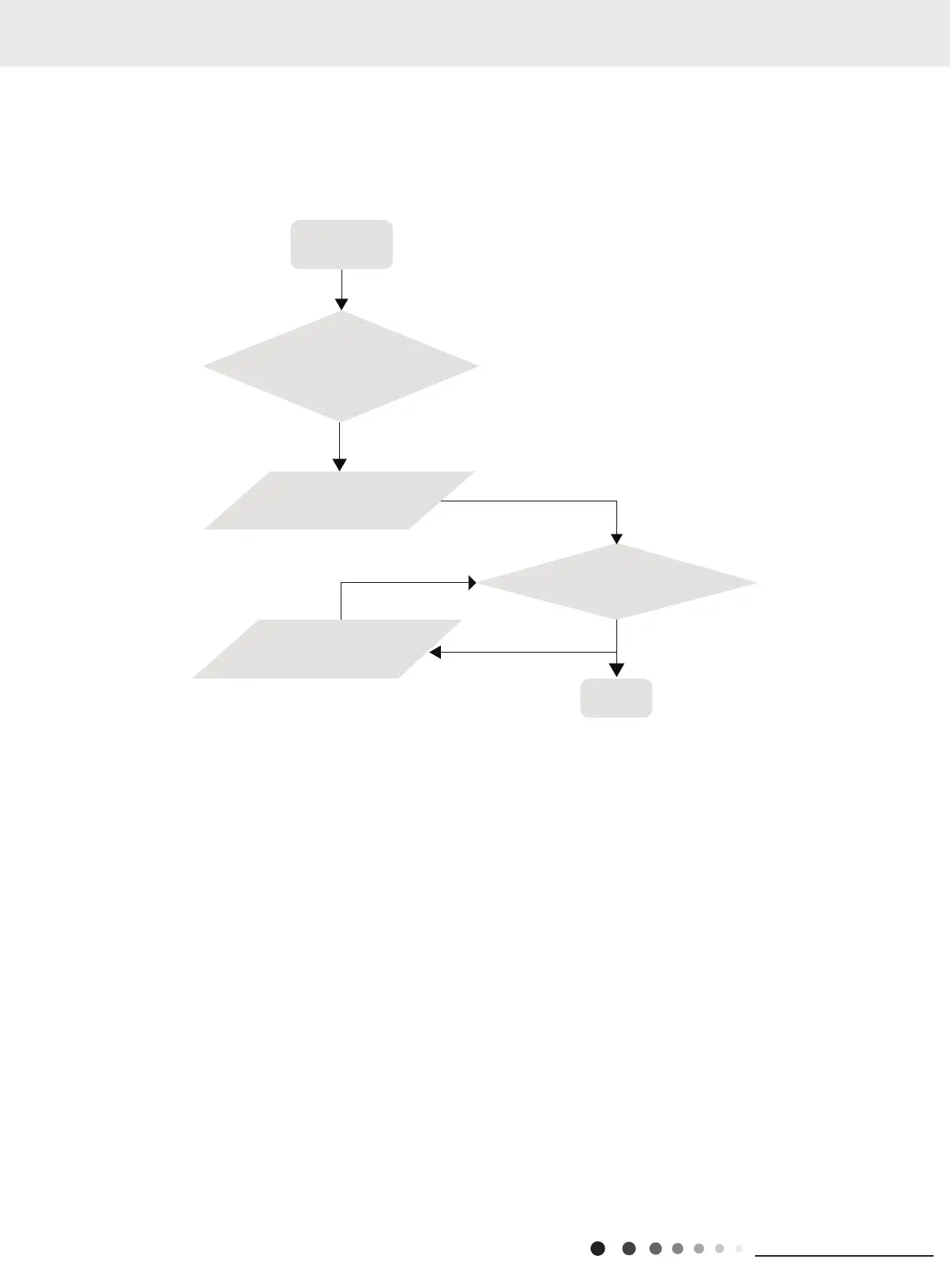

6. Malfunction of detecting plate(WIFI) JF
Start
Is malfunction
eliminated
The end
check if the connection wire
are correctly connected
Replace the
detecting
plate
with the same model
Replace the mainboard
with the same model
Ye
s
Ye
s
No
109
111
Table of Contents
Table of Contents
2
Part Ⅰ : Technical Information
4
Summary
4
Specifications
5
Specification Sheet
7
Capacity Variation Ratio According to Temperature
35
Cooling and Heating Data Sheet in Rated Frequency
37
Noise Curve
37
Outline Dimension Diagram
39
Indoor Unit
39
Outdoor Unit
40
Refrigerant System Diagram
43
Electrical Part
44
Wiring Diagram
44
PCB Printed Diagram
53
Function and Control
62
Remote Controller Introduction
62
Brief Description of Models and Functions
76
GREE+ App Operation Manual
85
Ewpe Smart App Operation Manual
86
Part Ⅱ : Installation and Maintenance
87
Notes for Installation and Maintenance
87
Installation
92
Installation Dimension Diagram
92
Installation Parts-Checking
94
Selection of Installation Location
94
Electric Connection Requirement
94
Installation of Indoor Unit
95
Installation of Outdoor Unit
97
Vacuum Pumping and Leak Detection
98
Check after Installation and Test Operation
99
Maintenance
100
Error Code List
100
Procedure of Troubleshooting
105
Troubleshooting for Normal Malfunction
119
Exploded View and Parts List
121
Indoor Unit
121
Outdoor Unit
135
Removal Procedure
145
Removal Procedure of Indoor Unit
145
Removal Procedure of Outdoor Unit
150
Appendix
179
Appendix 1: Reference Sheet of Celsius and Fahrenheit
179
Appendix 2: Configuration of Connection Pipe
179
Appendix 3: Pipe Expanding Method
180
Appendix 4: List of Resistance for Temperature Sensor
181
