Installation and Maintenance
Service Manual
Step Procedure

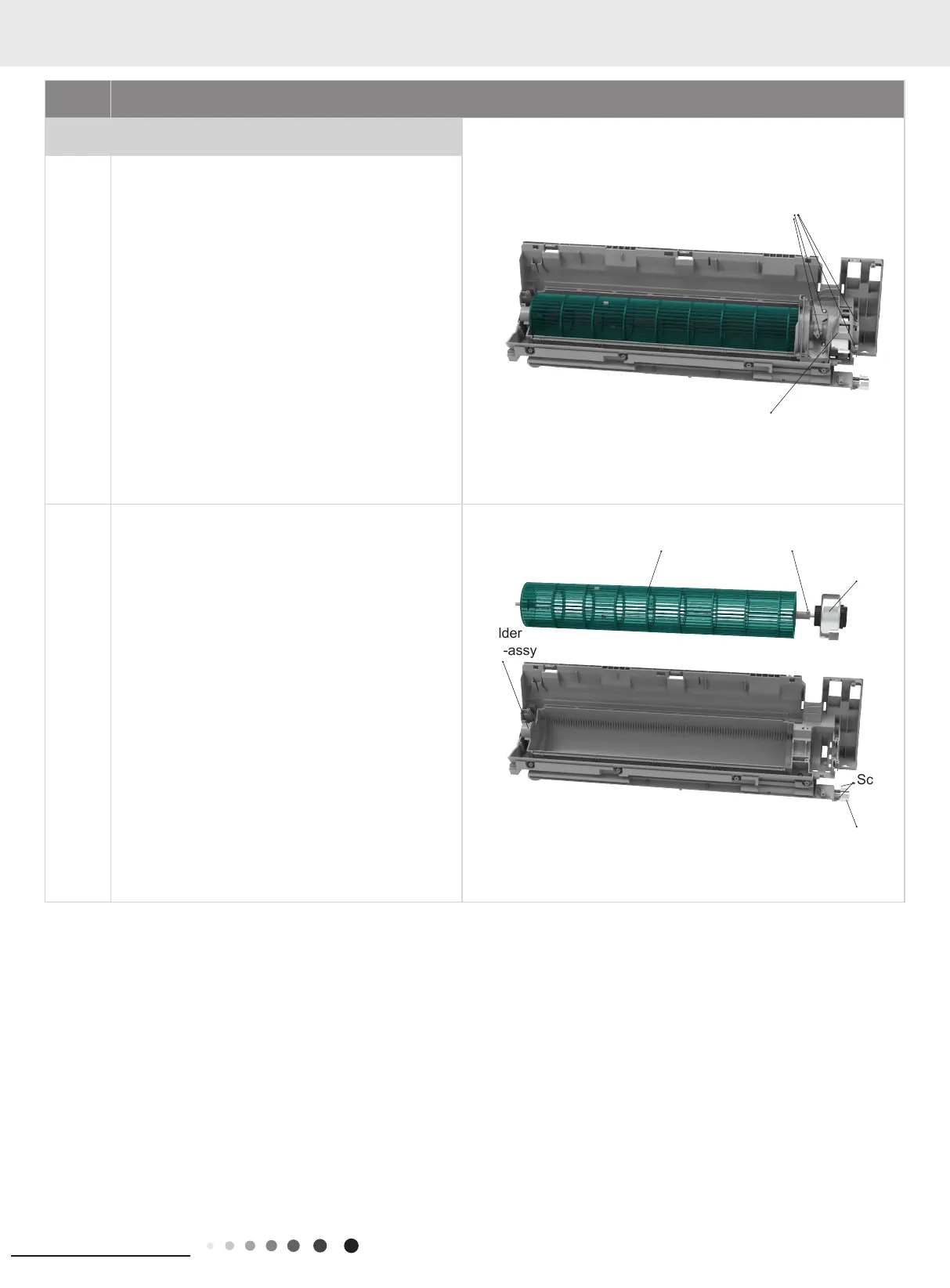

9. Remove motor and cross ow blade
a
Remove the screws fixing motor clamp and then
remove the motor clamp.
b
Remove the screws at the connection place of cross
flow blade and motor; lift the motor and cross flow
blade upwards to remove them.
Remove the bearing holder sub-assy.
Remove the screw xing step motor and then remove
the step motor.
Screws
Motor clamp
Cross ow Screw
Motor
Holder
sub-assy
Step motor
Screws
