174
Installation and Maintenance
Service Manual
Step Procedure

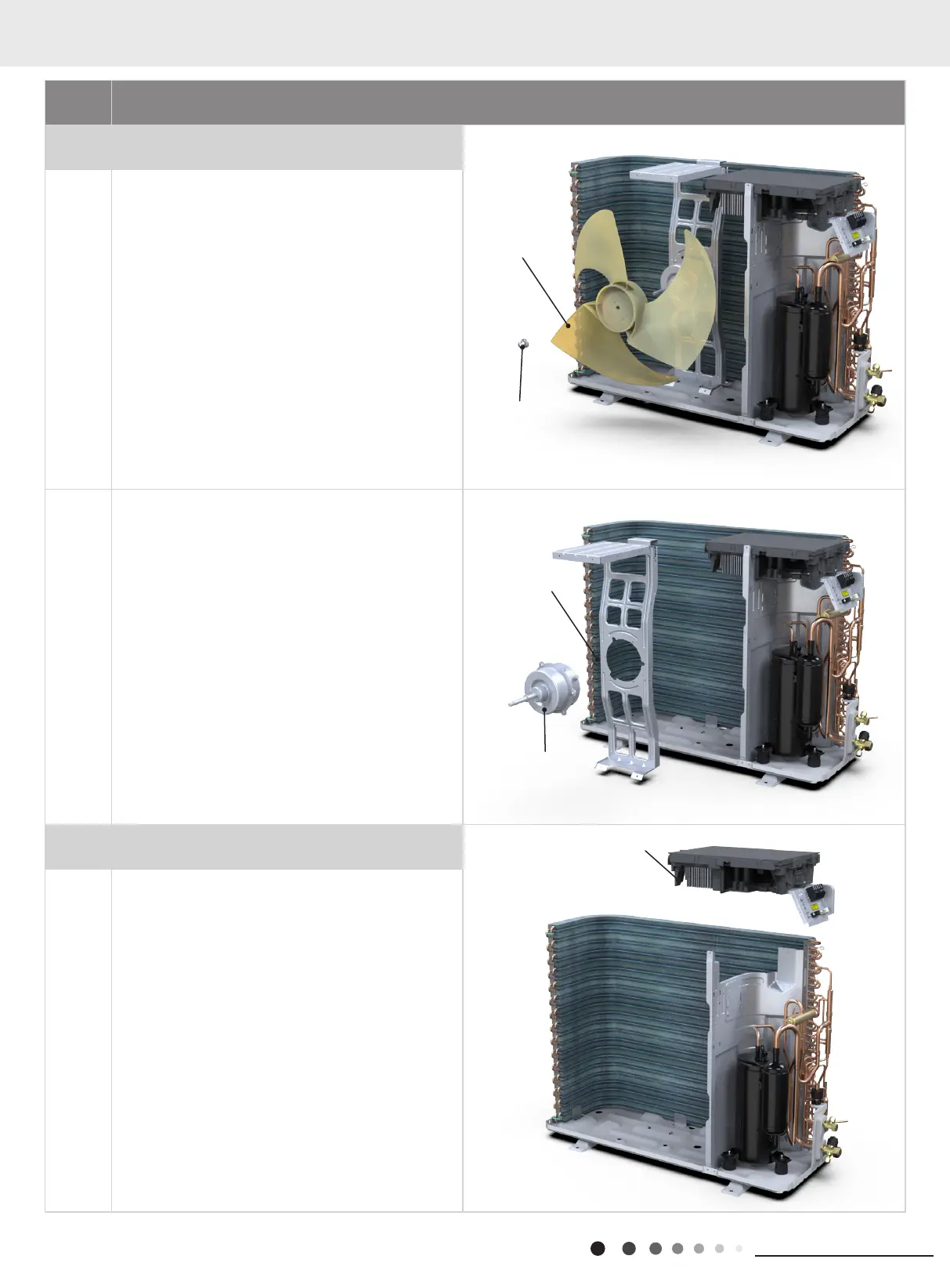

4. Remove axial ow blade
a
Remove the nut xing axial ow blade and then remove
the blade.
b
Remove the 6 screws xing the motor and then remove
the motor.
Remove the 2 screws connecting the motor support
and chassis, and then loosen the stopper to remove the
motor support.
6. Remove electric box assy
Remove the screws fixing electric box assy ; pull out
each wiring terminal; lift the electric box assy upwards
to remove it.
Note:
When pulling out the wiring terminal, pay attention to
loose the clasp and don't pull it so hard.
Axial ow blade
Motor support
Electric box assy
Motor
Nut
To Next Page
