Gree YAP1F2 User Manual

52
Technical Information
Service Manual
123415
5
6
7
8
9
10
11
12
13
14

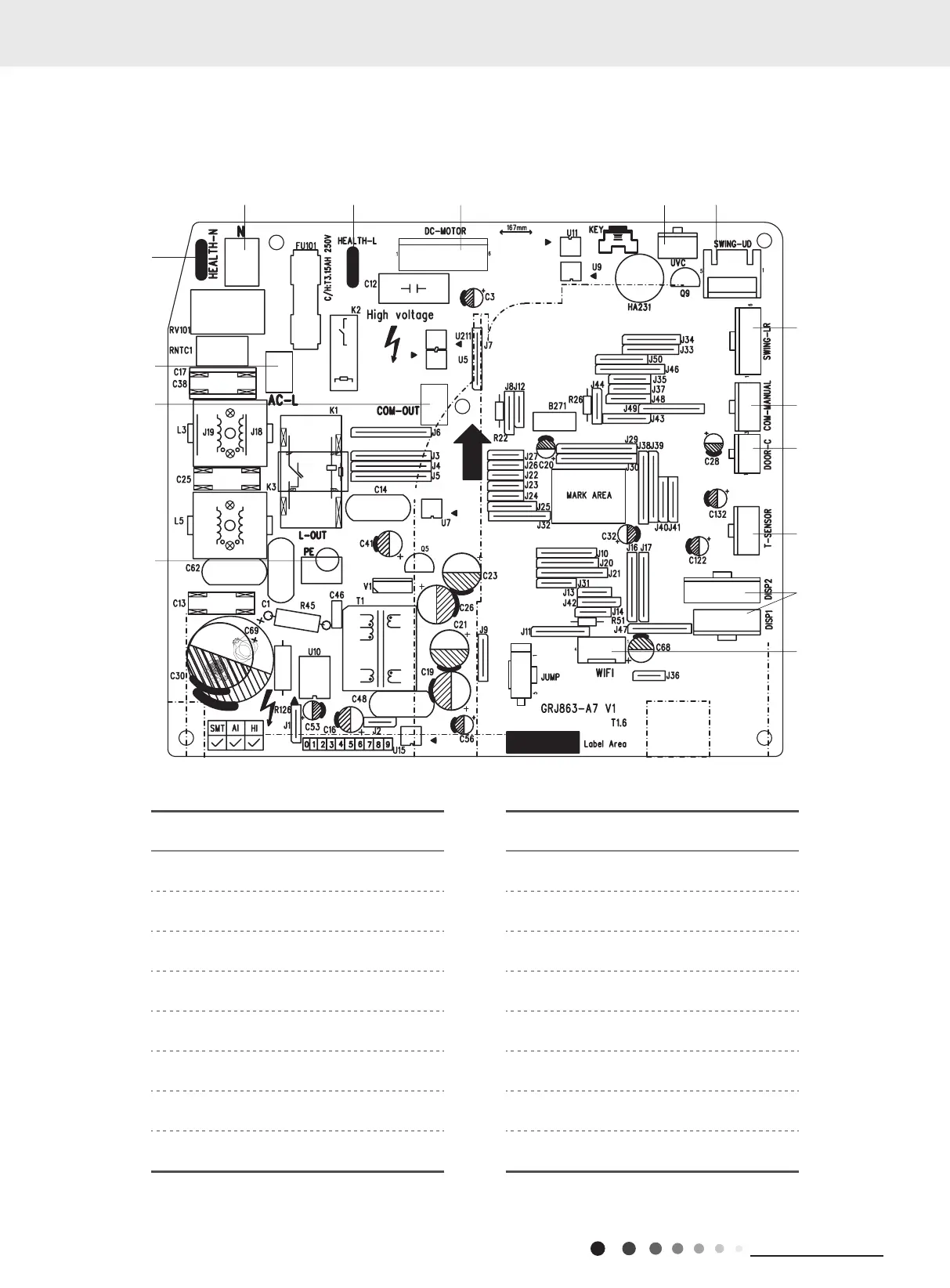

No. Name No. Name
1 Neutral wire 9 Display interface
2 Interface of health function live wire 10 WIFI interface
3 DC fan interface 11 Grounding wire
4 Up&down swing interface 12
Terminal with outdoor unit
communication wire
5 Left&right swing interface 13 Live wire interface
6 Interface of wired controller 14 Interface of health function neutral wire
7 Interface of gate control 15 Interface of ultraviolet clean
8 Interface of temperature sensor
GWH18QD-K6DNA5I/I GWH18QD-K6DNB2I/I GWH18QD-K6DNC4I/I GWH24QE-K6DNB2I/I GWH24QD-K6DNC4B/I
GWH18QD-K6DND2I/I GWH24QE-K6DNA5I/I GWH24QE-K6DND2K/I GWH24QD-K6DNB2B/I
