Greenlee 755 - Pump Block Seat Details

Greenlee Textron Inc. / Subsidiary of Textron Inc.
8
4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
755 Hydraulic Hand Pump

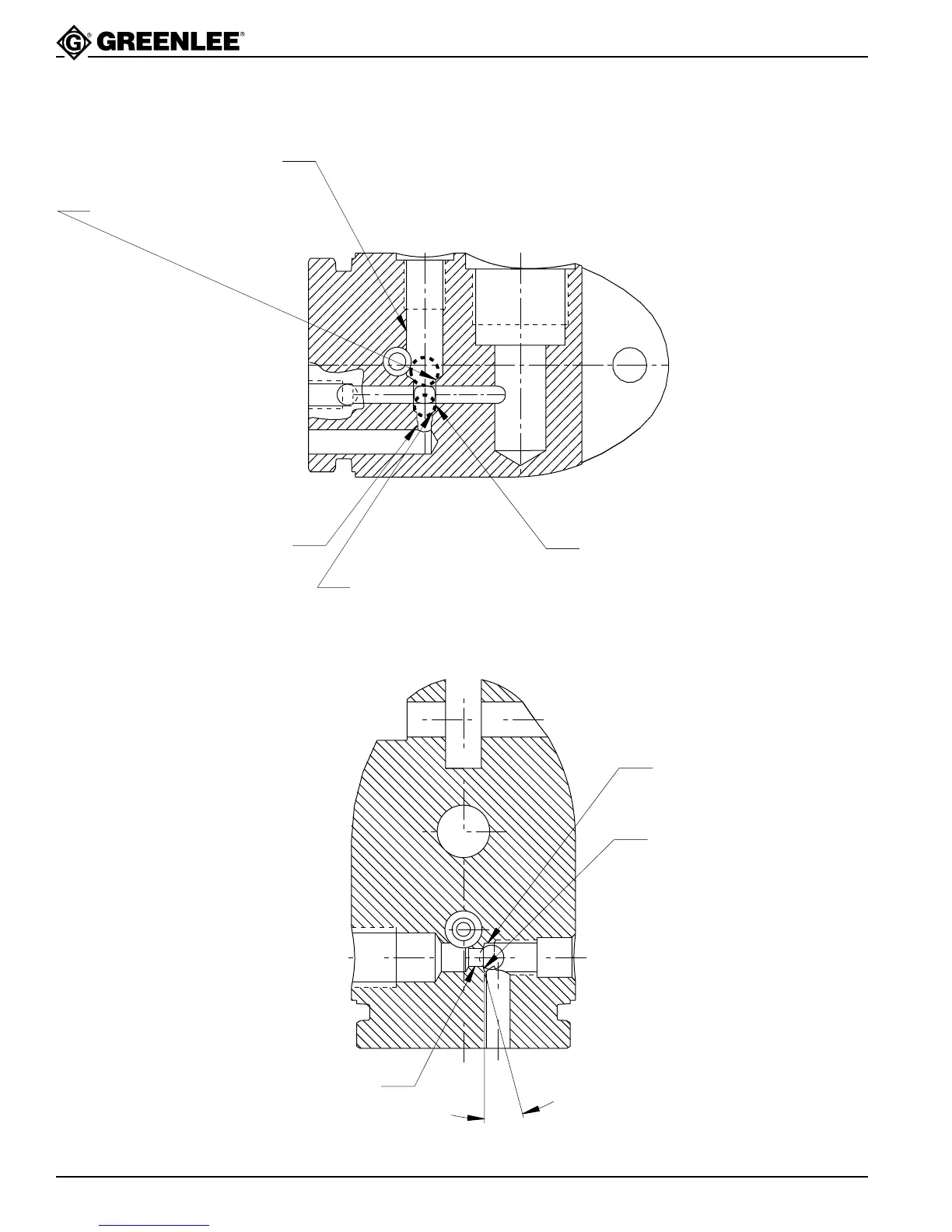

Pump Block Seat
15°
7/32 BALL SEAT
ø .256 (F) DRILL
(NOTE DRILL ANGLE)
ø 9/64 DRILL
ø 5/32 REAM
7/32 BALL SEAT
9/32 BALL SEAT
ø (11/64) REAM
ø 0.238 (B) DRILL
ø .332 (Q) DRILL
ø 1/4 REAM
