Assembly and
Demonstration
Video

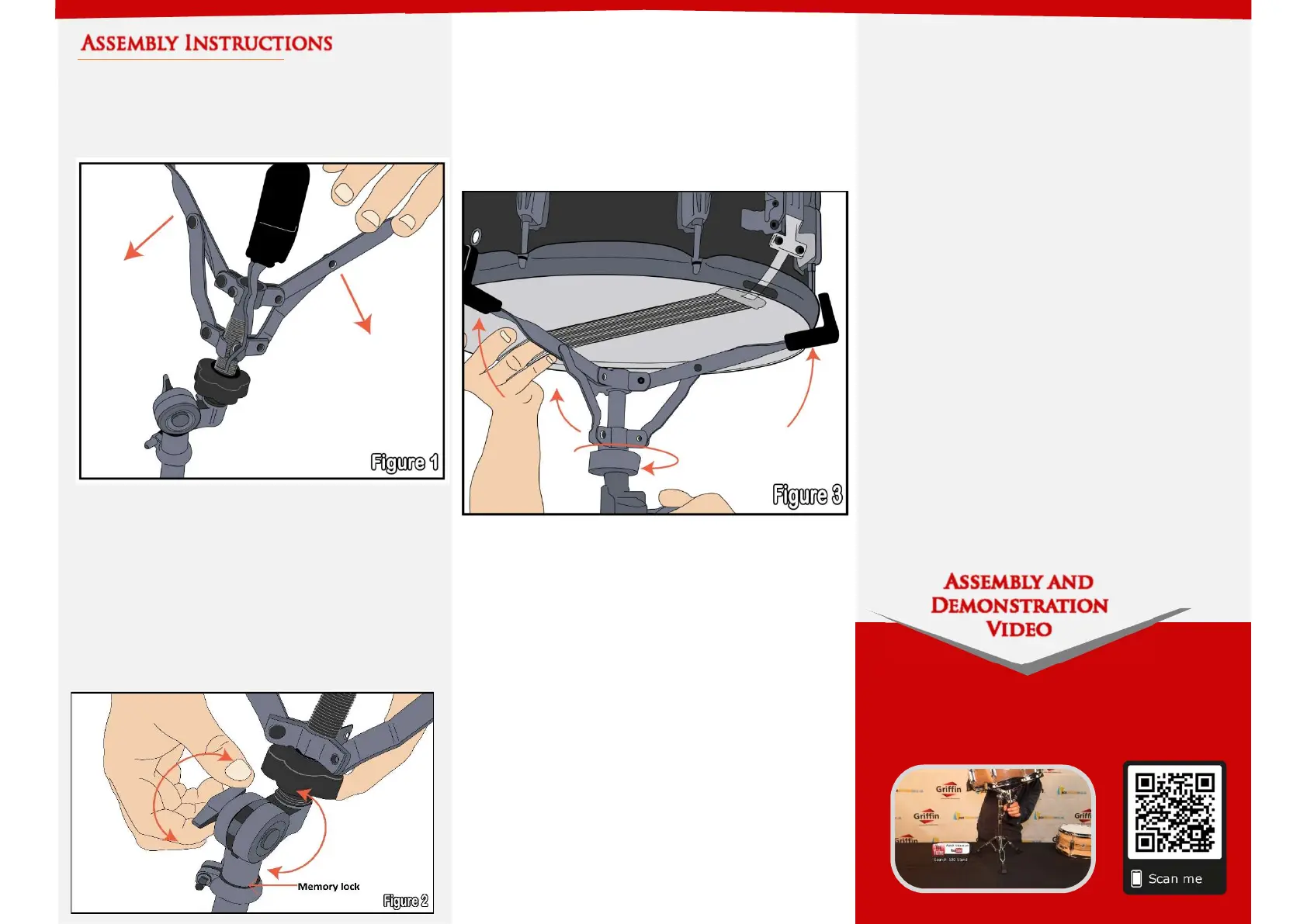

Assembly Instructions
Step 1 – Take the main stand with legs and
loosen the knob, spread the legs wide and
tighten the knob to lock the legs in place as
shown in Figure 1.
Step 2 – Insert the middle pipe trough the main
stand. A memory lock is included in the part
where you can adjust to lock the height
adjustment in place. This will keep your preferred
height. Turn the knob to tighten in place (See
Figure 2). Then adjust the height of the stand by
sliding up or down the top interlocking pipe to
achieve your preferred height.
Please scan the QR Code below for the product
demonstration video. Or go to the URL shown here and find
the product video. www.Griffin-Stands.com/Videos
Step 3 – Just below the snare drum basket is a
knob which you can adjust according to your
preferred angle. Insert your snare drum and use
the circle knob just at the bottom of the basket to
close the basket claws and secure the snare drum
in place (See Figure 3).
Step 4 – If the top pipe is sliding, turning or
dropping, then you need to secure the top pipe by
using the supplied memory lock. First, Make sure
the memory lock is tight by using a drum key to
tighten it. Then lock the lip on the memory lock
into the slot fitted for the memory lock on the
bottom coupler pipe. This will interlock the top
pipe with the bottom pipe which will fix the
sliding and/or turning problem. Please refer to
Figure 2 where the memory lock is. Please see
YouTube video URL
https://youtu.be/Z_aM3p10aiU
Step 5 – For safety reasons, please always make
sure to test the stability and safety of the product
before use. Double check all nuts and bolts, knobs
and connectors, make sure that these are tight
and securely fastened before use of your product.
Test the product under light use or light loads the
first time to confirm assembly and structure of the
product is correct.
