DELUGE
VALVE
Specify: (specify size), Model F470 External Resetting Deluge Valve , PSN (specify).
4 Inch (100 mm) . . . . . . . . . . . . PSN 52-470-l-013
77 Ibs. (34,Q kg)
6 Inch (150 mm) . . . . . . . . . . . PSN 52-470-l-015
111 Ibs. (%I,3 kg)
Specify: (specify size), (specify model) Check Valve, PSN (specify).
SWING
CHECK
VALVE
4 Inch (100 mm), Model F520 Flange x Flange PSN 52-520-l-013
62 tbs. (26,l kg)
6 Inch (150 mm), Model F520 Flange x Flange PSN 52-520-l-015
93 Ibs. (42,2 kg)
4 Inch (100 mm), Model F5201 Flange x Groove . . PSN 52-520-l-413
51 Ibs. (23,l kg)
6 Inch (150 mm), Model F5201 Flange x Groove . . PSN 52-520-I-615
76 Ibs. (35,4 kg)
ELECJPNEUMATIC
DOUBLE
INTERLOCK
PREACTION TRIM
Specify: (specify Black or Galvanized) 4 and 6 inch (100 and 150 mm) Electric/Pneumatic
Double Interlock Preaction Trim, PSN (specify).
‘Standard Order’ Black . PSN 52-470-l-100
26 Ibs. (11,6 kg)
“Special Order” Galvanized . . . PSN 52-470-2-l 00
26 Ibs. (ii,6 kg)
ACTUATION
TRIM
Specify: Factory assembled* (specify black or galvanized), Wet Pilot Actuation Trim for use
with the Model F470 External Resetting Deluge Valve, PSN (specify)
“Standard Order” Black . . . . PSN 52-470-l-101
28 Ibs. (12,7 kg)
‘Special Order” Galvanized . . . . PSN 52-470-2-101
28 Ibs. (12,7 kg)
* The actuation trim is factory assembled as shown in TDI 16. Unassembled trim can be
provided on “special order”.
AUTOMATIC
PRESSURE
MAINTENANCE
DEVICE
(recommended)
Select one of the following three options and specify: (product name), PSN (specify).
Model F324 Air Maintenance Device (Pressure Reducing Type) . .
PSN 52-324-I-002
6.5 Ibs. (2,Q kg)
Model F326 Air Maintenance Device (Compressor Control Type) . PSN 52-326-l-001
8.5 Ibs. (3,8 kg)
Model F328 Nitrogen Maintenance Device . . . PSN 52-328-l-001
3.7 Ibs. (1,5 kg)
ACCELERATOR
(as applicable)
Specify: Double Interlock Accelerator Trim complete with F311 Accelerator,
PSN 52-470-I -200.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

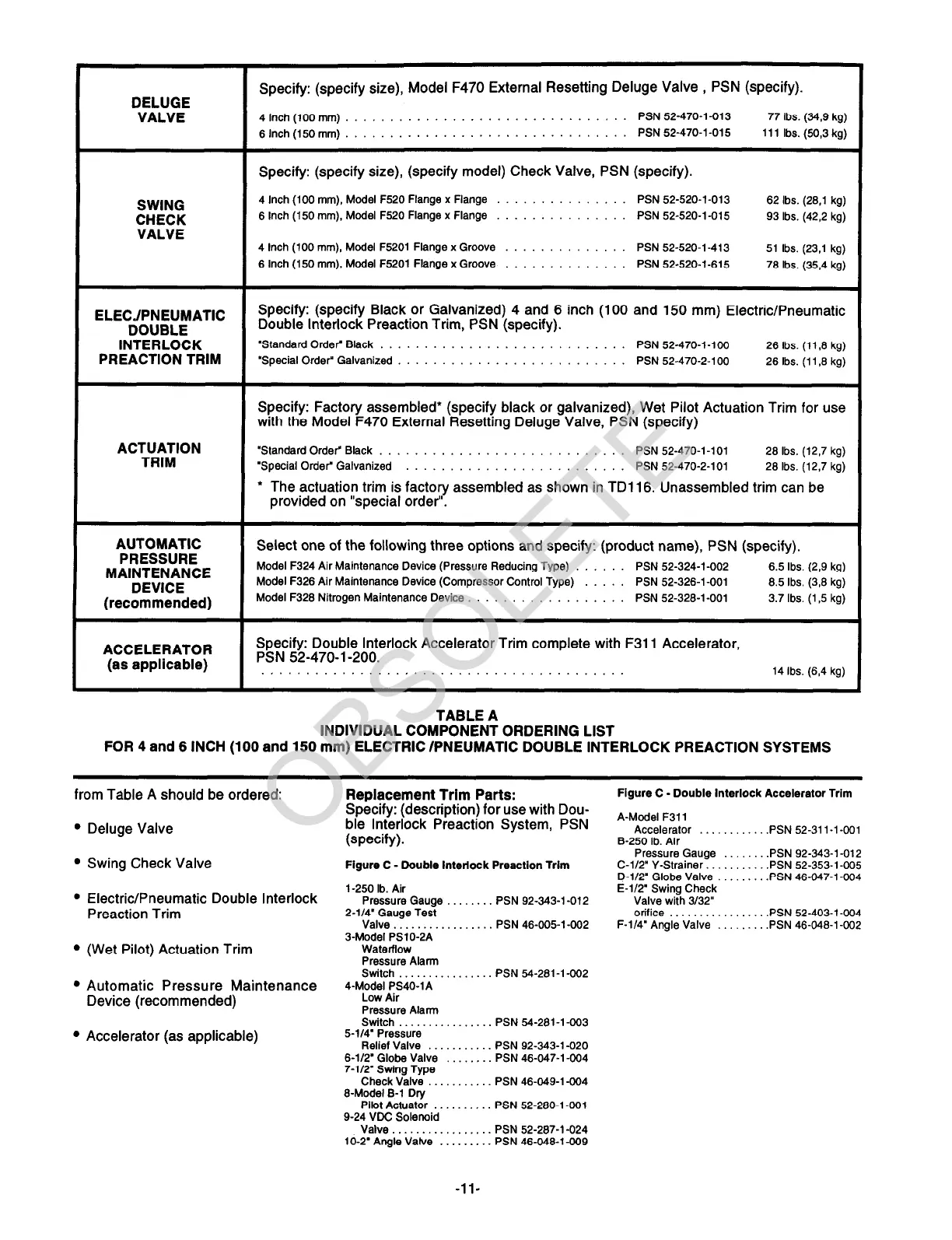

TABLE A
14 Ibs. (6,4 kg)
INDIVIDUAL COMPONENT ORDERING LIST
FOR 4 and 6 INCH (100 and 150 mm) ELECTRIC /PNEUMATIC DOUBLE INTERLOCK PREACTION SYSTEMS
from Table A should be ordered:
l Deluge Valve
l Swing Check Valve
l Electric/Pneumatic Double Interlock
Preaction Trim
l (Wet Pilot) Actuation Trim
l Automatic Pressure Maintenance
Device (recommended)
l Accelerator (as applicable)
Replacement Trim Parts:
Specify: (description) for use with Dou-
ble Interlock Preaction System, PSN
(specify).
Figure C - Double Interlock Preaction Trim
l-250 lb. Air
Pressure Gauge . . . . PSN 92-343-l-012
2-114’ Gauge Test
Valve . . . . . . . . . . PSN 46-005-l-002
3-Model PSlO-PA
Waterflow
Pressure Alarm
Switch . . PSN 54-281-l-002
4-Model PS40-1A
Low Air
Pressure Alarm
Switch PSN 54-281-l -003
5-114’ Pressure
Relief Valve . . . PSN 92-343-l -020
6-l/2’ Globe Valve . PSN 46-047-l -004
7-112’ Swing Type
Check Valve . PSN 46-049-l -004
8-Model B-1 Dry
Pilot Actuator . . PSN 52-280-l -001
9-24 VDC Solenoid
Valve . . . . . . . . PSN 52-287-l -024
10-2’ Angle Valve . . . . . . . . . PSN 46-048-l-009
Figure C - Double Interlock Accelerator Trim
A-Model F311
Accelerator . .PSN 52-31 l-l-001
B-250 lb. Air
Pressure Gauge .PSN 92-343-l-012
C-1/2” Y-Strainer. .PSN 52-353-l-005
D-112’ Globe Valve . .PSN 46-047-l-004
E-1/2’ Swing Check
Valve with 3/32”
orifice .PSN 52-403-I-004
F-1/4’ Angle Valve .PSN 46-048-l -002
