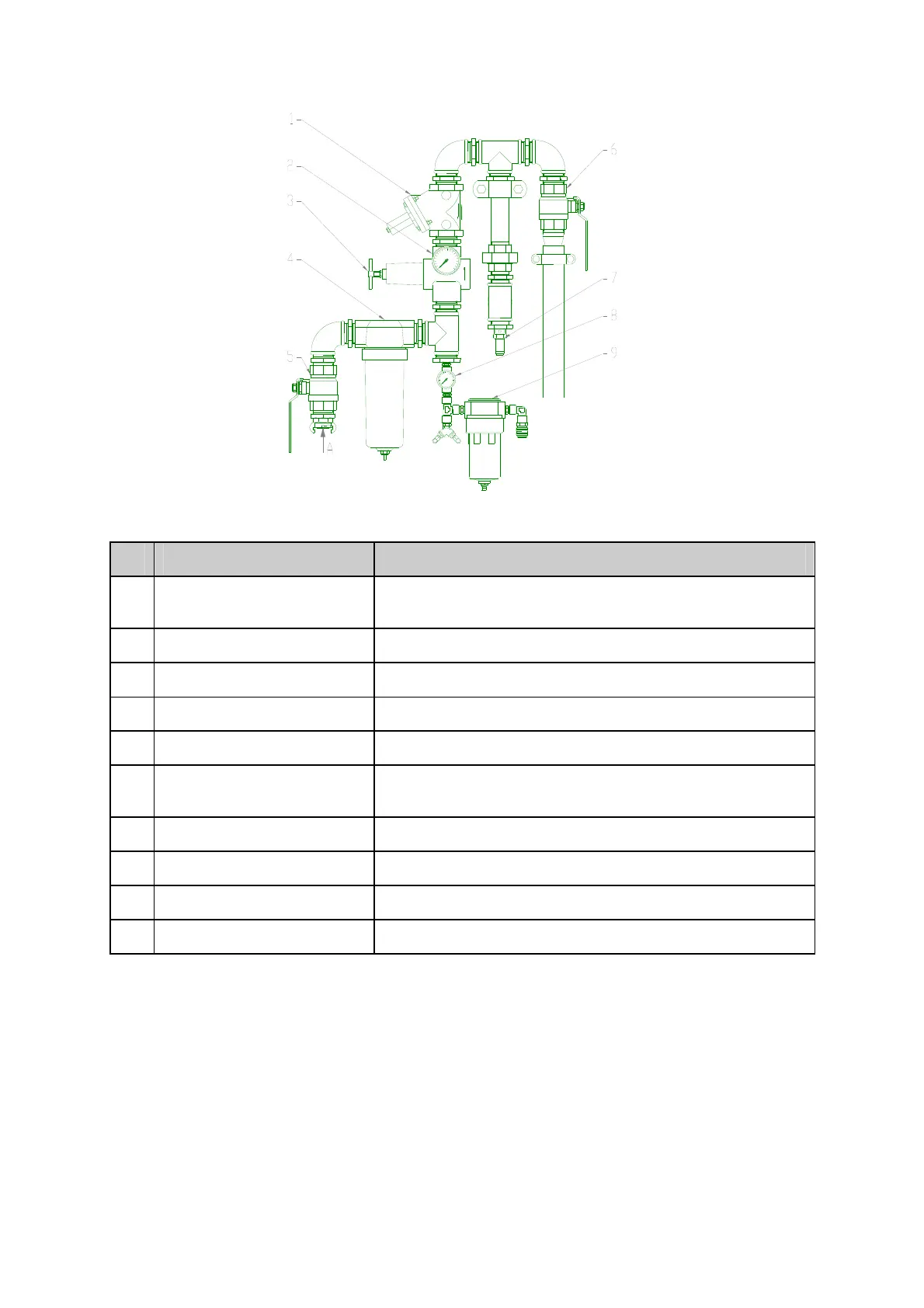

# Item description Function
01
Main air valve Controlled by the control system to start and stop blasting.
Pressurising the vessel and start/stop of transportation air flow.
02 Pressure gauge (option R)
Indicates the set pressure by the pressure reducer.
03 Pressure reducer (option R) To set the wanted blasting pressure.
04 Compressed air filter (option F) Takes out last bits of dirt and moisture from the compressed air.
05
System ball valve Pressurises the machine.
06
Choke valve Shuts of transportation air (no blasting pressure) for ‘pushing’
small blockages through the abrasive metering valve.
07
Safety valve Avoids a too high pressure of the tank (10 bar)
08
Gauge system pressure Indicates the system pressure (from compressor).
09 Helmet air filter (option H) Removes the oil odour from the compressed air.
A Claw coupling Connects the machine to the compressed air line.
