-48-
Model G0453Z/G0454Z (Mfg. 1/09+)

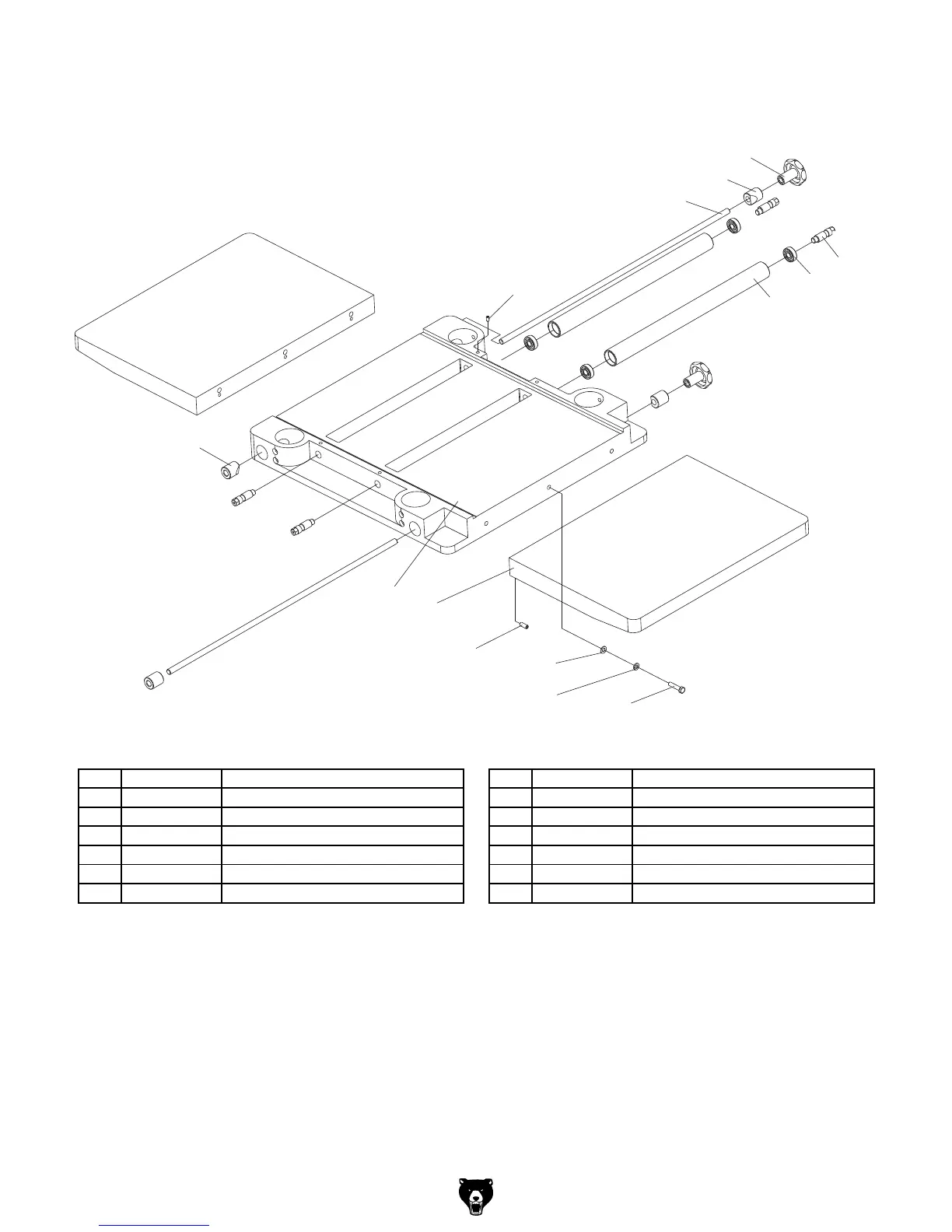

G0453Z Table
201
202
203
204
209
207
208
205
210
214
212
211
213
206
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P0453Z201 TABLE/BED 208 P0453Z208 LOCK BAR
202 P0453Z202 ROLLER 209 P0453Z209 FEMALE KNOB M12-1.75
203 P0453Z203 BALL BEARING 608-2RS 210 P0453Z210 EXTENSION WING
204 P0453Z204 ECCENTRIC SHAFT 211 P0453Z211 LOCK WASHER 8MM
205 P0453Z205 SET SCREW M6-1 X 16 212 P0453Z212 FLAT WASHER 8MM
206 P0453Z206 GIB 213 P0453Z213 HEX BOLT M8-1.25 X 30
207 P0453Z207 WEDGE DOG 214 P0453Z214 SET SCREW M8-1.25 X 20
