-57-
Model G0453Z/G0454Z (Mfg. 1/09+)

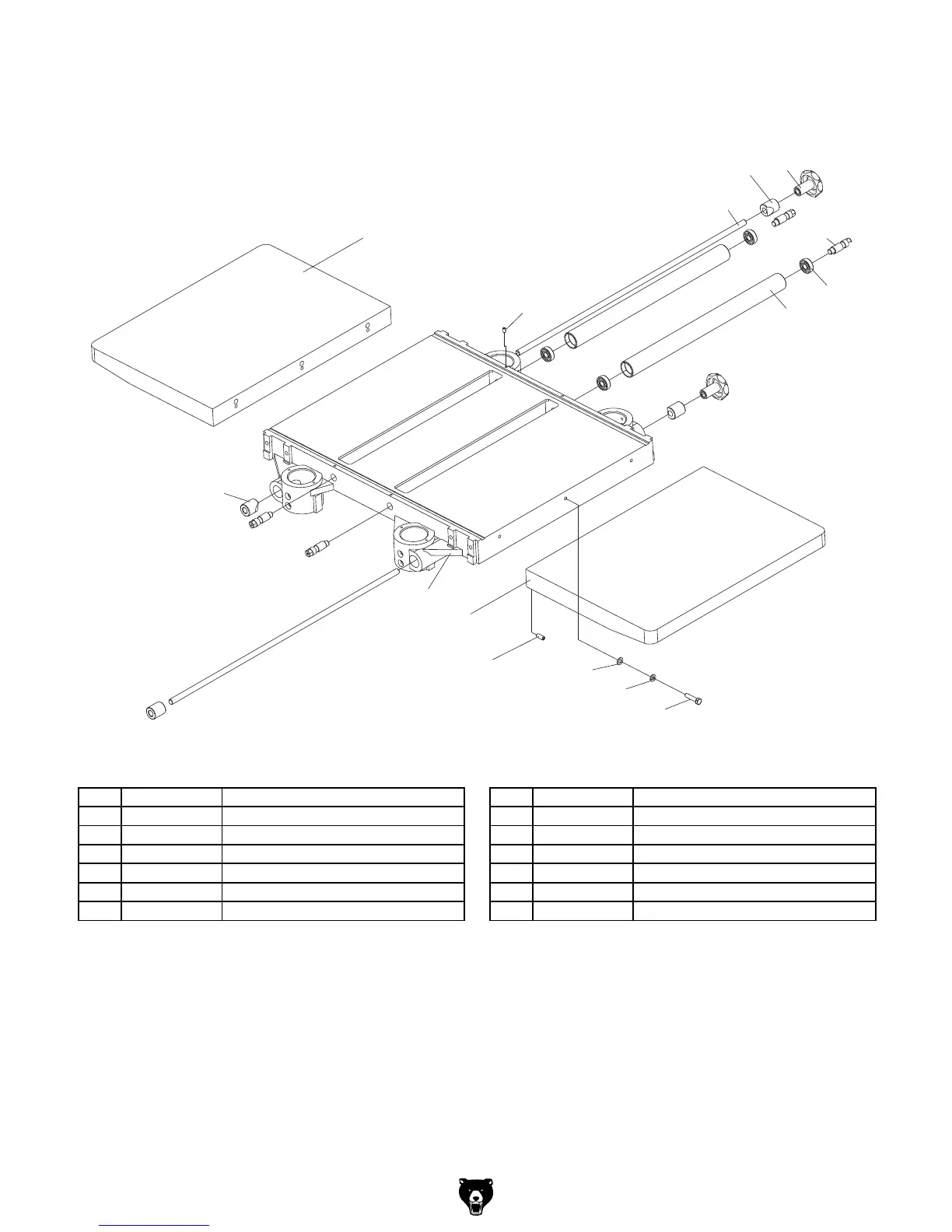

G0454Z Table
201
202
203
204
209
207
208
205
210
210
214
212
211
213
206
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P0454Z201 MAIN TABLE 208 P0454Z208 LOCK BAR
202 P0454Z202 ROLLER 209 P0454Z209 FEMALE KNOB M12-1.75
203 P0454Z203 BALL BEARING 6201ZZ 210 P0454Z210 EXTENSION WING
204 P0454Z204 ECCENTRIC SHAFT 211 P0454Z211 LOCK WASHER 8MM
205 P0454Z205 SET SCREW M6-1 X 12 212 P0454Z212 FLAT WASHER 8MM
206 P0454Z206 GIB 213 P0454Z213 HEX BOLT M8-1.25 X 35
207 P0454Z207 WEDGE DOG 214 P0454Z214 SET SCREW M8-1.25 X 20
