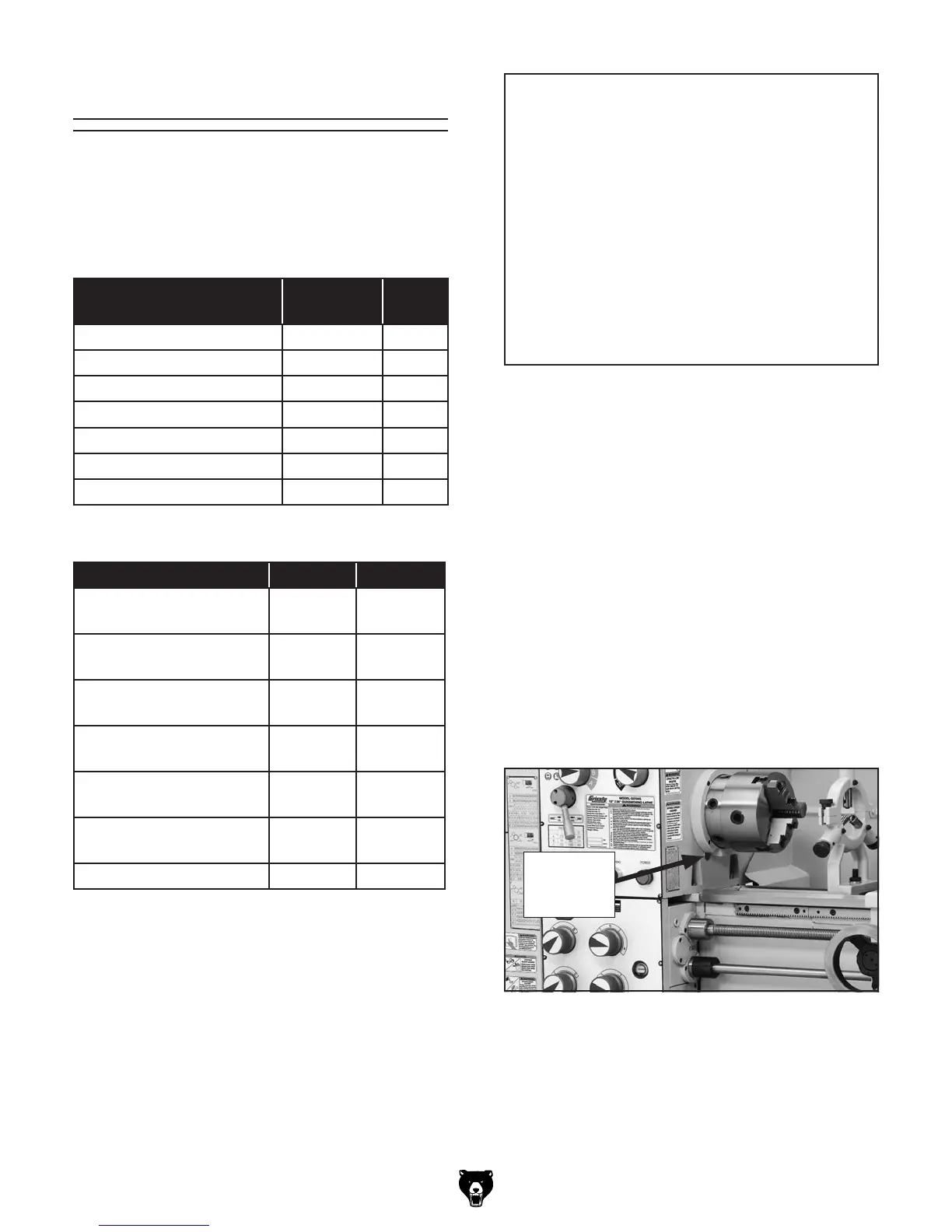

-62-
Model G0750G (Mfg. Since 11/12)
Lubrication
Use the information in the charts below as a daily
guide for lubrication tasks. We recommend using
Grizzly Model T23962 or T23963 lubricants (see
Page 57) for most of the lubrication tasks.
NOTICE
The recommended lubrication is based on
light-to-medium usage. Keeping in mind
that lubrication helps to protect the value
and operation of the lathe, these lubrication
tasks may need to be performed more fre-
quently than recommended here, depend-
ing on usage.
Failure to follow reasonable lubrication
practices as instructed in this manual could
lead to premature failure of lathe compo-
nents and will void the warranty.
Headstock
Oil Type .... Grizzly T23963 or ISO 32 Equivalent
Oil Amount .......................................... 3.5 Quarts
Check/Add Frequency ................................. Daily
Change Frequency ....................... Semi-Annually
The headstock gearing is lubricated by an oil bath
that distributes the lubricant with the motion of the
gears, much like an automotive manual transmis-
sion. Change the oil after the first 2 hours of use,
then semi-annually.
Checking Oil Level
The headstock reservoir has the proper amount of
oil when the oil level in the sight glass is approxi-
mately halfway. The oil sight glass is located
below the chuck, as shown in Figure 106.
Figure 106. Location of headstock oil sight
glass.
Headstock
Oil Sight
Glass
Lubrication Task Frequency
Page
Ref.
Headstock Daily
63
Quick-Change Gearbox Daily
63
Apron Daily
64
Bedways Daily
64
Longitudinal Leadscrew Daily
64
Ball Oilers Daily
65
End Gears Annually
66
Lubrication Frequency
Lubrication Task Oil Type Amount
Headstock
ISO 32
(T23963)
3.5 Qts.
Quick-Change Gearbox
ISO 68
(T23962)
1 Qt.
Apron
ISO 68
(T23963)
0.5 Qt.
Bedways
ISO 68
(T23963)
As
Needed
Longitudinal Leadscrew
ISO 68
(T23963)
As
Needed
Ball Oilers
ISO 32
(T23963)
1–2
Squirts
End Gears NLGI #2
Dab
Lubrication Amount & Type
