Grizzly G1066R User Manual

-50-
Model G1066R/Z/G1079R (Mfd. Since 02/11)
READ ELECTRICAL SAFETY
ON PAGE 33!

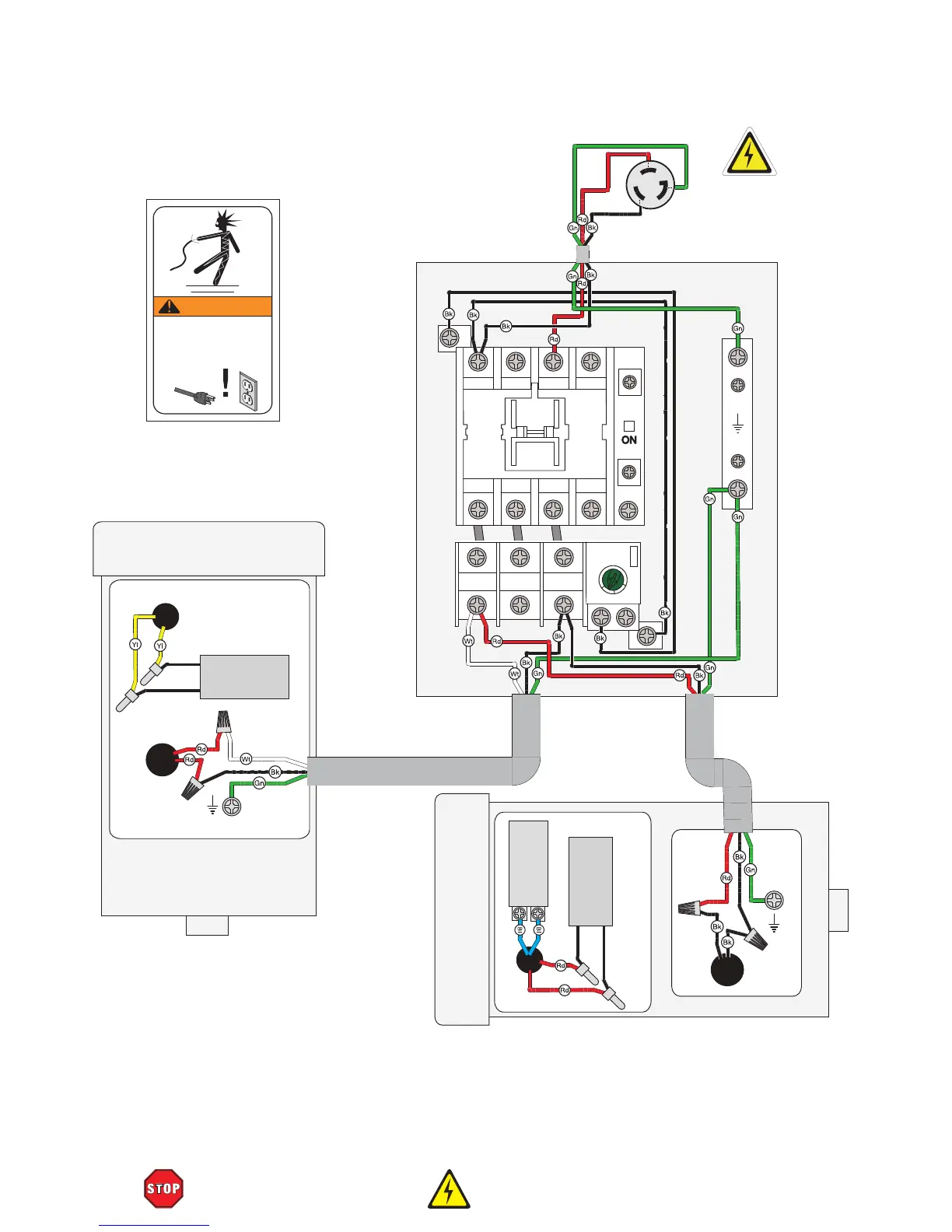

G1066R Wiring Diagram
G
X
Y
Ground
Hot
Hot
220 VAC
L6-30 PLUG
(As Recommended)
Feed Motor
Run Capacitor
12uF 350VAC
Motor Junction Box
Ground
Drum
Motor
Motor Junction Box
GND
MAGNETIC
SWITCH
ASSEMBLY
A
B
AMP
RA-20
RESET
96
98
1/2
T1/2 T3/6 N014
3/4
T2/4
L1/1 L3/5L2/3
5/6
95
18
22
26
OFF
N013
Run Capacitor
50uF 350VAC
GND
Start Capacitor
600MFD 125VAC
WARNING!
SHOCK HAZARD!
Disconnect power
before working on
wiring.
