Model G1066R/Z/G1079R (Mfd. Since 02/11)
READ ELECTRICAL SAFETY
ON PAGE 33!

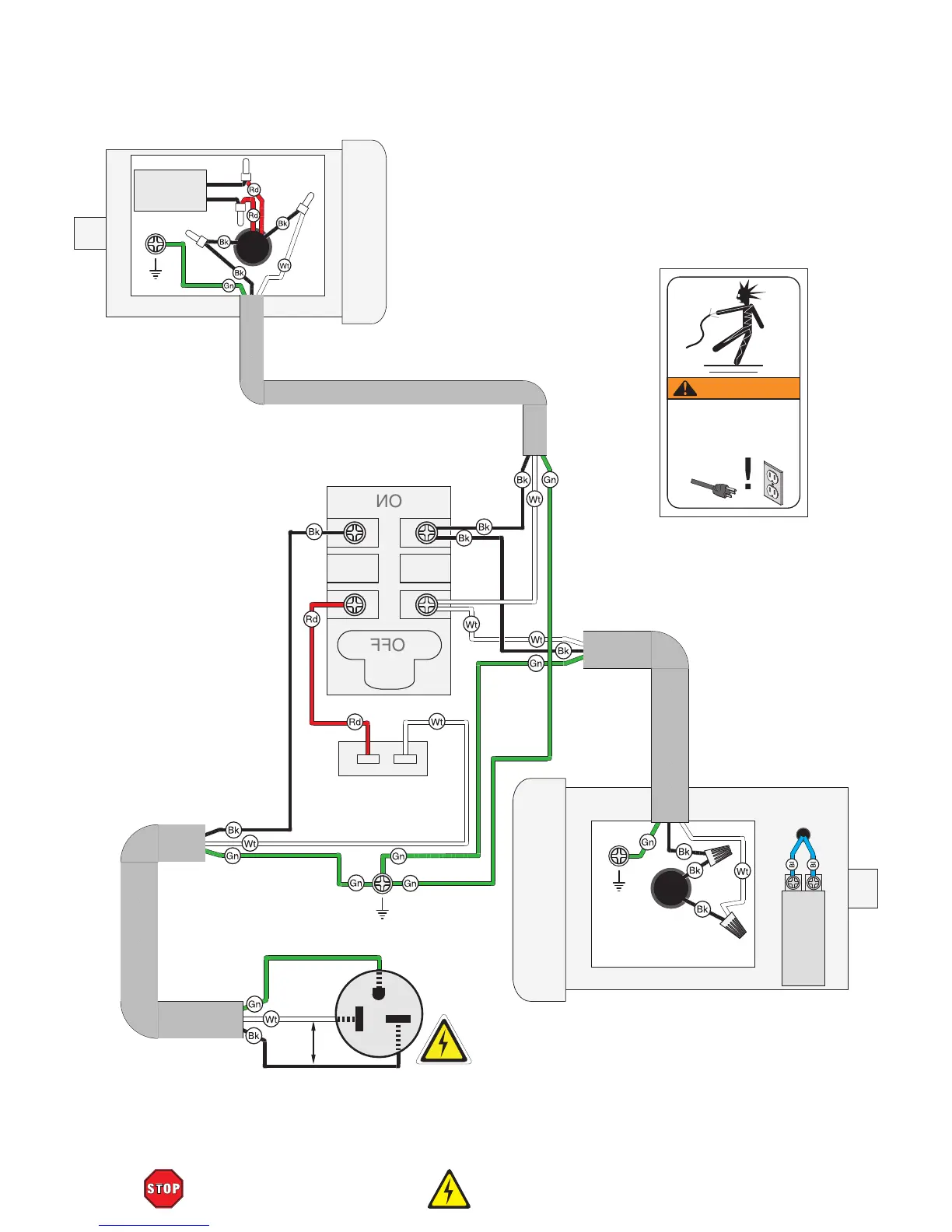

G1079R Wiring Diagram
Hot
Hot
Ground
6-20 Plug
(As Recommended)
220
VAC
ON
OFF
DRUM MOTOR
FEED MOTOR
THERMAL CIRCUIT
BREAKER
(viewed from behind)
ON/OFF SWITCH
(viewed from behind)
Ground
G
Ground
R Capacitor
12uF
350VAC
Ground
Start Capacitor
400MFD 125VAC
WARNING!
SHOCK HAZARD!
Disconnect power
before working on
wiring.
