-6-
Model G1066R/Z/G1079R (Mfd. Since 02/11)
Controls &
Components
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.

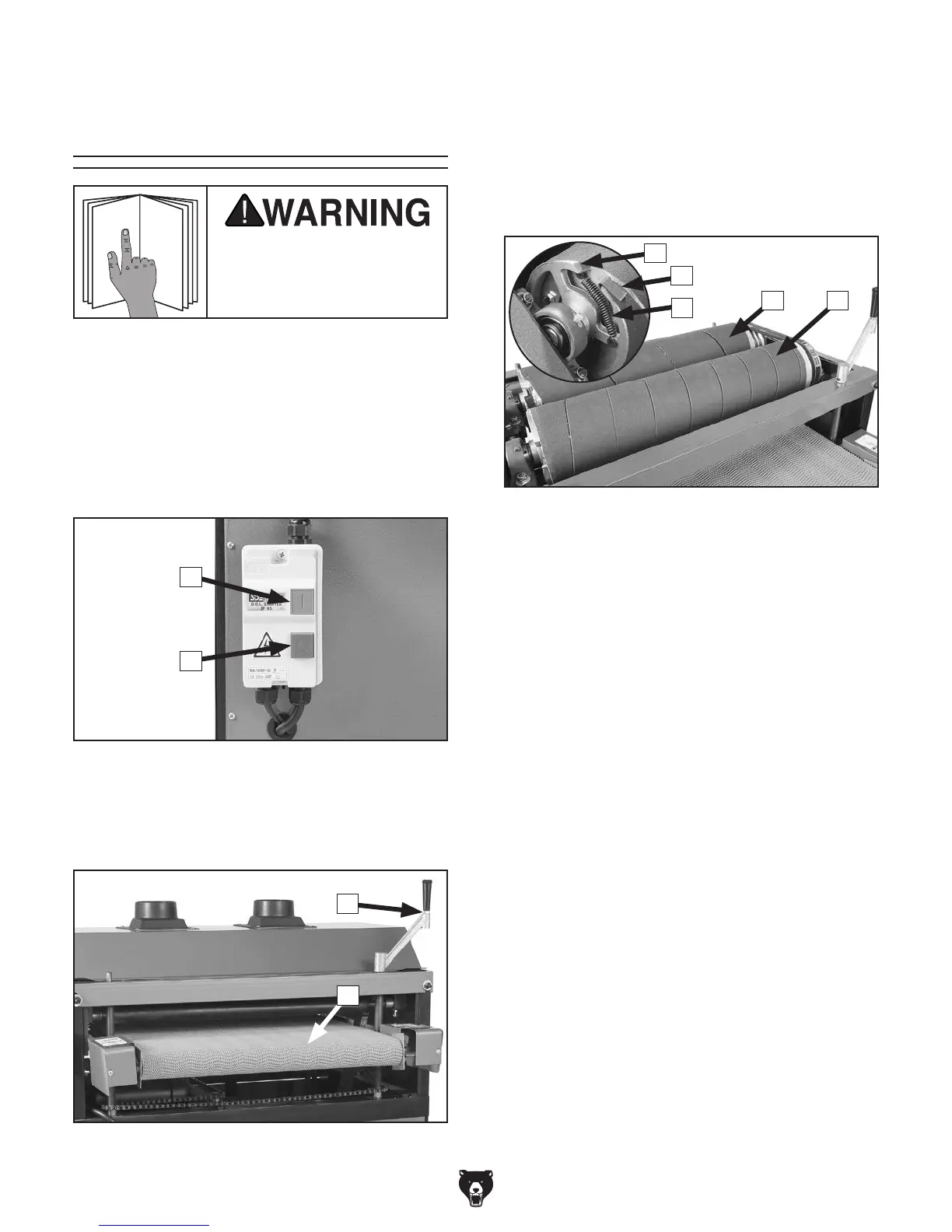

Figure 45. G1066R—ON/OFF controls.
A
B
A. ON Button: Push to start motor.
B. OFF Button: Push to stop motor.
Refer to Figures 45–47 and the following descrip-
tions to become familiar with the basic con-
trols and components of the Model G1066R.
Understanding these items and how they work will
help you understand the rest of the manual and
stay safe when operating this machine.
G1066R
C. Table Height Crank Handle: Rotate to
raise or lower conveyor table according to
workpiece thickness.
D. Conveyor Table w/Belt (Infeed End):
Height-adjustable table with conveyor belt
that feeds workpieces toward sanding drums.
Figure 46. G1066R—front controls.
C
D
Figure 47. G1066R—drum components.
G
F
E
IH
E. Tension Wheel: Tensioned anchor point for
end of sandpaper roll.
F. Sanding Paper Clip: Secures end of sand-
paper roll to tension wheel.
G. Tension Spring: Supplies tension between
sanding drum and tension wheel.
H. Outfeed (Rear) Sanding Drum: Cylindrical
drum with machined surface that is covered
in felt. Typically wrapped with fine grit sand-
paper to perform finish sanding portion of
operation.
I. Infeed (Front) Sanding Drum: Cylindrical
drum with machined surface. Typically
wrapped with coarse grit sandpaper to per-
form thickness sanding portion of operation.
