Grizzly G1163P User Manual

Model G1163P (Mfd. Since 7/15)
-13-
Box 1: Qty
A. Collector Body and Fan/Motor Assembly
(Not Shown) ................................................ 1
B. Base Plate .................................................. 1
C. Casters ....................................................... 4
D. Collection Bag ............................................ 1
E. Bag Clamp .................................................. 1
F. Foam Strip 4 x 20 x 430mm ....................... 1
Site Considerations

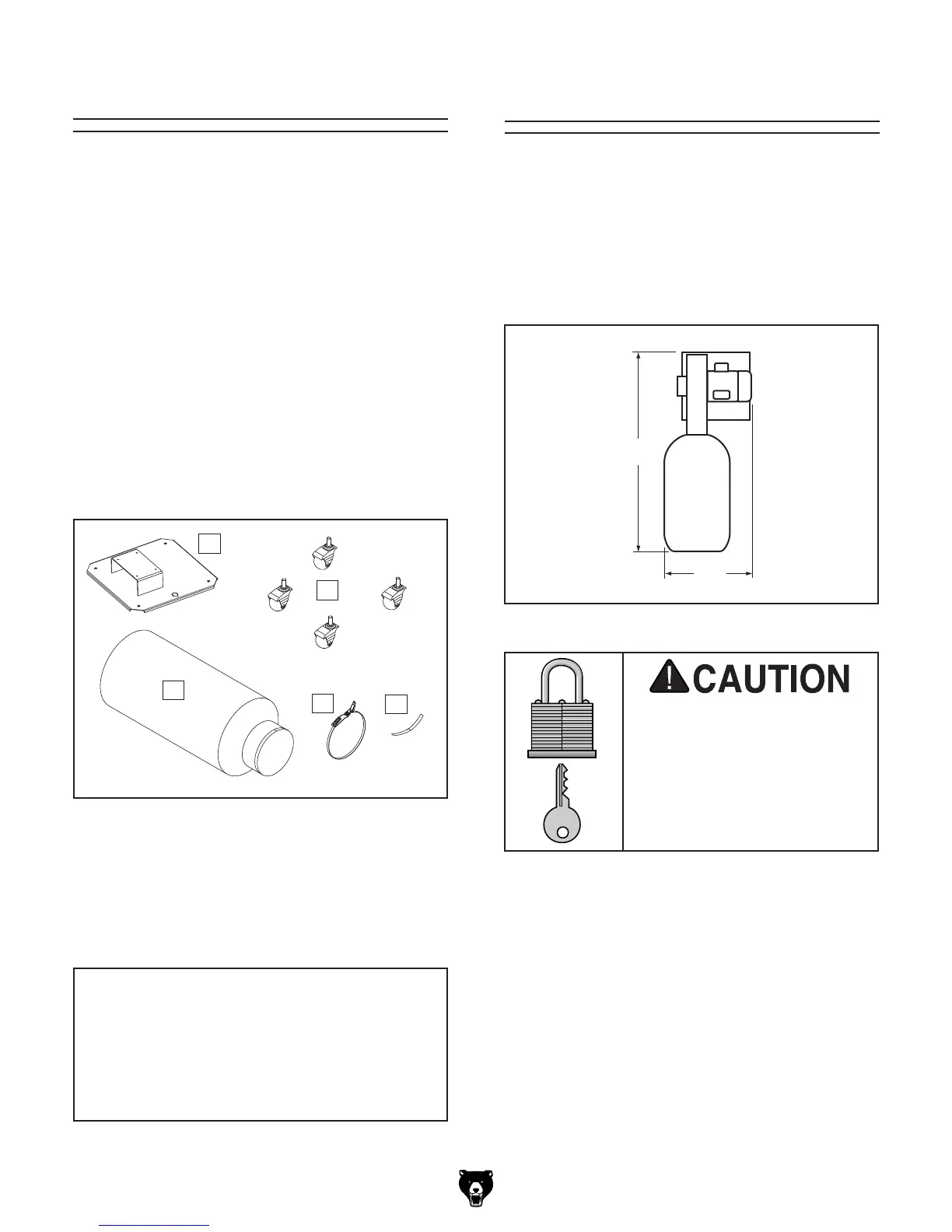

Figure 6. Minimum working clearances.
44"
18"
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
Hardware and Tools (and Location)
• Acorn Nuts
5
⁄16"-18 (Casters) ....................... 4
• Flat Washers
5
⁄16" (Casters) ........................ 4
• Flange Bolts
1
⁄4"-20 X
1
⁄2" (Fan/Motor) ........ 4
• Open-End Wrench 10 x 12mm ................... 1
Figure 5. Model G1163P inventory.
B
C
D
E
F
Consider anticipated workpiece sizes and addi-
tional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the
machine.
Placement Location
Children and visitors may be
seriously injured if unsuper-
vised around this machine.
Lock entrances to the shop
or disable start switch or
power connection to prevent
unsupervised use.
