Grizzly G9849 User Manual

© 2002 Grizzly Industrial, Inc.462402622
Dial IndicatorMagnetic Base

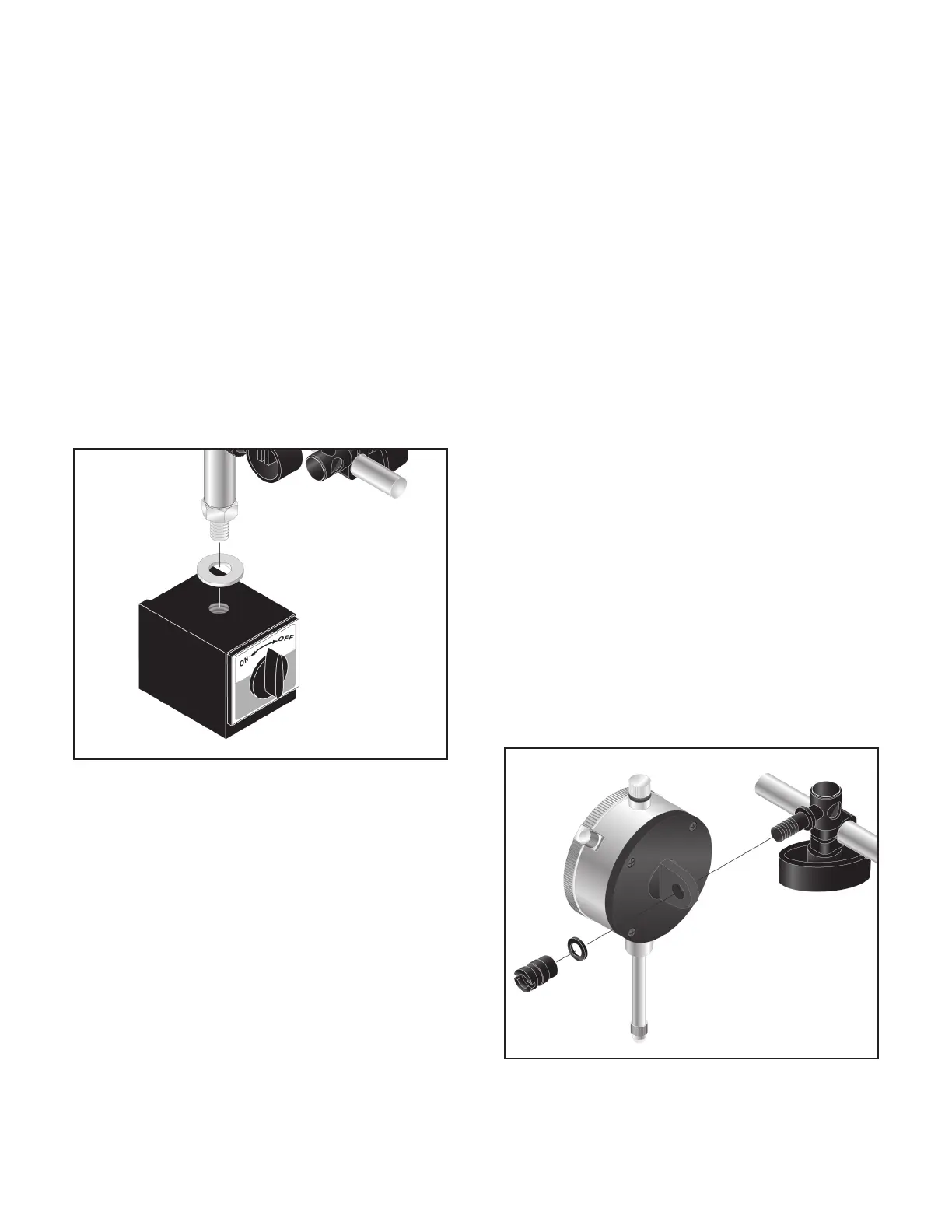

Figure 4. Mounting the indicator onto the
mounting stud.
Figure 3. Mounting the column.
The indicator must be secured to the base prior to
use. Please refer to Figure 4 while reading these
instructions.
1. Loosen the lock knob that secures the
mounting stud to the boom and remove the
stud.
2. Unscrew and remove the knurled nut and flat
washer from the mounting stud, and insert
the threaded end of the stud into the flange
on the back of the dial indicator.
The stud can be inserted from the left- or the
right-hand side, depending on your mounting
needs.
3. Attach the washer and thread the knurled nut
back onto the threads on the stud. Insert the
plain end of the stud into the pivot joint. Be
mindful that this pivot joint has 2 holes and
only one is sized correctly for the stud. Also,
it may be necessary to rotate the sleeve on
the pivot joint to correctly align the parts so
the stud can be inserted.
4. Tighten the lock knob for the pivot joint.
5. Tighten the knurled nut with a flat blade
screwdriver to lock the dial into place.
The magnetic base supports the column and the
mounting assembly. To assemble the column to
the base:
1. Locate the flat washer in the package con-
taining the column/mounting assembly and
attach the washer to the threaded end of the
column.
2. Thread the column into the threaded hole
on the top of the magnetic base until it stops
turning.
3. Finish tightening the column by turning the
jam nut with an
11
⁄16" wrench.
-2-
