Grizzly H6264 - Parts Breakdown and List

5
6
4
16
1
8
9
10
11
12
13
15
2

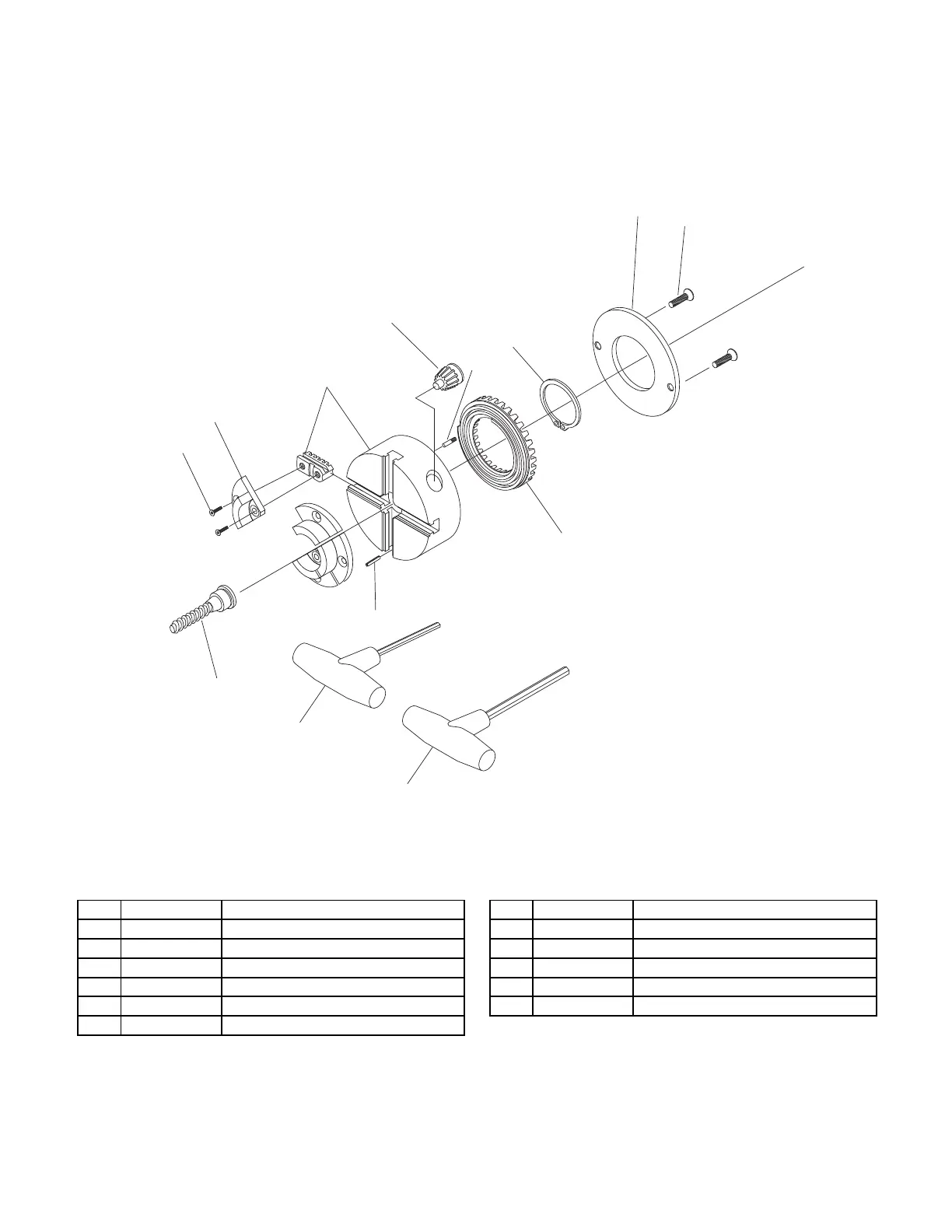

H6264, H6265, H6266, H6267, H7820 Parts
Breakdown and List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PFH31M FLAT HD SCR M4-.7 X 8 10 PH6266010 TAPER HEAD SCREW M5-.8 X 12
2 PH6264002 BACKING PLATE 11 PH6264011 WOOD SCREW (SPECIAL)
4 PR43M EXT RETAINING RI NG 50MM 12 PH6264012 T-HANDLE HEX WRENCH 3MM
5 PH6264005 SCROLL RING 13 PH6264013 T-HANDLE HEX WRENCH 8MM
6 PH6264006 PINION 15 PH6264015 STOP PIN
8 PH6264008 BACKING JAWS W/ CHUCK BODY 16 PH6264016 LOCK PIN M5-.8 X 6 X 20
9 PH6264009 CHUCK JAWS (QTY 4)
