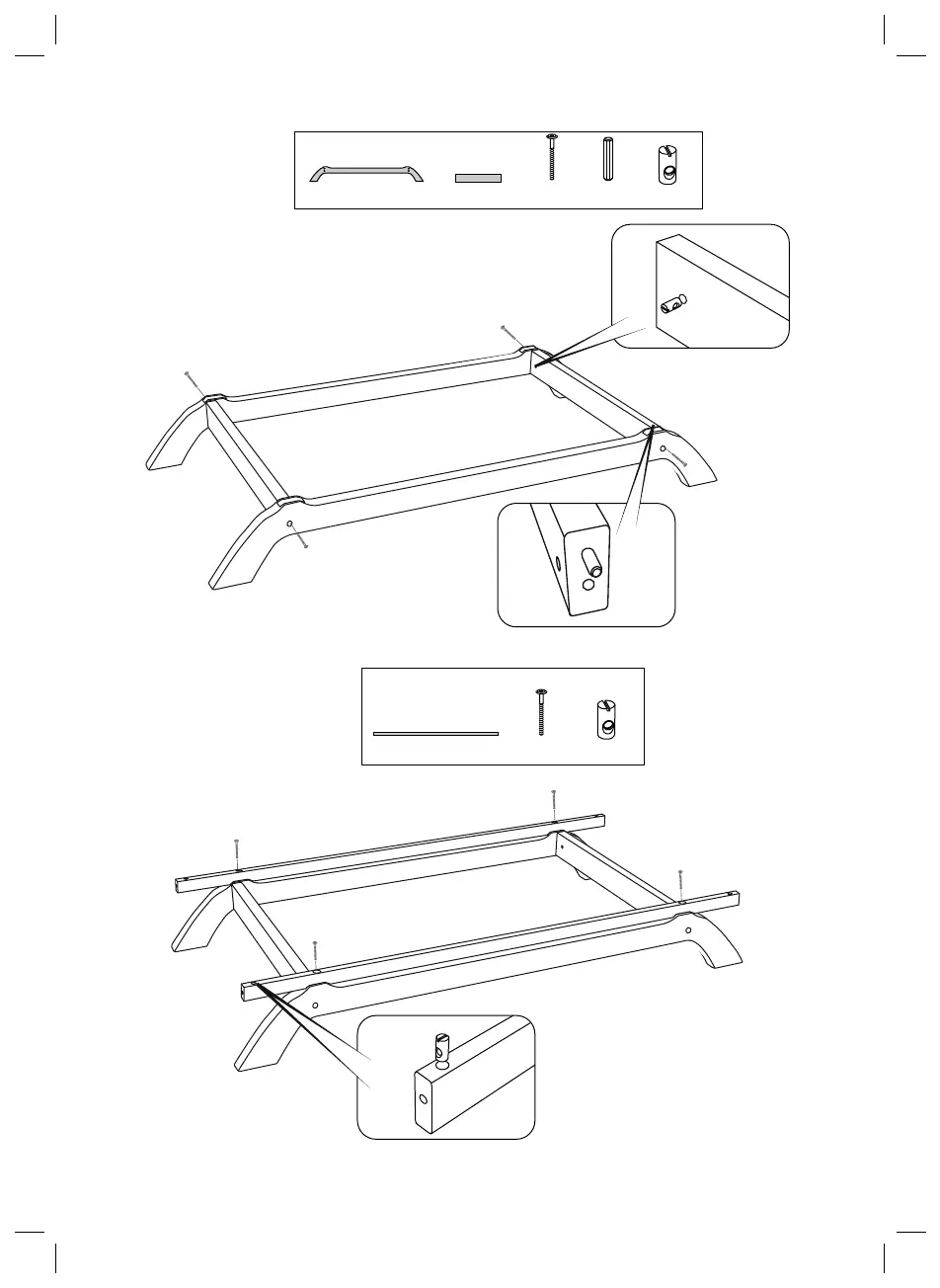

STEP 1
ASSEMBLE COT PLINTH
x4x2x2
70mm Bolts
HA
STEP 2
ASSEMBLE CONNECTING RAILS
Push the insert nut into the connecting rails
with slot showing. Use this slot to align holes.
3
Plinth End Panels
DB
DA
Plinth Side Panels
x4x2
55mm Bolts
HB
Connecting Rails
DC
Insert Nuts
HC
x4
x4
Wood Pins
HD
Insert wood pins into the end panels
Push the insert nut into the
end panel with slot showing.
Use this slot to align holes.
Insert Nuts
HC
x4
To Next Page
