GROUND FORCE 717H01 - Page 25

2/21/2017 785C Off-Highway Truck APX00001-UP (MACHINE) POWERED BY 3512B Engine(SEBP3021 - 162) - Documentation
https://sis.cat.com/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/mediasearch/mediaheaderinfoframeset.jsp&calledpage=/sisweb/s…
2/3
Illustration 1 g01220180
LOWER (1) - Hold the hoist control lever
completely forward in order to lower the
dump body. When the hoist control lever is
released, the hoist control lever will return to
the FLOAT position (2).
FLOAT (2) - When the hoist control lever is
in FLOAT position (2), the dump body will
seek a level. The hoist control will stay in this
position until the hoist control lever is
manually moved.
HOLD (3) - When the hoist control is in
HOLD position (3), the dump body will not
move. The hoist control will stay in this
WWW.GFWORLDWIDE.COM | +1 (208) 664-9291

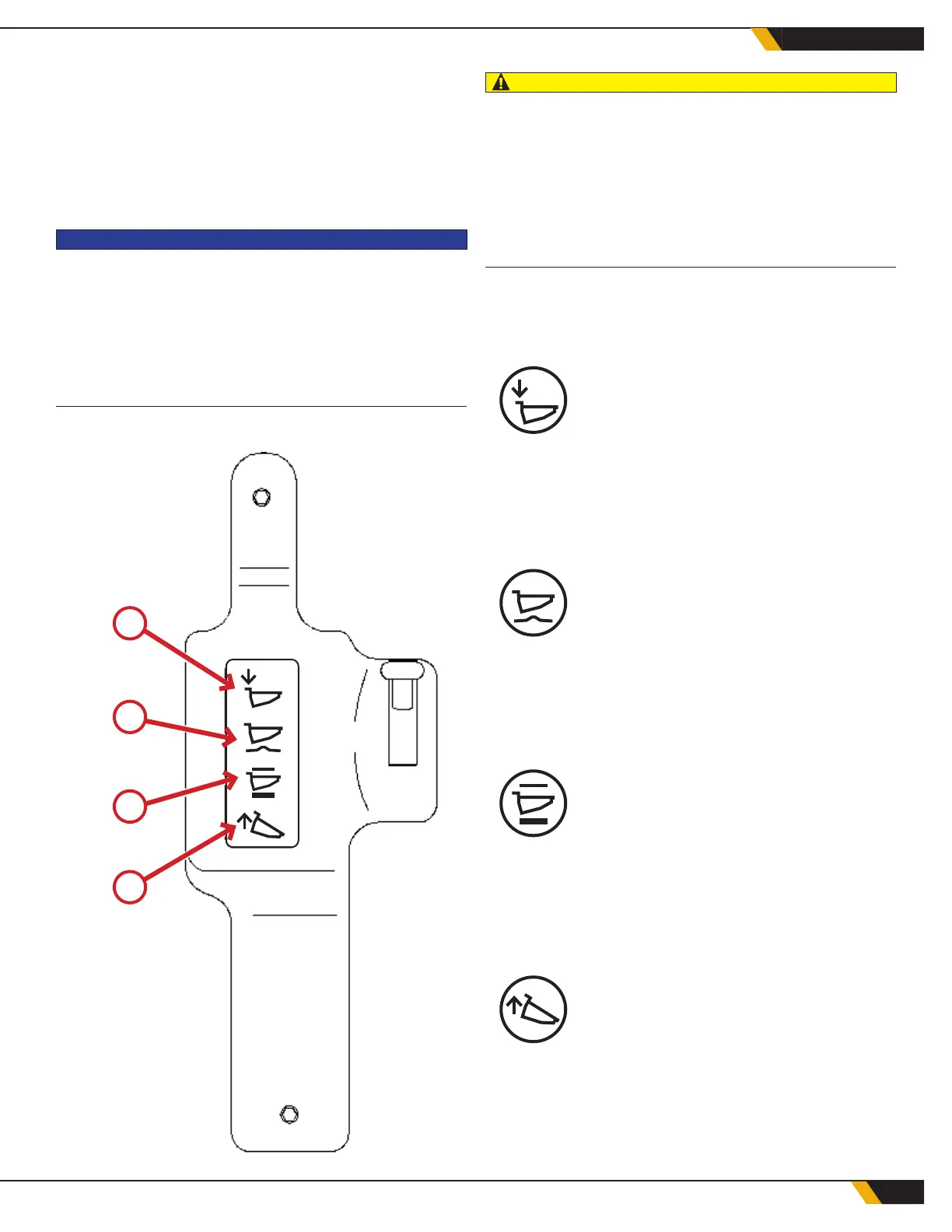

1
2
3
4
LOWER (1)
Hold the hoist control lever completely
forward in order to lower the water tank.
When the hoist control lever is released,
the hoist control lever will return to the
FLOAT position (2).
FLOAT (2)
When the hoist control lever is in FLOAT
position (2), the water tank will seek a
level. The hoist control will stay in this
position until the hoist control lever is
manually moved.
HOLD (3)
When the hoist control is in HOLD posi-
tion (3), the water tank will not move.
The hoist control will stay in this position
until the hoist control lever is manually
moved.
RAISE (4)
Hold the hoist control lever completely
backward in order to raise the water
tank. When the hoist control lever is
released, the hoist control lever will
return to HOLD position (3).
4.10 WATER TANK RAISE & LOWER
PROCEDURE
Raising and lowering a Ground Force Worldwide water
tank is very similar to operating a Caterpillar dump
bed, but there are some special considerations.
Please read the following instructions carefully.
NOTICE
Drain the water tank.
The water pump controls must be turned off in the
Ground Force Water Control System.
Remove the quick ll plumbing.
Enable the hoist control in the ECM.
CAUTION
The Ground Force Worldwide water tank design has different
tail clearances from a Caterpillar dump bed.
While tipping, closely observe the tank during operation
of the raise function to prevent damage to the tank or sur-
roundings. Remove anything that might interfere with raising
the tank.
25
OPERATION
