GRS BenchMate - Page 4

004-109
BenchMate
®

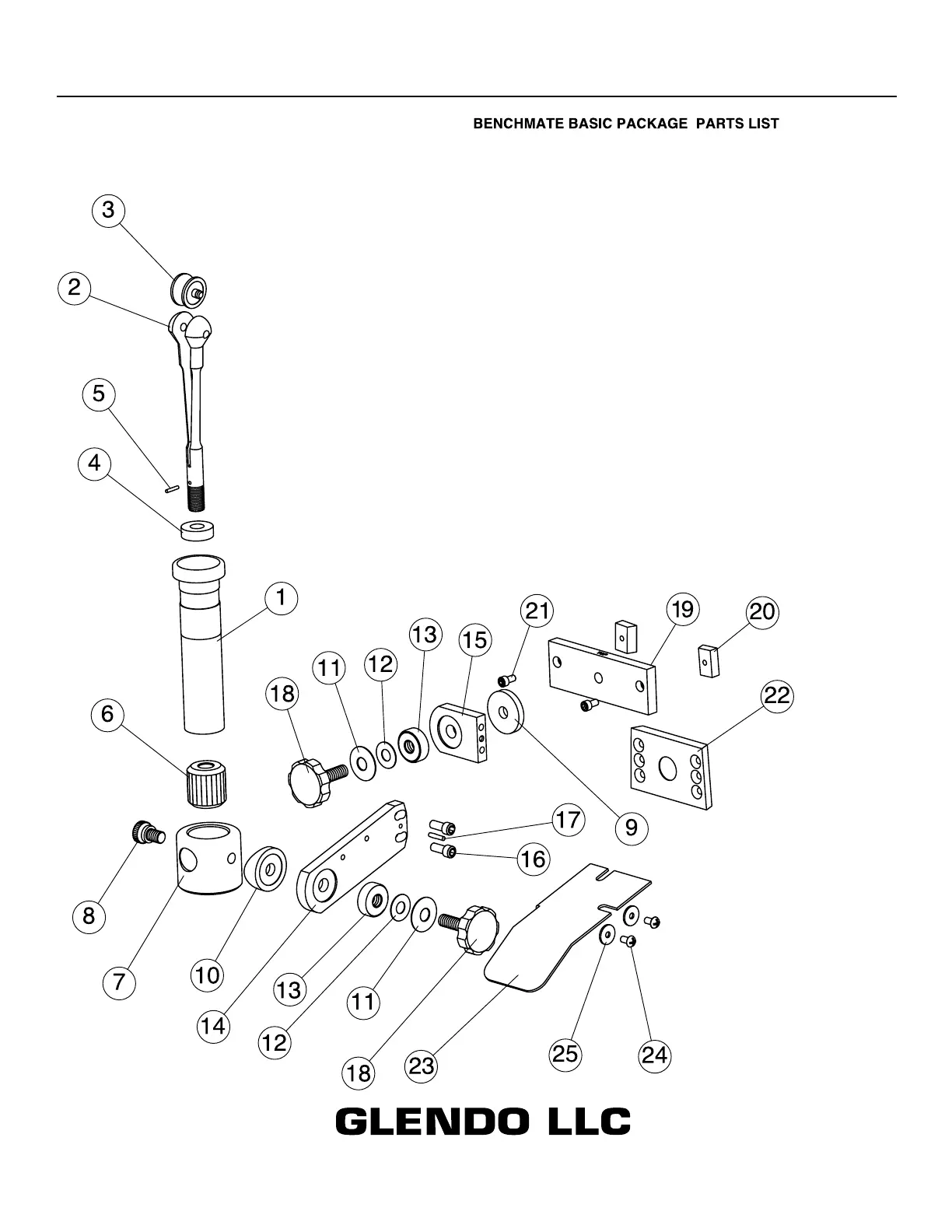

Parts List
ITEM NO. PART NO. DESCRIPTION
1 004-095 TUBE
2 004-096 CLAMP JAW
3 004-090 JAW INSERT
4 004-126 SEAL
5 002-769 PIN, DRIV-LOK 3/32 X 1/2 TP E
6 004-092 CLAMP KNOB, DRAW DOWN
7 004-088 COLLAR
8 002-513 SCREW, THUMB
9 004-089 WASHER, FLAT FRICTION
10 004-091 FRICTION WASHER
11 002-511 SPRING, DISC
12 022-193 WASHER
13 002-510 BEARING, THRUST
14 004-298 BENCHMATE ARM
15 004-299 BLOCK, BENCHMATE ARM
16 002-489 1/4-20 X 5/8 SHCS BLK
17 002-748 PIN, DRIV-LOK 1/8 X 5/8 N PHA
18 004-544 KNOB ASSY 3/8-24
19 004-086 MOUNTING PLATE STRAIGHT
20 004-080 BEVELED RETAINING BLOCK
21 002-217 #10-32 X 3/8 SHCS BLK
22 004-087 MOUNTING PLATE BEVELED
23 004-094 HAND REST
24 002-065 #10-32 X 3/8 RHMS Z/P
25 002-247 WASHER, .191 X .628 X 16 GA
26 002-743 3/8 - 24 X 1 1/4 HHB
27 002-515 5 WOOD SCREWS #6 X 1 5/8
28 004-177 BACKUP CHANNEL
900 Overlander Road • Emporia, KS 66801 USA
800-835-3519 • 620-343-1084 • Fax: 620-343-9640
hello@grs.com • www.grs.com
Last Update: 2019-10-03
