7.2.3 Operating limits
We recommend that you always keep the capacity of the booster
systems within the recommended flow rate and pressure range of
each individual pump.
Note that if there is a risk of exceeding the maximum inlet or outlet
pressure, we recommend that you install a safety valve.
BMS hs
Recommended flow rate at 25 °C (77 °F)
Type
[m
3
/h]
US [gpm]
BMS hs 7 5-15 22-66
BMS hs 18 6-40 17.6 - 176
BMS hs 30 7-75 31-330
BMS hs 46 11-110 48.2 - 482
BMS hs 60 12-120 53-530
Recommended pressure
Type
Inlet pressure
Outlet
pressure
Min.
[bar]
Min.
[psi]
Max.
[bar]
Max.
[psi]
Max.
[bar]
Max.
[psi]
BMS hs 7 1 14.5 20 290.1 82.7 1200
BMS hs 18 1 14.5 65 942 82.7 1200
BMS hs 30 1 14.5 65 942 82.7 1200
BMS hs 30 1 14.5 65 942 82.7 1200
BMS hs 46 1 14.5 65 942 82.7 1200
BMS hs 60 1 14.5 65 942 82.7 1200
BMS xl
Recommended flow rate at 25 °C (77 °F)
Type
[m
3
/h]
US [gpm]
BMS xl 125 22-220 97-969
BMS xl 160 28-280 123-1233
BMS xl 215 40-400 176-1761
Recommended pressure
Type
Inlet pressure
Outlet
pressure
Min.
[bar]
Min.
[psi]
Max.
[bar]
Max.
[psi]
Max.
[bar]
Max.
[psi]
BMS xl 125 1 14.5 30 435 82.7 1200
BMS xl 160 1 14.5 30 435 82.7 1200
BMS xl 215 1 14.5 30 435 82.7 1200
Related information
13.2 Sound pressure level, inlet pressure and liquid temperatures
7.3
BMS hp pump
7.3.1 Before startup
Follow these instructions to ensure correct startup of the BMS hp
pump.
WARNING
Description of hazard
Death or serious personal injury
‐ Make sure that the pump and the system are fully
vented before startup.
For type, amount and interval of greasing, see the
nameplate on the motor.
Check that the power supply is according to the nameplate.
1
2
3
4
5
6
7
8
9
11
12
10
TM061078

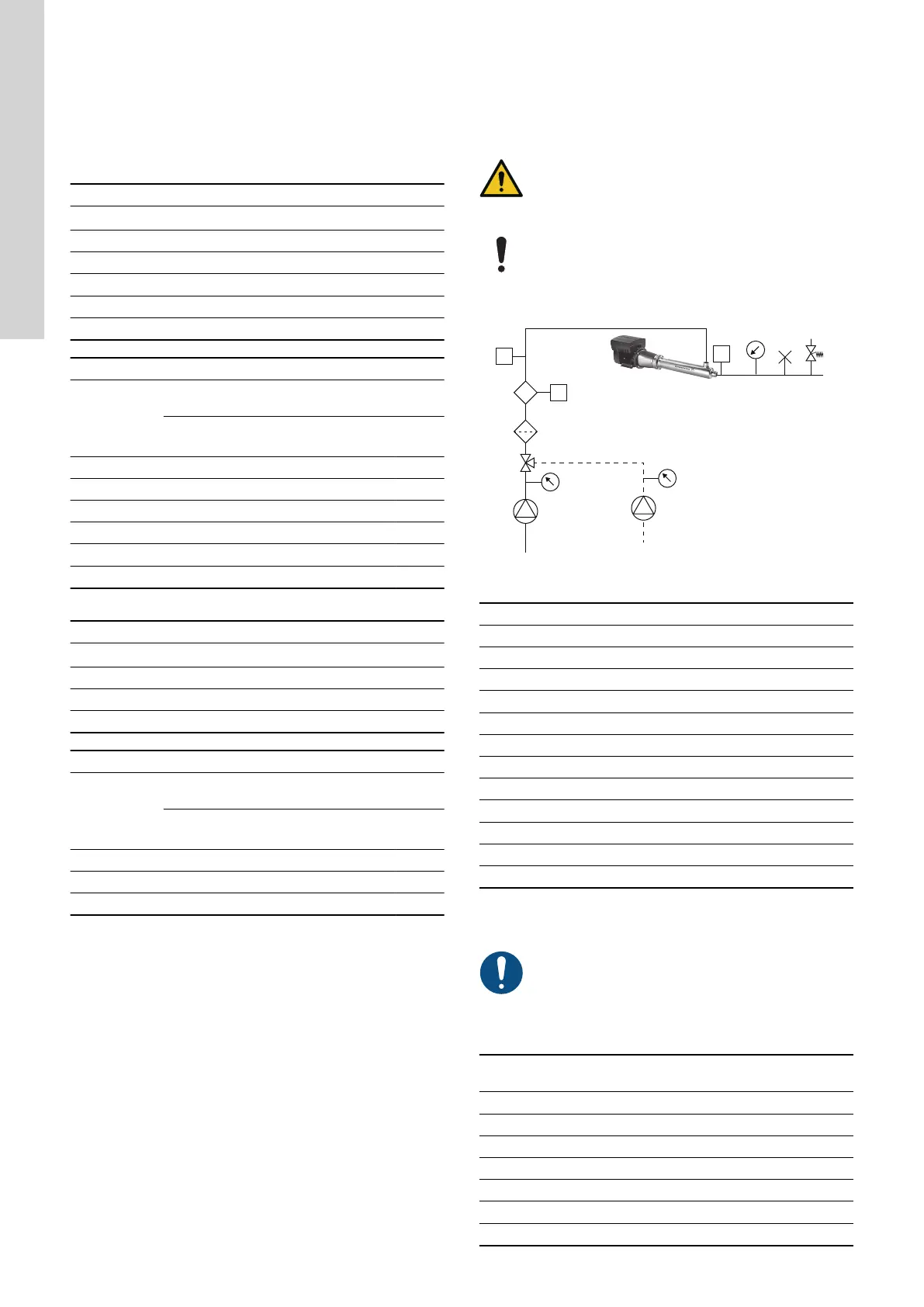

Example of a BMS hp pump
Pos. Description
1 Raw-water feed pump
2 Pressure gauge (raw water)
3 Filter
4 Low-pressure switch
5 Flowmeter
6 BMS hp pump
7 High-pressure switch
8 Pressure gauge (BMS hp outlet pressure)
9 Vent
10 Pressure-relief valve
11 Pressure gauge (fresh-water pump)
12 Fresh-water flush pump
3)
A fresh-water flush pump must be installed in systems for seawater
desalination or similar systems.
BMS hp pumps with the motor sizes mentioned below
must have lower inlet pressure during startup.
The motor sizes and maximum inlet pressure during startup can be
found below.
Maximum inlet pressure during startup
[bar]
MG motors size
3.0 kW 60
MGE motors size
3.0 kW 15
5.5 kW 30
7.5 kW 40
11.0 kW 55
