Grundfos SI 010 CNV - Connection of Supply Voltage and Sensor

English (GB)
14
4.2.1 Connection of supply voltage and sensor

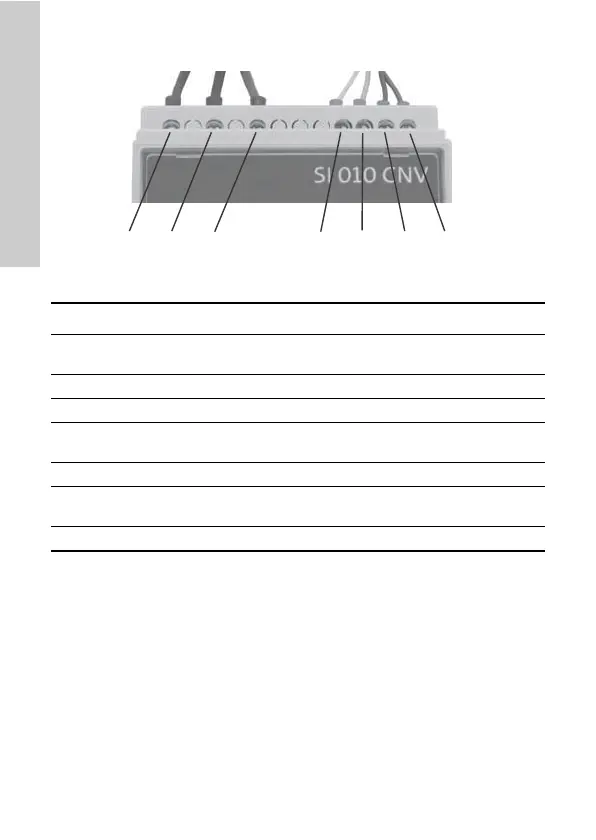

Fig. 10 Electrical connection, earthing and connection of control box
TM04 4891 2209
Terminal Description
13
Phase conductor 230/115 VAC (be sure to configure short-
circuit position ST5 if it is a 115 V supply).
15 Neutral
17 Protective earth conductor (PE)
21
Output 1 (4-20 mA or 2-10 V depending on the position of the
jumper in position ST1)
22 Earth
23
Output 2 (4-20 mA or 2-10 V depending on the position of the
jumper in position ST2)
24 Earth
13 15 17 21 22 23 24
