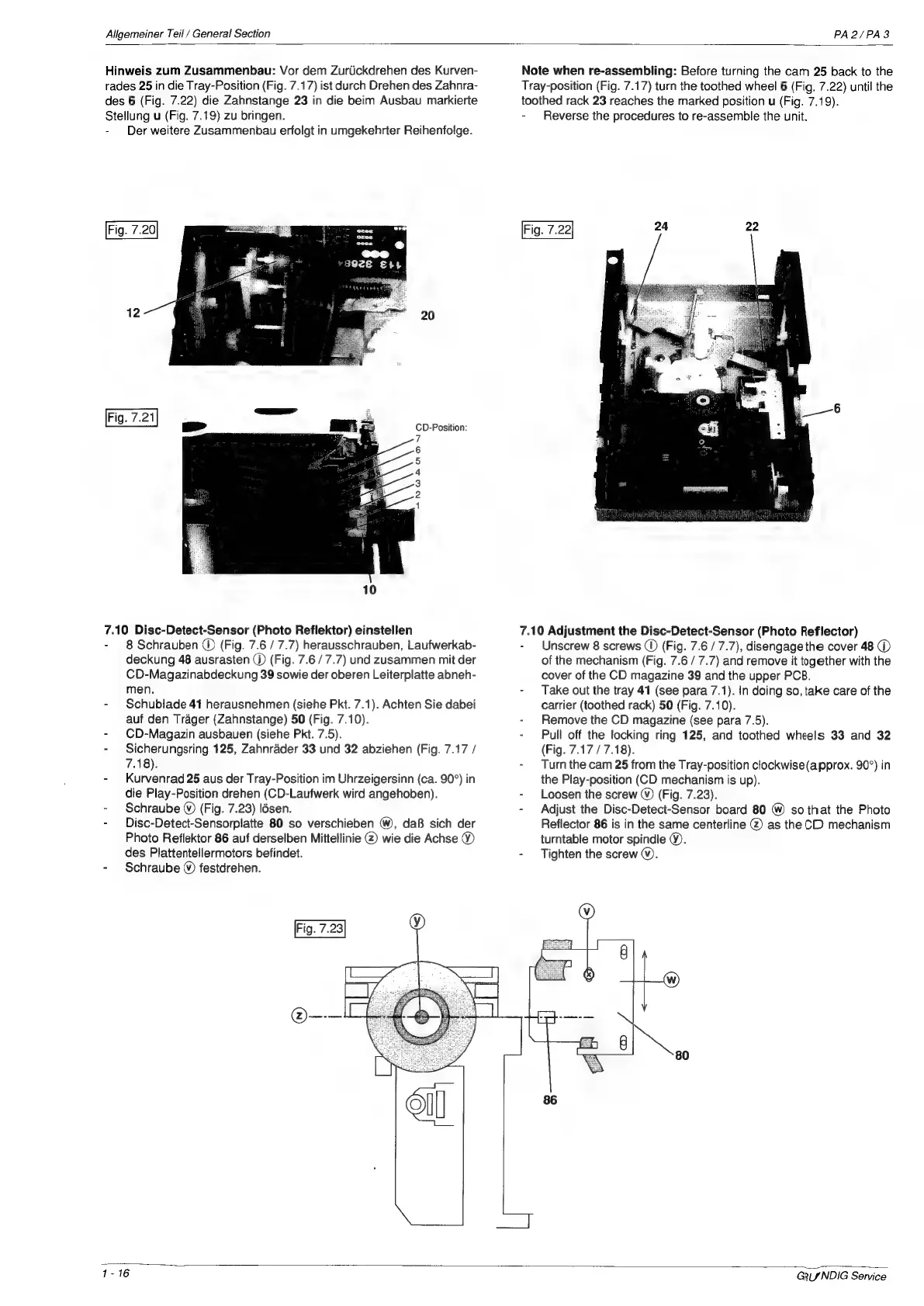

Allgemeiner
Teil
/
General
Section
PA
2/PA3
Hinweis
zum
Zusammenbau:
Vor
dem
Zuriickdrehen
des
Kurven-
rades
25
in
die
Tray-Position
(Fig.
7.17)
ist
durch
Drehen
des
Zahnra-
des
6
(Fig.
7.22)
die
Zahnstange
23
in
die
beim
Ausbau
markierte
Stellung
u
(Fig.
7.19)
zu
bringen.
Der
weitere
Zusammenbau
erfolgt
in
umgekehrter
Reihenfoige.
CD-Position:
10
7.10
Disc-Detect-Sensor
(Photo
Reflektor)
einstellen
-
8
Schrauben
@
(Fig.
7.6
/
7.7)
herausschrauben,
Laufwerkab-
deckung
48
ausrasten
@
(Fig.
7.6
/
7.7)
und
zusammen
mit
der
CD-Magazinabdeckung
39
sowie
der
oberen
Leiterplatte
abneh-
men.
-
Schublade
41
herausnehmen
(siehe
Pkt.
7.1).
Achten
Sie
dabei
auf
den
Trager
(Zahnstange)
50
(Fig.
7.10).
-
CD-Magazin
ausbauen
(siehe
Pkt.
7.5).
-
Sicherungsring
125,
Zahnrader
33
und
32
abziehen
(Fig.
7.17
/
7.18).
-
Kurvenrad
25
aus
der
Tray-Position
im
Uhrzeigersinn
(ca.
90°)
in
die
Play-Position
drehen
(CD-Laufwerk
wird
angehoben).
-
Schraube
©)
(Fig.
7.23)
lésen.
-
Disc-Detect-Sensorplatte
80
so
verschieben
W),
daB
sich
der
Reflektor
86
auf
derselben
Mittellinie
@
wie
die
Achse
Y)
Note
when
re-assembling:
Before
turning
the
cam
25
back
to
the
Tray-position
(Fig.
7.17)
turn
the
toothed
wheel
6
(Fig.
7.22)
until
the
toothed
rack
23
reaches
the
marked
position
u
(Fig.
7.19).
-
Reverse
the
procedures
to
re-assemble
the
unit.
Fig.
7.22
24
22
7.10
Adjustment
the
Disc-Detect-Sensor
(Photo
Reflector)
Unscrew
8
screws
(i)
(Fig.
7.6
/
7.7),
disengage
the
cover
48
of
the
mechanism
(Fig.
7.6
/
7.7)
and
remove
it
together
with
the
cover
of
the
CD
magazine
39
and
the
upper
PCB.
-
Take
out
the
tray
41
(see
para
7.1).
In
doing
so,
take
care
of
the
carrier
(toothed
rack)
50
(Fig.
7.10).
-
Remove
the
CD
magazine
(see
para
7.5).
-
Pull
off
the
locking
ring
125,
and
toothed
wheels
33
and
32
(Fig.
7.17
/
7.18).
-
Turn
the
cam
25
from
the
Tray-position
clockwise(approx.
90°)
in
the
Play-position
(CD
mechanism
is
up).
-
Loosen
the
screw
®)
(Fig.
7.23).
-
Adjust
the
Disc-Detect-Sensor
board
80
@)
so
that
the
Reflector
86
is
in
the
same
centerline
@
as
the
CD
mechanism
turntable
motor
spindle
Y).
des
Plattentellermotors
befindet.
-
Tighten
the
screw
().
-
Schraube
/)
festdrehen.
Fig.
7.23
