On the right side of the window, measurements are shown in real time.
At the bottom a table of alarms detected by the RF system is shown. By clicking on an alarm of the
list, a window with detailed information will be open.
5.2.- Constellation -Option 902511 only for RCS100 and RCS400-

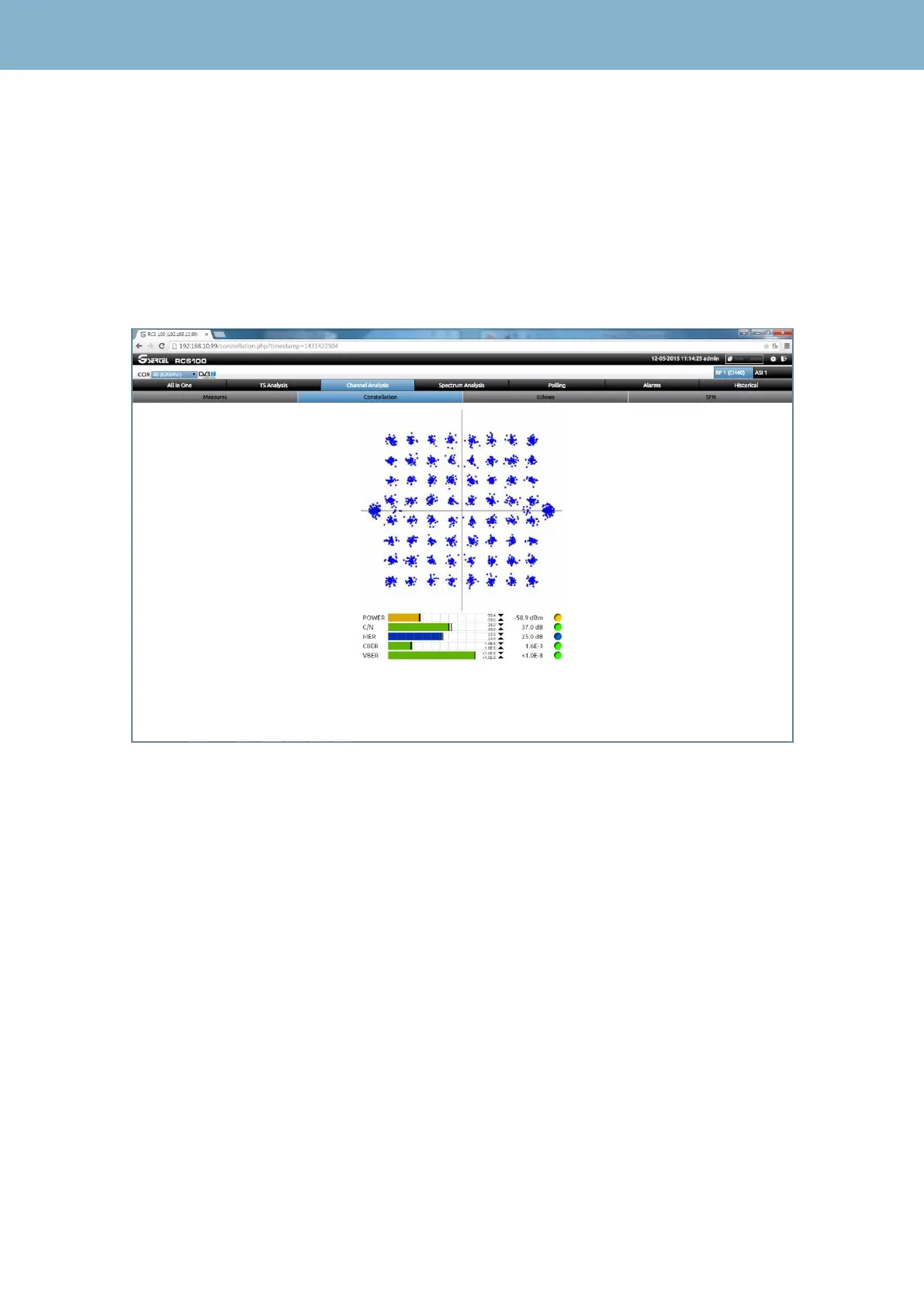

This feature shows the constellation of the RF signal. Bellow the constellation, the RF
measurements are shown in real time.
The measurements shown are: Power, C/N, MER, CBER, VBER, Left shoulder, Right shoulder and
Frequency offset (opt. 902529).
The colors of the bars are related to the alarms thresholds.
Circles colors match the color of the worst alarm generated during the period of time that has been
measured.
To check the configuration of the alarms, see section 1.5.1.- Alarms Profiles.
