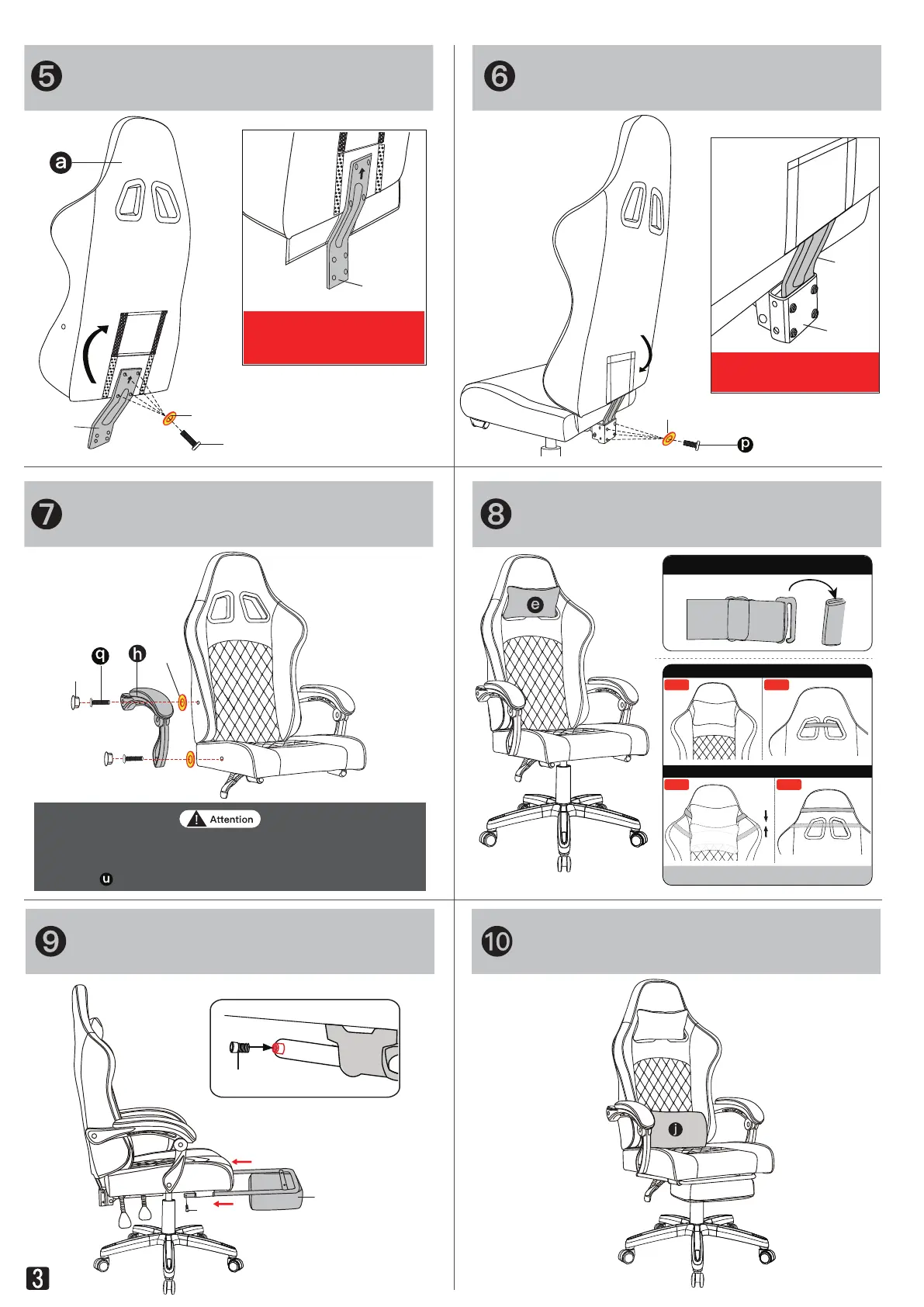

GTPLAYER LR002 - Backrest and Armrest Installation; Final Assembly Steps

Install the armrests.
M8*20
󹆢
M8*40
󹆱
󹆱
󹆰
󹆴
Attach the headrest to the backrest.
Install the footrest.
Put the lumbar pillow on the backrest.
Complete.
󹆵
M6*30
Install the connector on the chair back.
Install the connector into the rear end
of mechanism.
DO NOT tighten the screws completely until all the
screws are fixed in the correct position. Put the
washer between the armrest and chair body.
UP
Down
Method 1
Method 2
* Length-adjustable belt
The belt can be adjusted up or down as needed.
Front Back
Front Back
󹆢
󹆞
Note: Connector 󹆢 INTO
mechanism 󹆞.
＊Notethatthedirection
oftheconnector.
󹆢
󹆟
󱤠
�
M5*8
