Guardian HML-05 - Page 2

Page 2Rev. 021820
1-888-651-3431

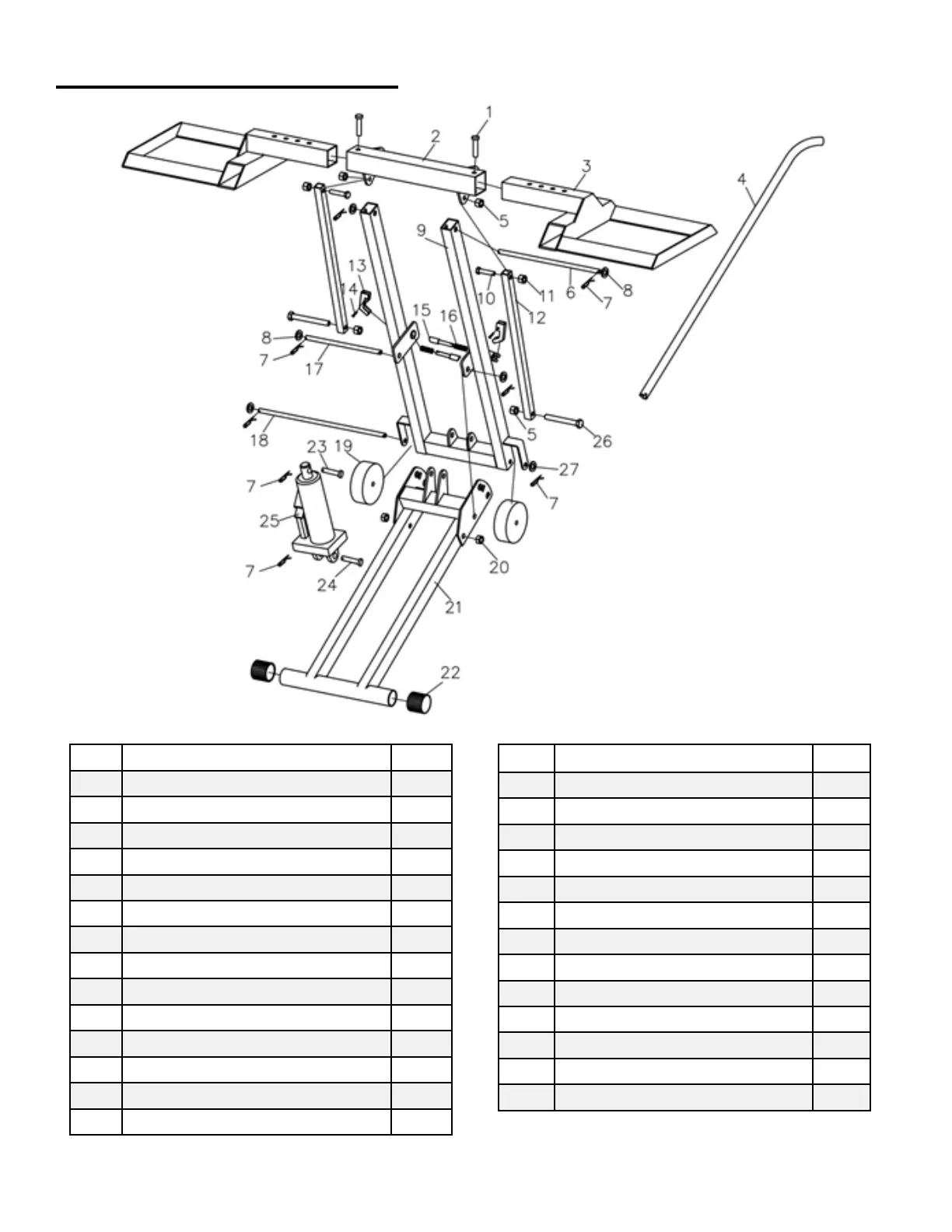

Diagram & Parts List
NO. Description QTY.
1 Cradle Lock Pin M10x55 2
2 Top Frame 1
3 Cradle 2
4 Handle 1
5 Lock Nut M10 4
6 Top Axle 1
7 R-Pin 1.5mm 8
8 M12 Washer 4
9 Lift Arm 1
10 Hex Bolt M10x50 2
11 Hex Nut M10 2
12 Side Rod 2
13 Brake Puller 2
14 Rivet M4x18 2
NO. Description QTY.
15 Brake Pin 2
16 Spring 2
17 Medium Axle 1
18 Bottom Axle 1
19 Caster 2
20 Hex Nut M10 Small 2
21 Bottom Frame 1
22 Front Cap 2
23 Cylinder Pin M12x40 1
24 Jack Base Pin M12x60 1
25 Hydraulic Jack 1
26 Hex Bolt M10x80 2
27 M10 Washer 2
