Guardian ZTML-552 - Page 3

Page 3052224 1-888-651-3431
Part Description Qty.
1 Handle sleeve 2
2 Handle 1
3 Hex Screw 8*50 3
4 Washer 12 16
5 Nut M12 12
6 Rubber Plug 2
7 Stand Post 1
8 Hex Screw 12*55 6
9 Bolt 1
10 Safety Pin 2
11 Ring *12 2
12 Hex Screw 12*90 2
13 Washer 8 3
14 Castor D: 6“ 2
15 Hex Screw 12*70 2

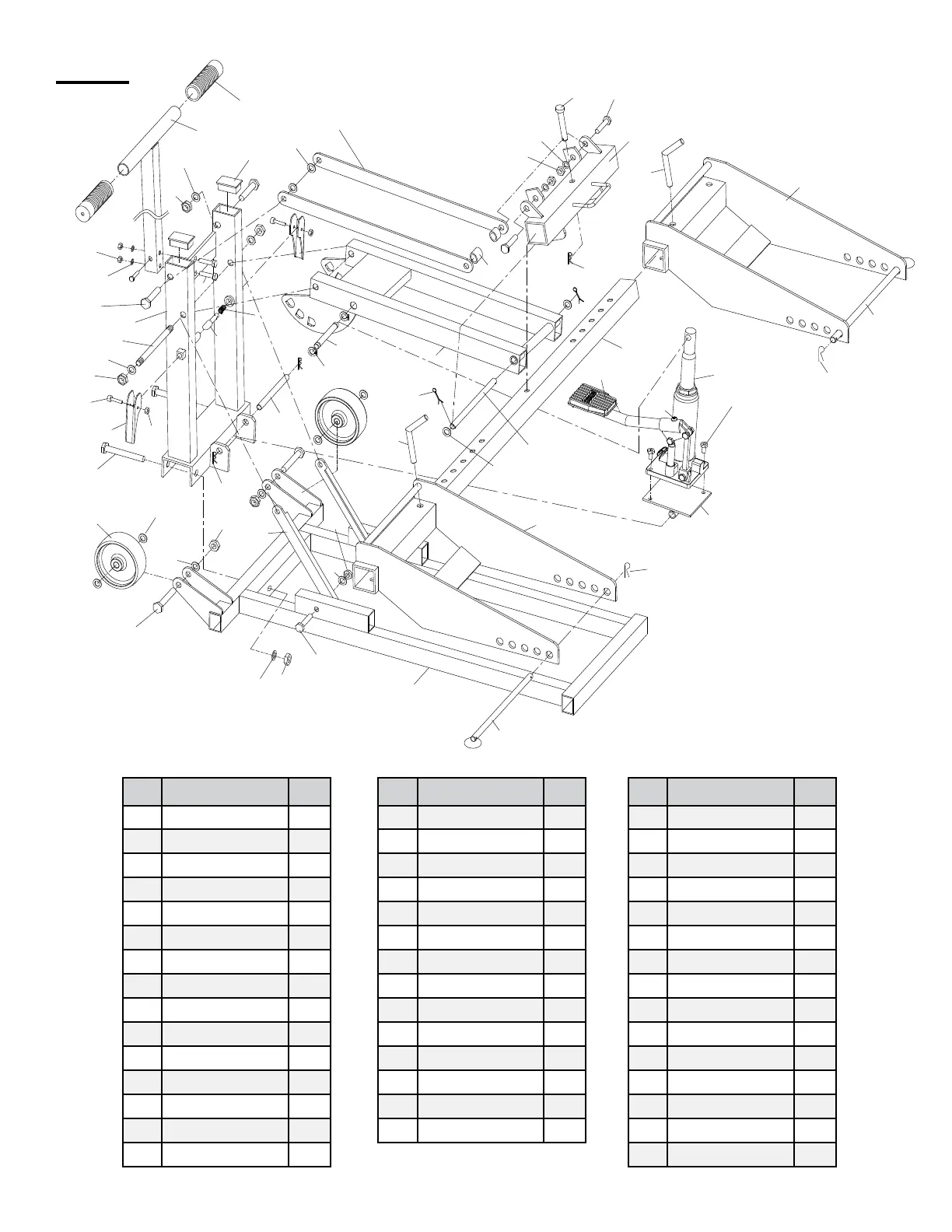

PARTS
15
8
17
19
40
38
37
36
35
34
33
31
4
30
28
27
3
2
1
5
6
7
8
9
10
12
14
4
5
5
4
24
25
26
22
23
32
29
39
33
41
42
43
11
20
18
20
21
21
31
4
5
4
13
16
4
5
8
4
5
44
4
Part Description Qty.
16 Tube 1
17 Base Frame 1
18 Pin 1
19 Support 2
20 Connecting Pin 2
21 "R" Pin 2
22 Foot Pedal 1
23 Screw M8*12 1
24 Jack 1
25 Hex Screw 8*14 2
26 Plate 1
27 Support Arm 1
28 Support Arm 2
29 Connect Shaft 1
Part Description Qty.
30 Pin 2.5 2
31 Flat Pin 3
32 Fixing Pin 1
33 Pin 2
34 Spring 2
35 M8 Nut 3
36 Left Tray 1
37 Support Arm 1
38 Tube 1
39 Right Tray 1
40 Release Lever 2
41 M4 Screw 2
42 M4 Nut 2
43 Pin 1
44 Thick Washer 12 4
