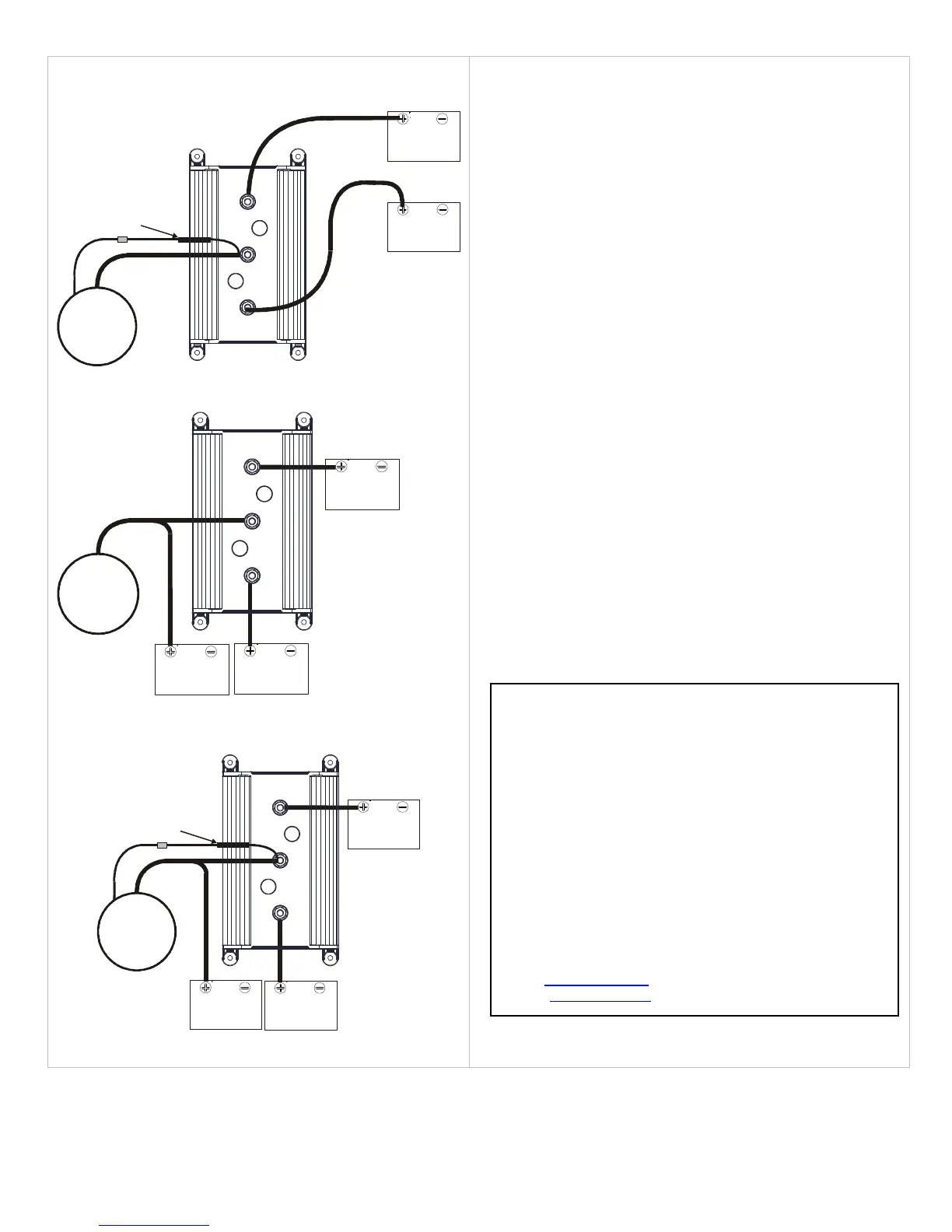

Typical Wiring Configuration (continued)
Diagram2 – Alternator to Battery Isolator with R-Kit
Battery
Main
Alternator
120A Max
+
R
R-KIT
Guest P/N U-3059
Diagram 3 – Alternator to Battery Isolator with additional battery
Battery
Battery
Alternator
120A Max
+
Battery
Diagram 4 – Alternator to Battery Isolator with R-Kit and additional
battery
Battery
Battery
Alternator
70A Max
+
R
R-KIT
Guest P/N U-3059
Battery
Battery Isolator Testing
1. Remove all wire connections from the isolator.
2. Setup a digital multi-meter (DMM) in the diode test mode.
3. Connect the red probe from the DMM to the alternator input (A)
and the black probe from the DMM to the battery output terminal
to be tested. A good isolator connection will show a reading of 0.4
to 0.6VDC.
4. Connect the DMM black probe to the alternator input (A) and the
red probe to the battery output terminal to be tested. A good
isolator connection will show a reading of OL.
5. Repeat steps 3 and 4 for the other battery output terminals.
Maintaining the Battery Isolator
Periodically clean both battery and isolator terminals with baking soda and
tighten all connections. No other maintenance on the isolator is required.
LIMITED WARRANTY
For two (2) years from the date of original purchase, The Guest Co.
will, at its discretion, repair or replace for the original consumer, free of
charge, any parts found defective in material or workmanship.
Proof of purchase is required: A computerized register receipt is
required. Hand-written receipts are not accepted for warranty proof of
purchase. In the absence of a receipt, warranty period will be
calculated from date of manufacture printed or stamped on the
product.
There is no other expressed warranty. Implied warranties, including
those of merchantability and fitness for a particular purpose, are
limited to two years from the date of purchase. This is the exclusive
remedy and consequential damages are excluded where permitted by
law.
Tel: 707-226-9600
Fax:707-226-9670
e-mail: info@marinco.com
website: www.marinco.com
730863 Rev A
