9
2610A Connections
Model
Output
Volts
Output
Amps
Banks
DC Cable
Size
Size (inches)
L x W x H
Input Volts
Input
Amps Max
2610A
12 5/5 2 N/A 4.25 x 7 x 2.42
115VAC
50/60Hz
2.5 Amps

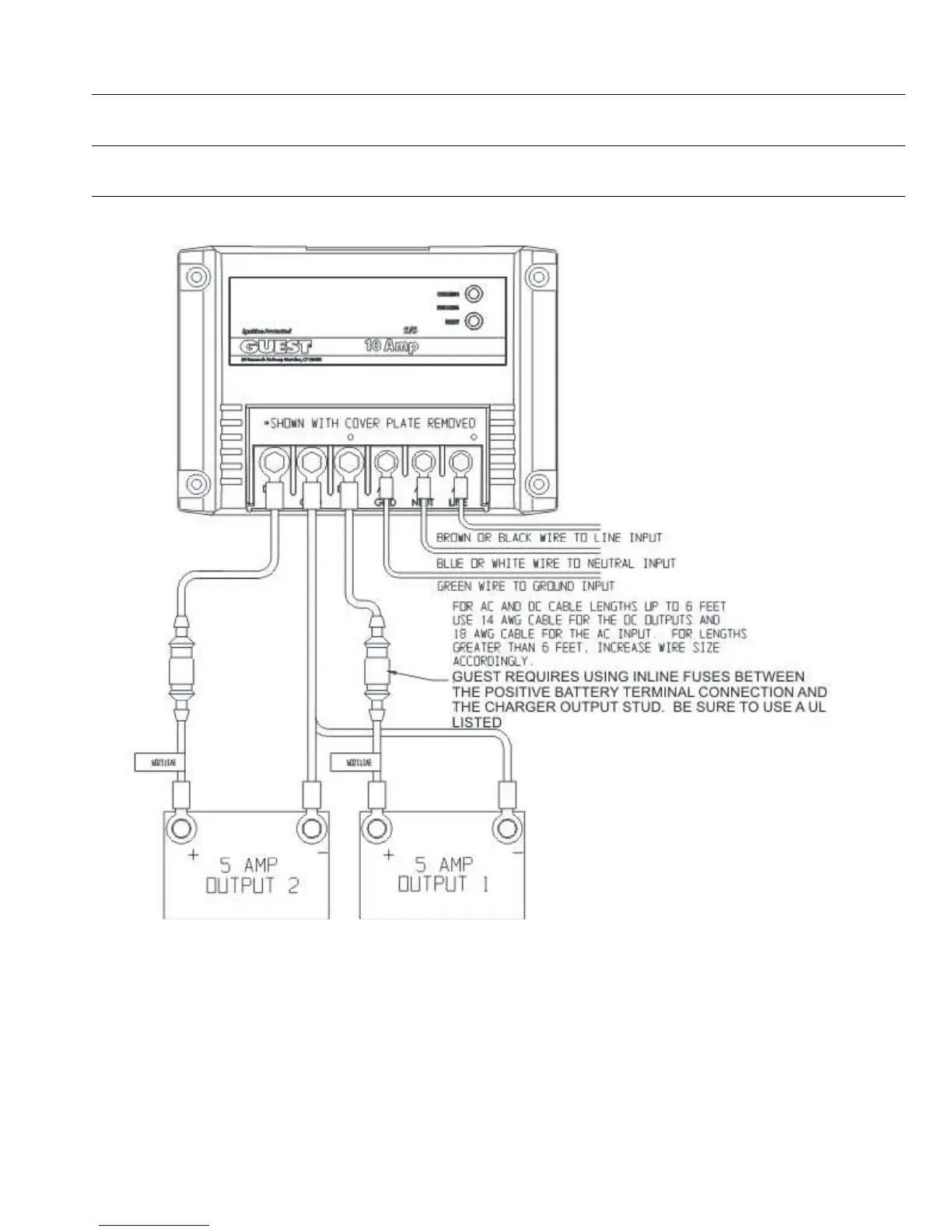

Diagram 6: 2610A (5/5 Amps) used with 2 12V Batteries
2610A Connections: The 2610A can be used on 2 12 volt independent batteries.
It may NOT be used for a 24 Volt system, the outputs may NOT be wired in
series. The 2610A may be used to charge one single battery. When doing
this, a 12 Gauge jumper wire must be added between output posts DC +
#1 and DC + #2. See diagram below.
14 or 15 AMP FUSE FOR EACH CUTPUT.
