Section 3

3-58

Notes:

1. For 4 terminal measurement; adjust Rc2 lead compensation for null across P1’s and

then short P1’s together.

2. For 2 terminal measurement; C and P terminals are combined as 1 terminal, and lead

compensation is optional.

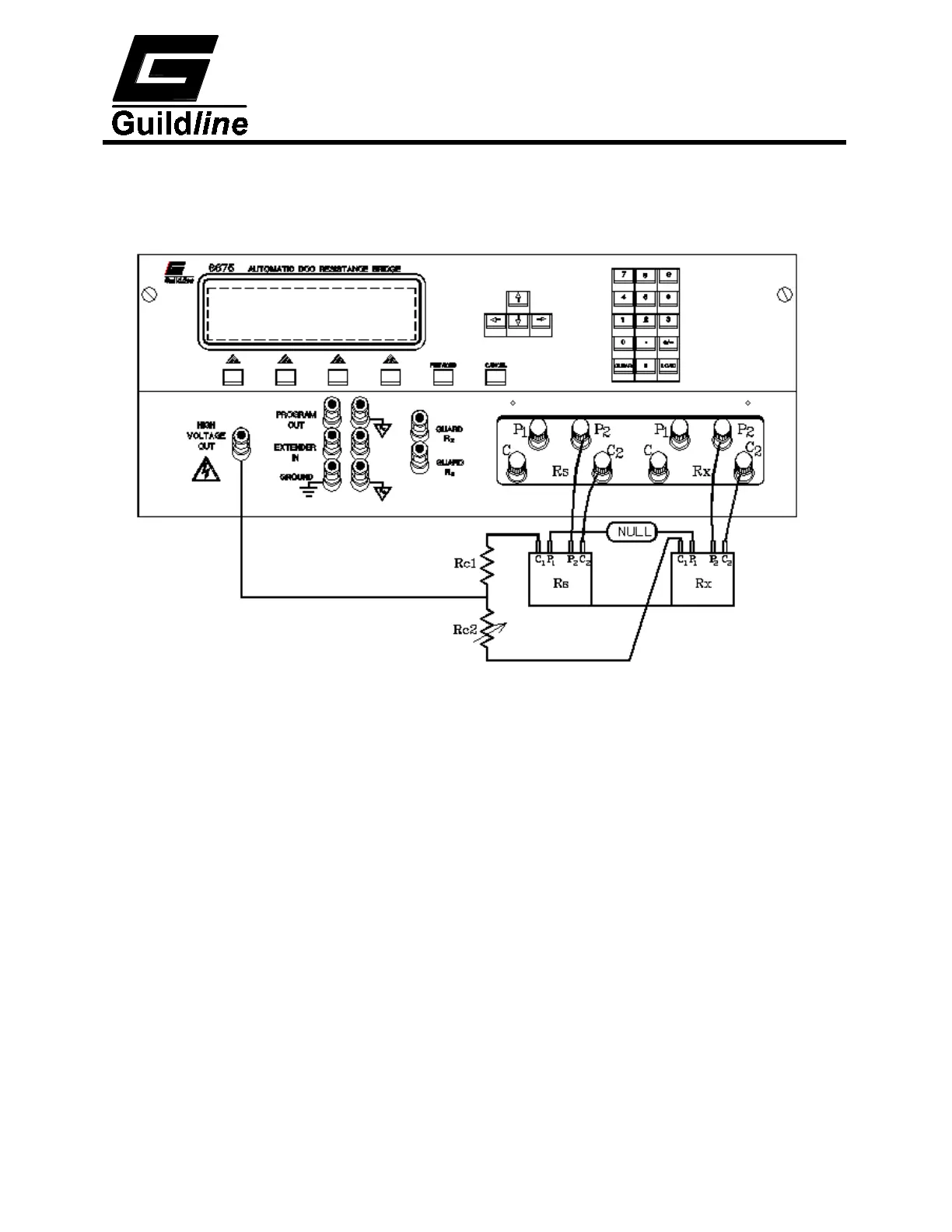

Figure 3-7 : Front Panel Connections High Ohms - Internal HV Supply
